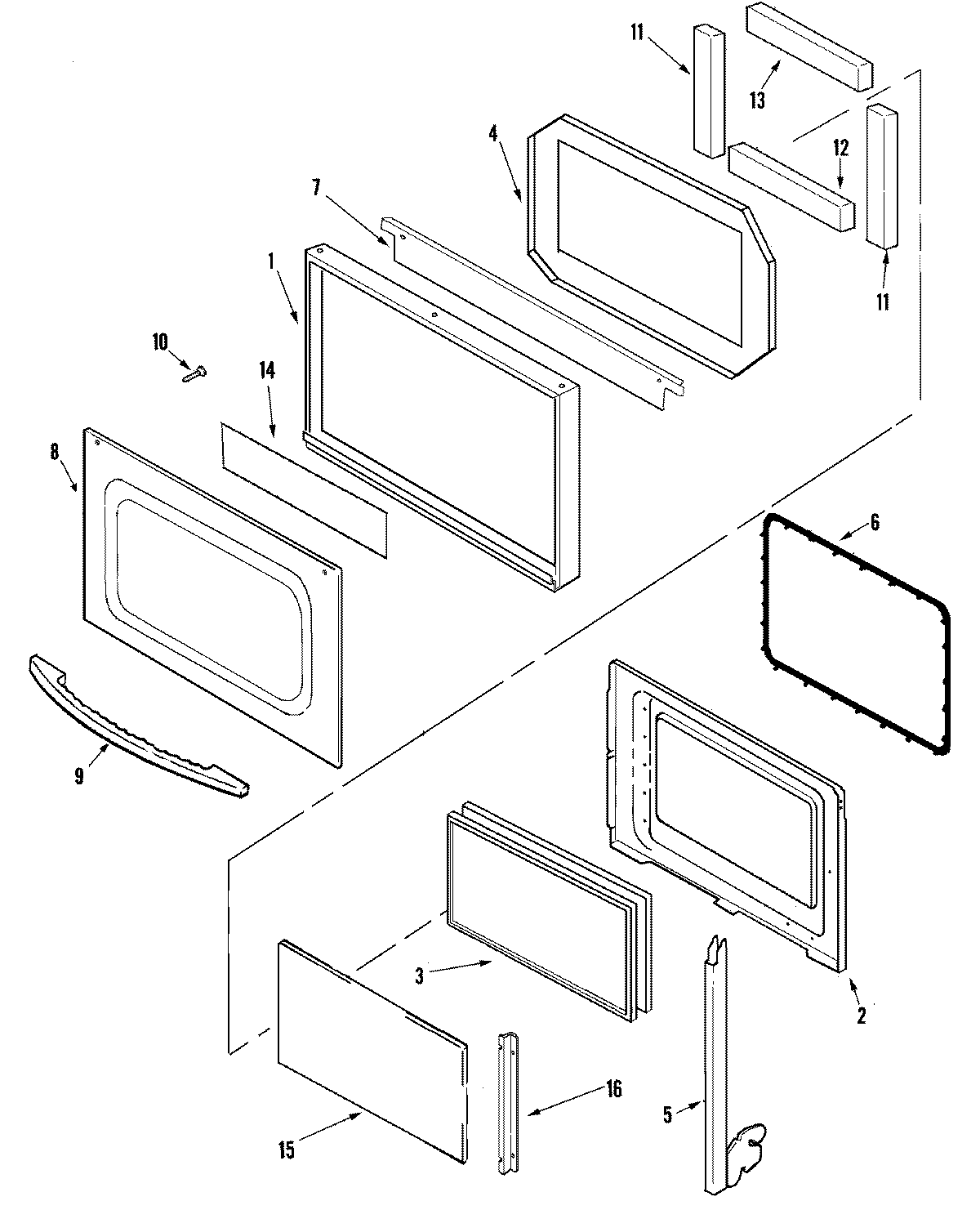

AEW4530DDW 03 – DOOR

AEW4530DDW 03 – DOOR

Written by

in

AEW4530DDW 03 – DOOR

Products

PositionProduct
1MAY 71001827
1MAY 74006752
2MAY 74005642
3MAY 74005641
4MAY 74005648
5WP74008014 Whirlpool Range Oven Door Hinge
5WP98008544 Whirlpool Screw Assembly
6WP71001841 Whirlpool Door Seal
7MAY 74008284
7WP999367 Whirlpool Refrigerator Screw
8MAY 74008325
9MAY 8010P073-60
9HANDLE, DOOR (WHT)
10MAY 74008302
10WP74005233 Whirlpool Screw
1174008285 Whirlpool Oven Door Insulation (Side)
1274008286 Whirlpool Oven Door Insulation (Bottom)
1374008287 Whirlpool Oven Door Top Insulation
14MAY 74008288
15MAY 74008336
16MAY 74003650
16WP90767 Whirlpool Screw
