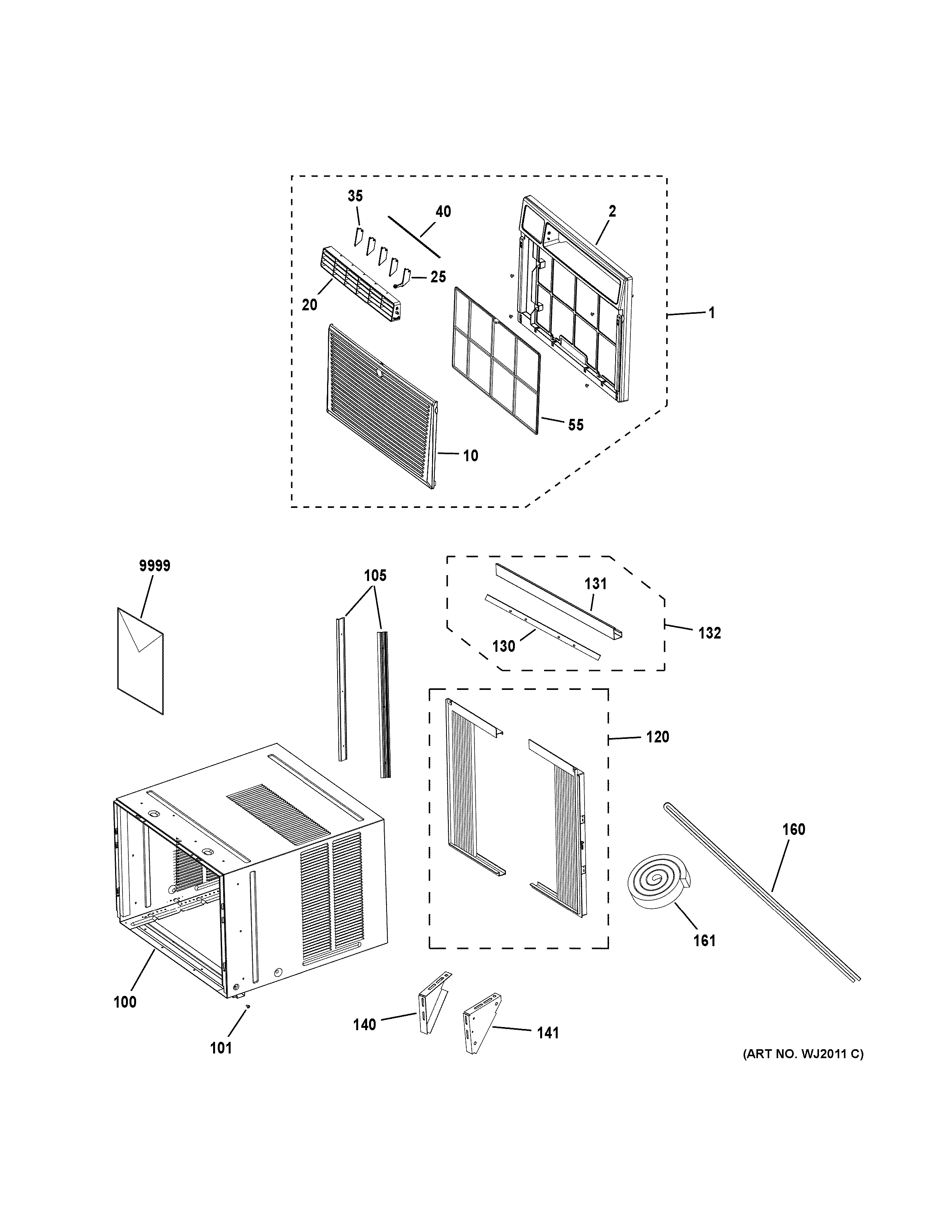

AEZ18DPQ1 GRILLE & CHASSIS PARTS

AEZ18DPQ1 GRILLE & CHASSIS PARTS

Written by

in

AEZ18DPQ1 GRILLE & CHASSIS PARTS

Products

PositionProduct
1WJ82X10071 GE Front Panel Assembly
2FRONT CASE
10AIR INTAKE PANEL
20AIR GUIDE FRAME
25AIR LOUVER1
35WJ71X10719 GE Air Louver
40LINK VERTICAL LOUVER
55WJ71X10668 GE Air Conditioner Filter Assembly
100WJ90X10126 GE Cabinet Assembly
101SELF-TAPPING SCREW
105WJ68X10065 GE Cabinet Support
120WJ69X10018 GE Air Conditioner Curtain Assembly
130WJ43X10078 GE Top Rail Gasket
131WJ65X21244 GE Air Conditioner Top Guide
132WJ14X10087 GE Air Conditioner Top Guide Assembly
140WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
141WJ67X10003 GE Right Side Case Mount Bracket
160WJ43X10080 GE Window Seal Sash
161WJ43X10079 GE Window Top Foam Gasket
9999WJ01X10376 GE Room Air Conditnr Installation
9999MINI MANUAL
9999PM OWNERS MANUAL/INSTAL
