AF812DMW1 1 – Aparts

AF812DMW1 1

Products

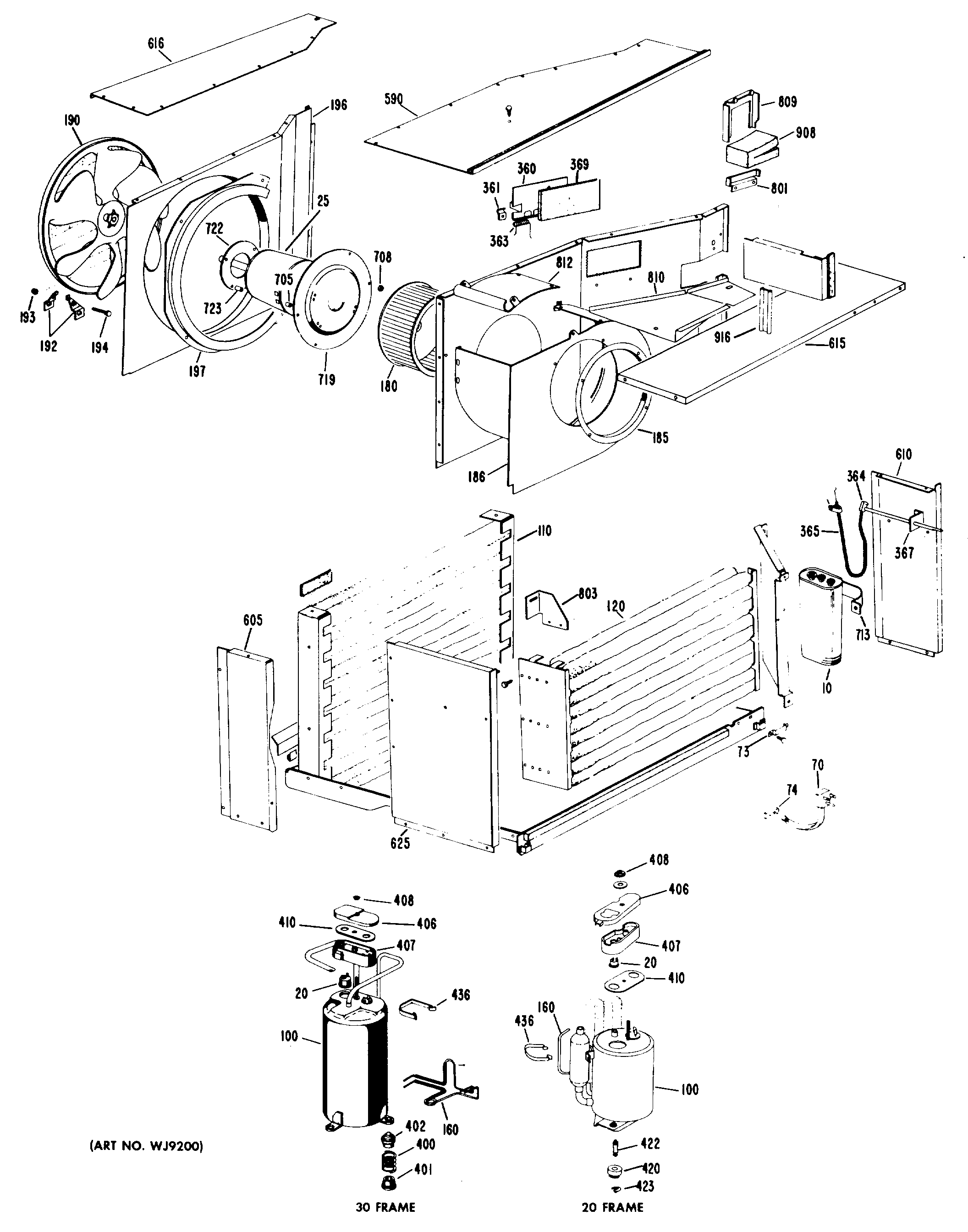

Position	Product
10	CAPACITOR, FAN/RUN
20	GEN WJ23X0088
25	GEN WJ94X0513
70	GEN WJ35X0102
73	CLAMP POWER CORD
74	GROMMET CORD POWER
100	GEN WJ98X0463
110	GEN WJ88X0128
120	GEN WJ87X0197
160	CAPILLARY .049 CUT-25"
160	CAPILLARY .036 CUT TO 14
180	INDOOR BLOWER
186	GEN WJ76X0231
190	GEN WJ73X0043
196	GEN WJ76X0236
197	BAFFLE
360	GEN WJ70X0283
360	GEN WJ70X0166
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	GEN WJ14X0096
365	GEN WJ14X0095
406	TERMINAL CAP
407	TERMINAL COVER
408	GEN WJ01X0292
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
590	GEN WJ79X0232
610	GEN WJ81X0065
615	GEN WJ79X0348
616	GEN WJ79X0286
625	GEN WJ82X0065
708	GEN WJ01X0445
713	GEN WJ03X0294
801	PLATE
809	TUBE SEAL CLAMP
810	COVER EVAPORATOR
916	SPACER
