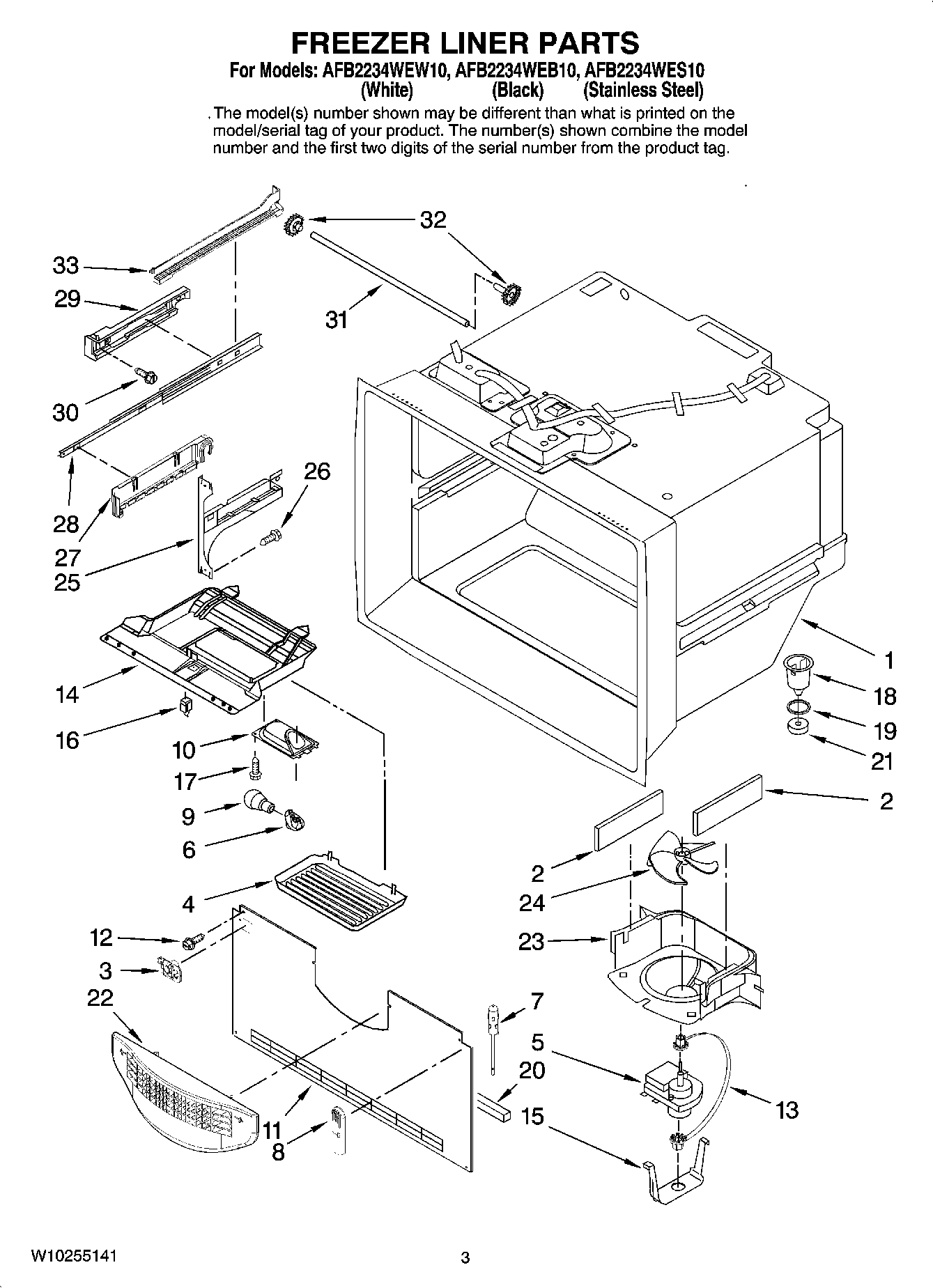

AFB2234WEB10 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 67006095
2	Gasket, Bottom
3	MAY 67005874
4	MAY 67003905
5	MAY W10128551
6	Socket, Light (2)
7	12002355 Whirlpool Refrigerator Thermistor Kit
8	WP67003924 Whirlpool Refrigerator Cover
9	MAY W10194422
10	MAY 67001035
11	MAY 67005872
12	Screw (10)
13	MAY W10121318
14	67003906 Whirlpool Refrigerator Control Module
15	CLIP, EVAP. MOTOR
16	MAY 67005653
17	MAY 67006530
18	MAY D7753903
19	MAY M0500703
20	MAY A3189395
21	Gasket
22	MAY W10175909
23	SHROUD, EVAP FAN
24	Blade, Fan (Evaporator)
25	BRACKET, DOOR (LEFT)
25	BRACKET, DOOR (RIGHT)
26	Screw (8)
27	Bracket, Basket (Right)
27	Bracket, Basket (Left)
28	MAY W10120018
29	MAY W10149390
29	MAY W10149391
30	Screw (6)
31	MAY 12812905WD
32	MAY W10158749
32	MAY W10146446
33	RAIL, SIDE (LEFT HAND)
33	RAIL, SIDE (RIGHT HAND)
