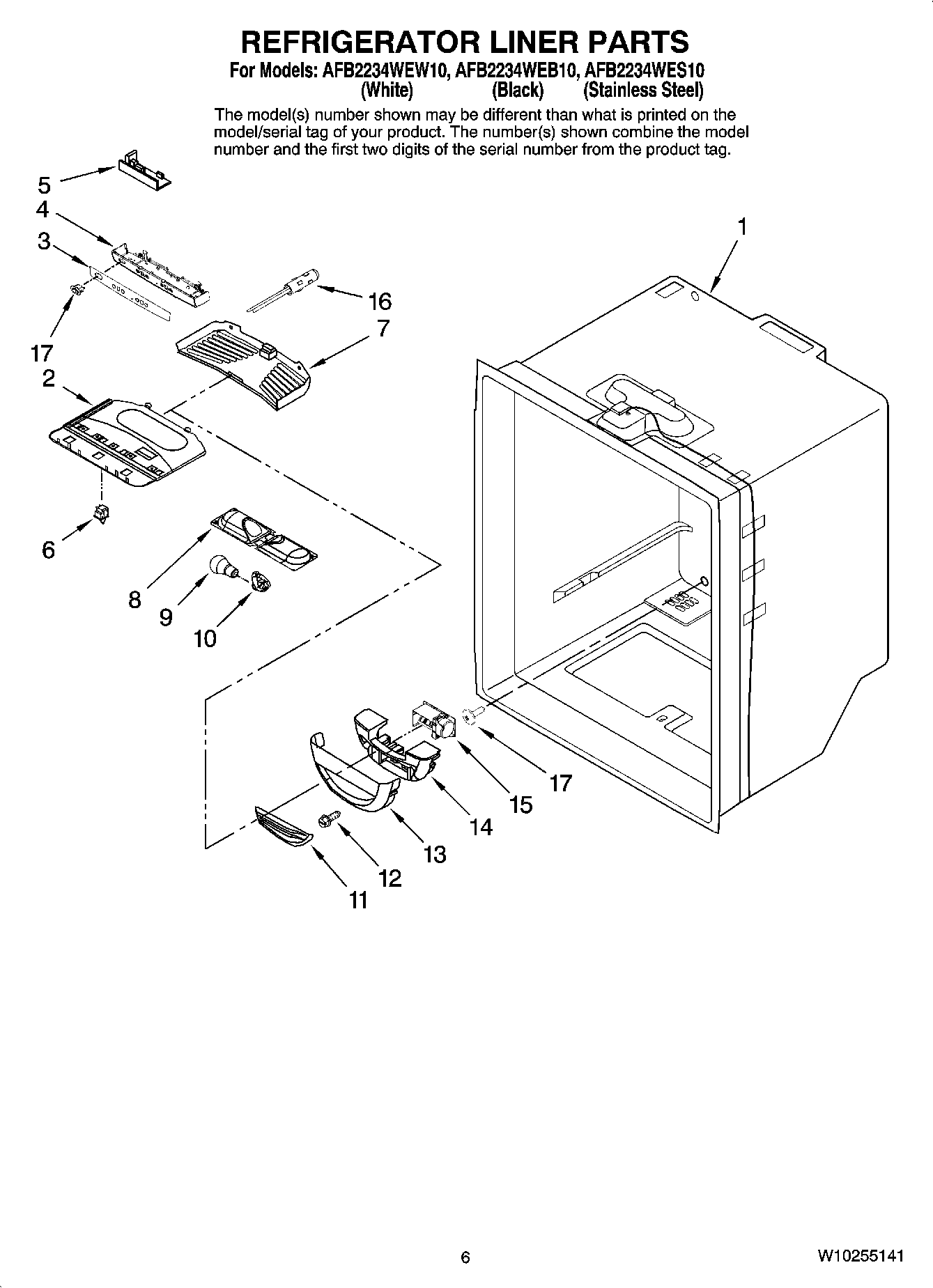

AFB2234WEB10 04 – REFRIGERATOR LINER PARTS

AFB2234WEB10 04 – REFRIGERATOR LINER PARTS

Written by

in

AFB2234WEB10 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIMAY W10216622
2MAY W10203323
3MAY 67004695
4MAY 12806407
5Board, Control
6W11291138 Whirlpool Refrigerator Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9MAY W10194422
10Socket, Light (2)
1167003900 Whirlpool Refrigerator Insert Damper Cover
12MAY 67006602
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15DAMPER, CONTROL
1612002355 Whirlpool Refrigerator Thermistor Kit
17W11478401 Whirlpool Refrigerator Housing
