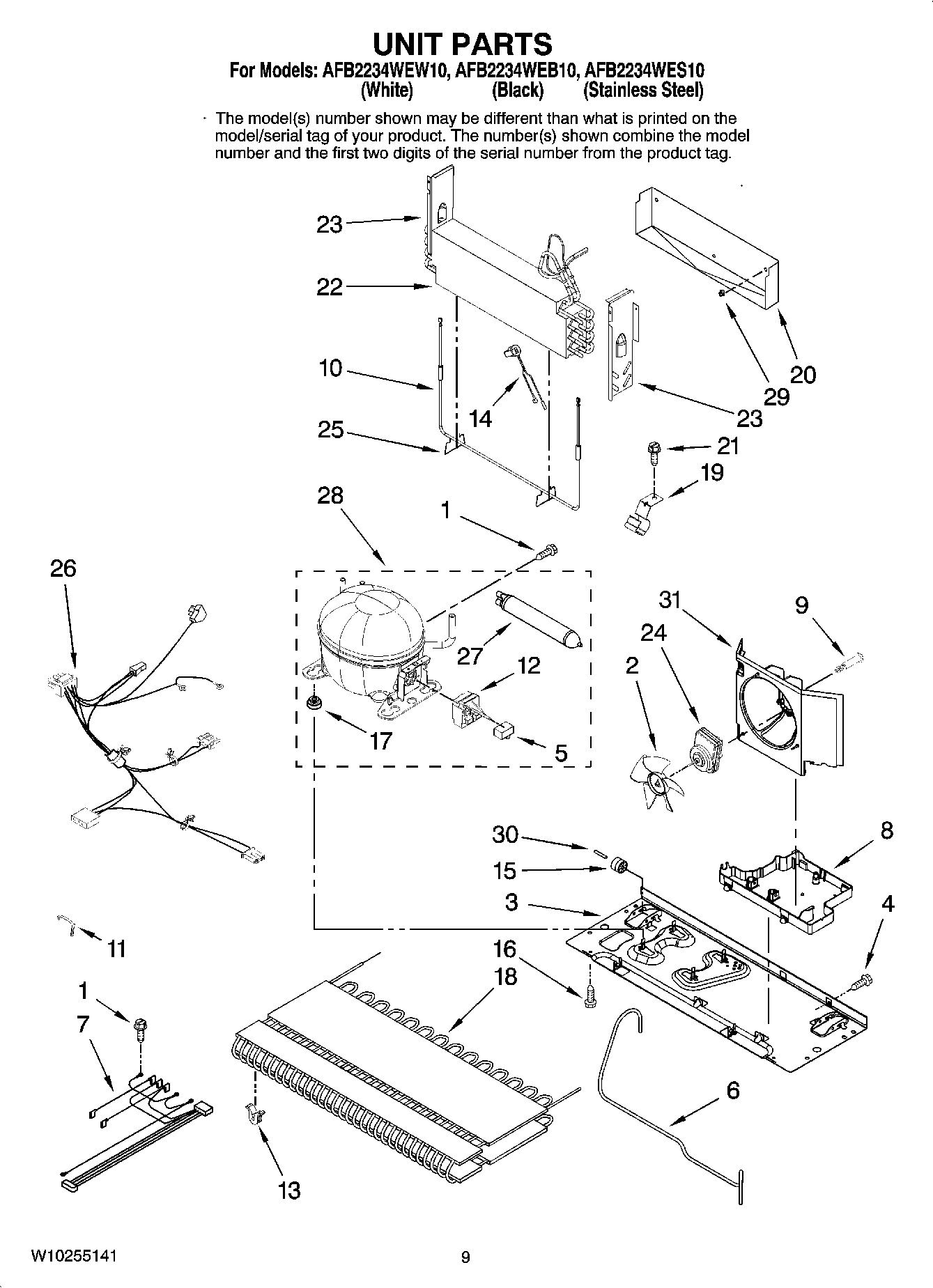

AFB2234WEB10 06 – UNIT PARTSadmin2025-04-26T09:22:00+00:00AFB2234WEB10 06 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | MAY 876764 |
| 1 | MAY 67006433 |
| 2 | MAY 12825803 |
| 3 | MAY W10210983 |
| 4 | Screw (10) |
| 5 | Capacitator (Production) |
| 6 | MAY W10217748 |
| 7 | MAY W10224241 |
| 8 | Drain Pan |
| 9 | MAY W10216919 |
| 10 | MAY 12729128 |
| 11 | MAY W10174384 |
| 12 | START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY) |
| 13 | GROMMET, COND (4) |
| 14 | Thermostat |
| 15 | WP67005149 Whirlpool Roller |
| 16 | Screw (4) |
| 17 | Grommet (Production) |
| 18 | MAY W10135027 |
| 19 | MAY 10547003 |
| 20 | TRAY, DRIP E-CT |
| 21 | SCREW |
| 22 | 12001919 Whirlpool Refrigerator Evaporator Replacement Kit |
| 23 | DAM (LEFT SIDE) |
| 23 | Dam (Right Side) |
| 24 | MAY 67004432 |
| 25 | W11673433 Whirlpool Clip |
| 26 | HARNESS, UNIT (INCLUDES POWER CORD) |
| 27 | Drier |
| 28 | MAY W10164016 |
| 29 | MAY 10623002 |
| 30 | 67006434 Whirlpool Axle Pin |
| 31 | SHROUD |
