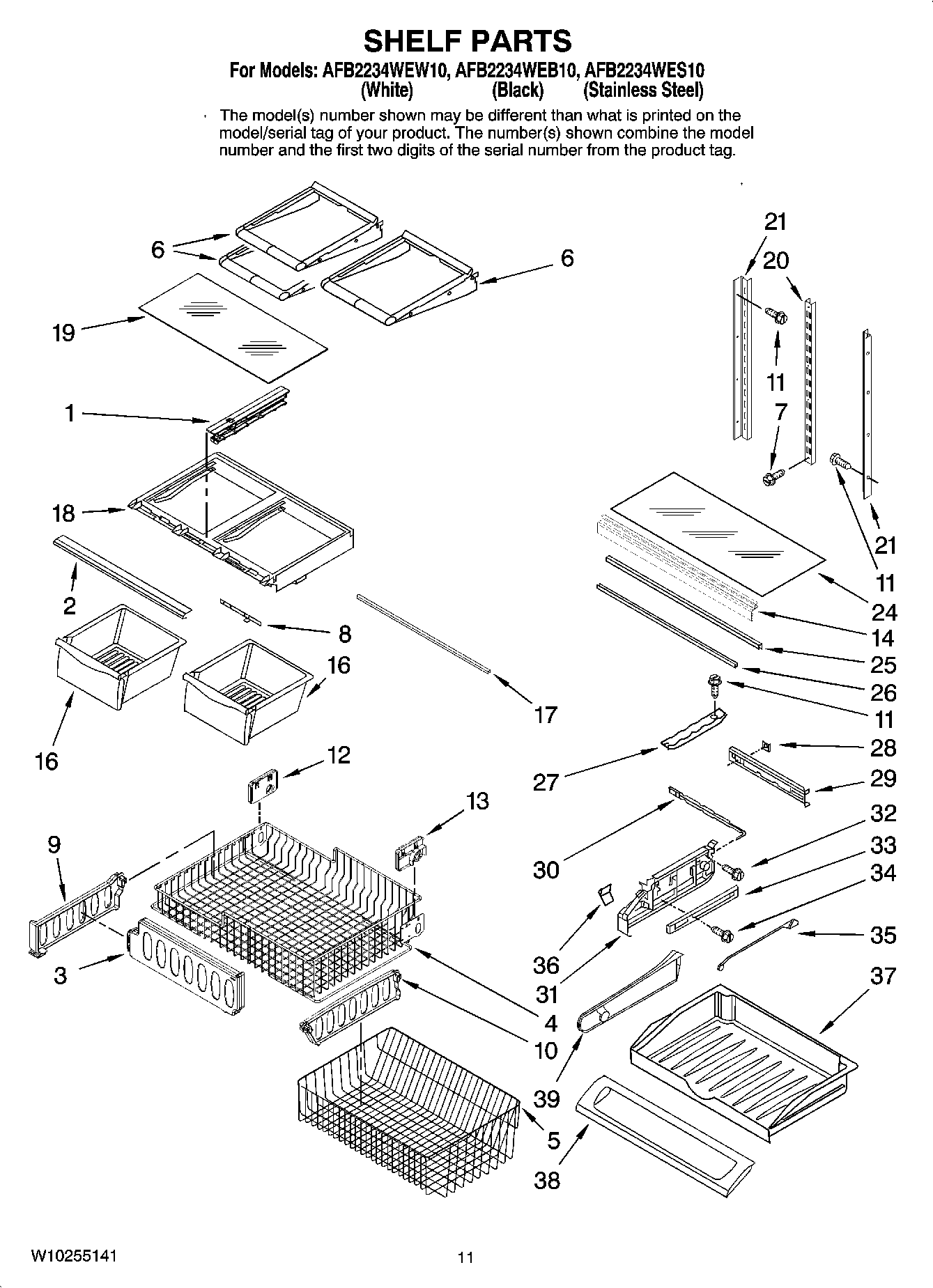

AFB2234WEB10 07 – SHELF PARTSadmin2025-04-26T09:22:10+00:00AFB2234WEB10 07 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | RAIL-CENTR CRISPER |
| 2 | TRIM, CRISPER |
| 3 | DIVIDER-UPPER FZ |
| 4 | MAY W10169950 |
| 5 | MAY W10150038 |
| 6 | MAY 12463509 |
| 7 | W10709795 Whirlpool Refrigerator Screw |
| 8 | MAY 67005864 |
| 9 | Divider, Upper Basket |
| 10 | MAY W10205416 |
| 11 | MAY 67006400 |
| 12 | MAY W10233898 |
| 13 | MAY W10233899 |
| 14 | MAY W10165872 |
| 16 | WP67002633 Whirlpool Crisper Pan |
| 17 | BRACE, CRISPER FRAME |
| 18 | FRONT, CRISPER PAN |
| 19 | WP67006878 Whirlpool Refrigerator Crisper Glass |
| 20 | 67001073 Whirlpool Refrigerator Center Ladder |
| 21 | LADDER, SIDES |
| 24 | MAY 12204820 |
| 25 | Extr, Glass Support (1) |
| 26 | MAY 12227301WD |
| 27 | WP67001719 Whirlpool Refrigerator Track |
| 28 | MAY W10165873 |
| 29 | MAY W10165876 |
| 30 | Slide, Temperature |
| 31 | MAY W10166677 |
| 31 | MAY W10165883 |
| 32 | WP98165 Whirlpool Screw |
| 33 | Glide, Drawer(2) |
| 34 | Screw (2) |
| 35 | Rod, Temperature Control |
| 36 | W11498983 Whirlpool Refrigerator Knob |
| 37 | MAY W10165911 |
| 38 | Door, Pantry Drawer |
| 39 | Divider, Pantry Drawer |
