AFB2234WEB2 07 – SHELF PARTS – Aparts

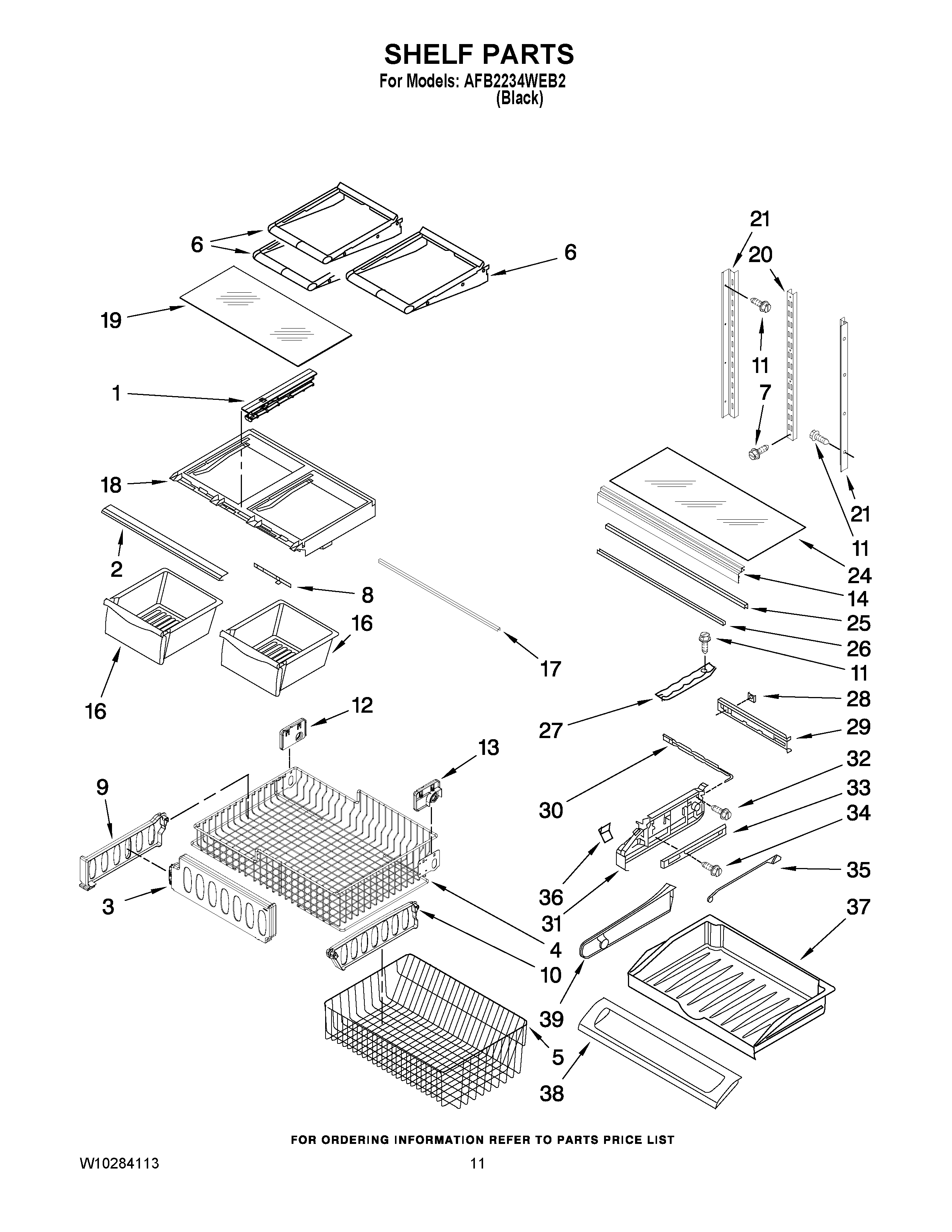

AFB2234WEB2 07 – SHELF PARTS

Products

Position	Product
1	Rail, Center Crisper
2	TRIM, CRISPER
3	DIVIDER-UPPER FZ
4	MAY W10169950
5	MAY W10150038
6	MAY 12463509
7	MAY 12990515
8	MAY 12530805SP
9	Divider, Upper Basket
10	MAY W10205416
11	MAY 12990513
12	MAY W10233898
13	MAY W10233899
14	MAY 13048801
16	PAN, CRISPER (2)
17	BRACE, CRISPER FRAME
18	MAY 12802302
19	MAY 12204822
20	MAY 12435807
21	MAY 12710602
24	MAY 12204820
25	MAY 12655903
26	MAY 12227301WD
27	TRACK, PANTRY
28	MAY 12656902
29	MAY 13048301
30	MAY 13048401
31	MAY 13047801
31	MAY 13047701
32	MAY 12990504
33	MAY 13058101V
34	SCREW (2)
35	MAY 13048201
36	MAY 12655204V
37	MAY 13048501SP
38	MAY 12656820
39	MAY 13048601SP
