AFB2234WEB4 01 – CABINET PARTS – Aparts

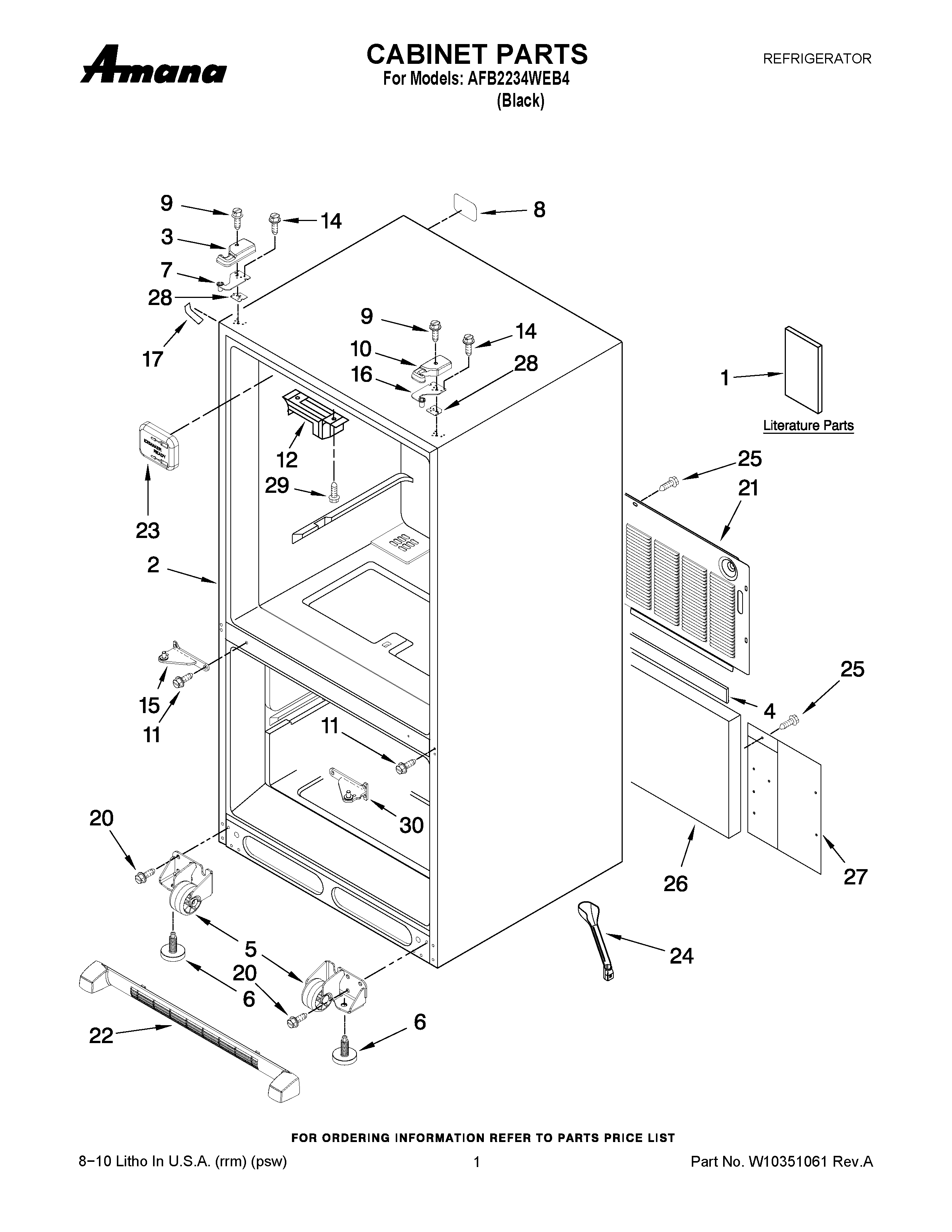

AFB2234WEB4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10260550
1	MAY W10208785
1	MAY W10322959
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12962301B
4	MAY B5759655
5	ROLLER ASSY. (FRONT) (LEFT)
5	ROLLER ASSY. (FRONT) (RIGHT)
6	Brake, Foot
7	MAY 12963204ED
8	LABEL-FILL TUBE
9	MAY 12992602
10	MAY 12962302B
11	MAY 12990101
12	Block, Pivot
14	SCREW (6)
15	HINGE, CENTER (BLACK, LEFT)
16	MAY 12963205ED
17	COVER, CORNER (BLACK)
20	Screw (8)
21	MAY W10210979
22	MAY W10236196
23	COVER-FILL TUBE
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
28	MAY 12999502
28	MAY 12999501
29	SCREW
30	HINGE, CENTER (BLACK, RIGHT )
