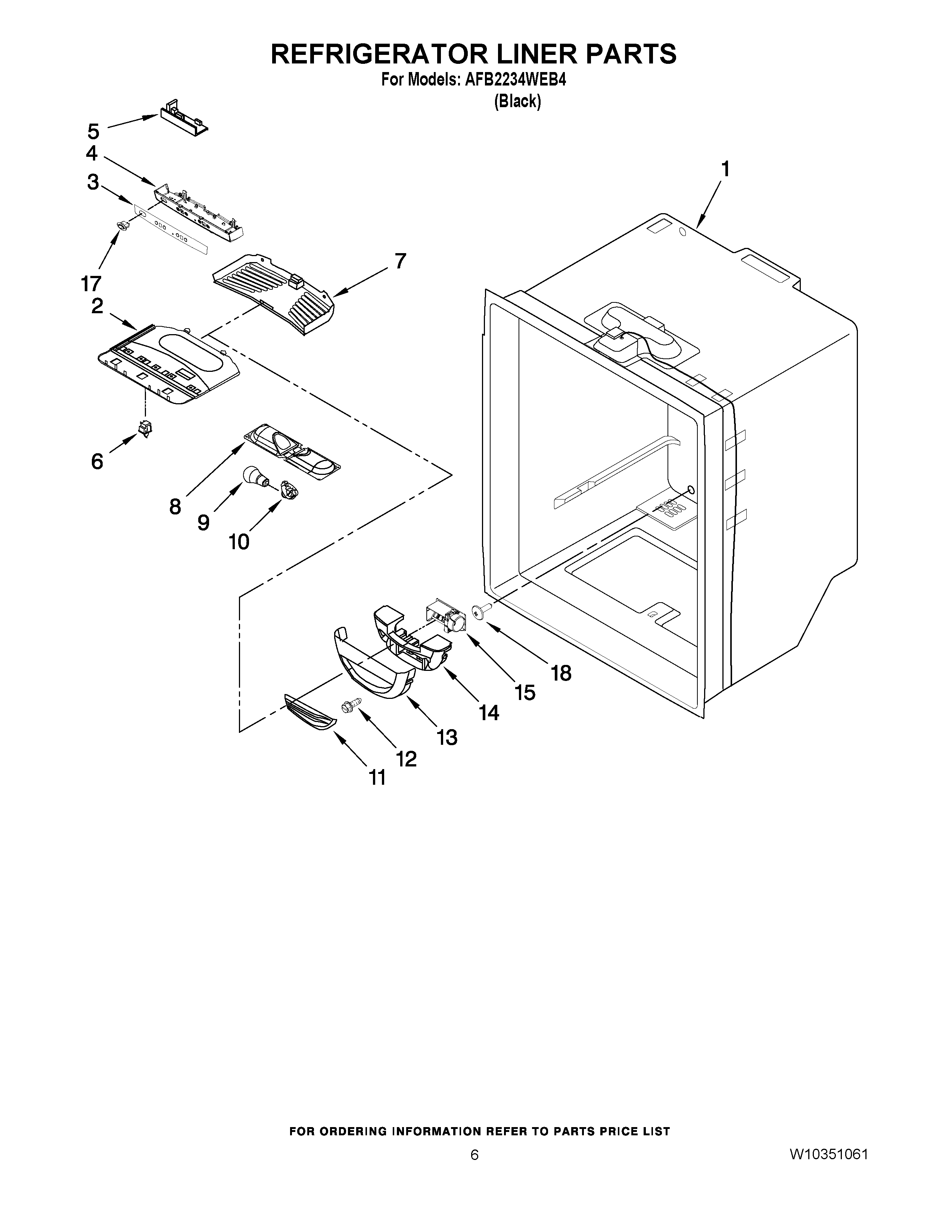

AFB2234WEB4 04 – REFRIGERATOR LINER PARTS

Written by

Products

Position	Product
NI	MAY W10216622
1	LINER (NOT A SERVICEABLE PART)
2	MAY 12806303
3	MAY W10317181
4	MAY 12806407
5	MAY 12784415V
6	W11291138 Whirlpool Refrigerator Door Switch
7	MAY 12806501
8	MAY 12806601V
9	BULB, LIGHT (2)
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	DAMPER, CONTROL
17	MAY 12861601
18	PLUG, BUTTON
