AFB2234WES3 01 – CABINET PARTS

AFB2234WES3 01 – CABINET PARTS

Written by

in

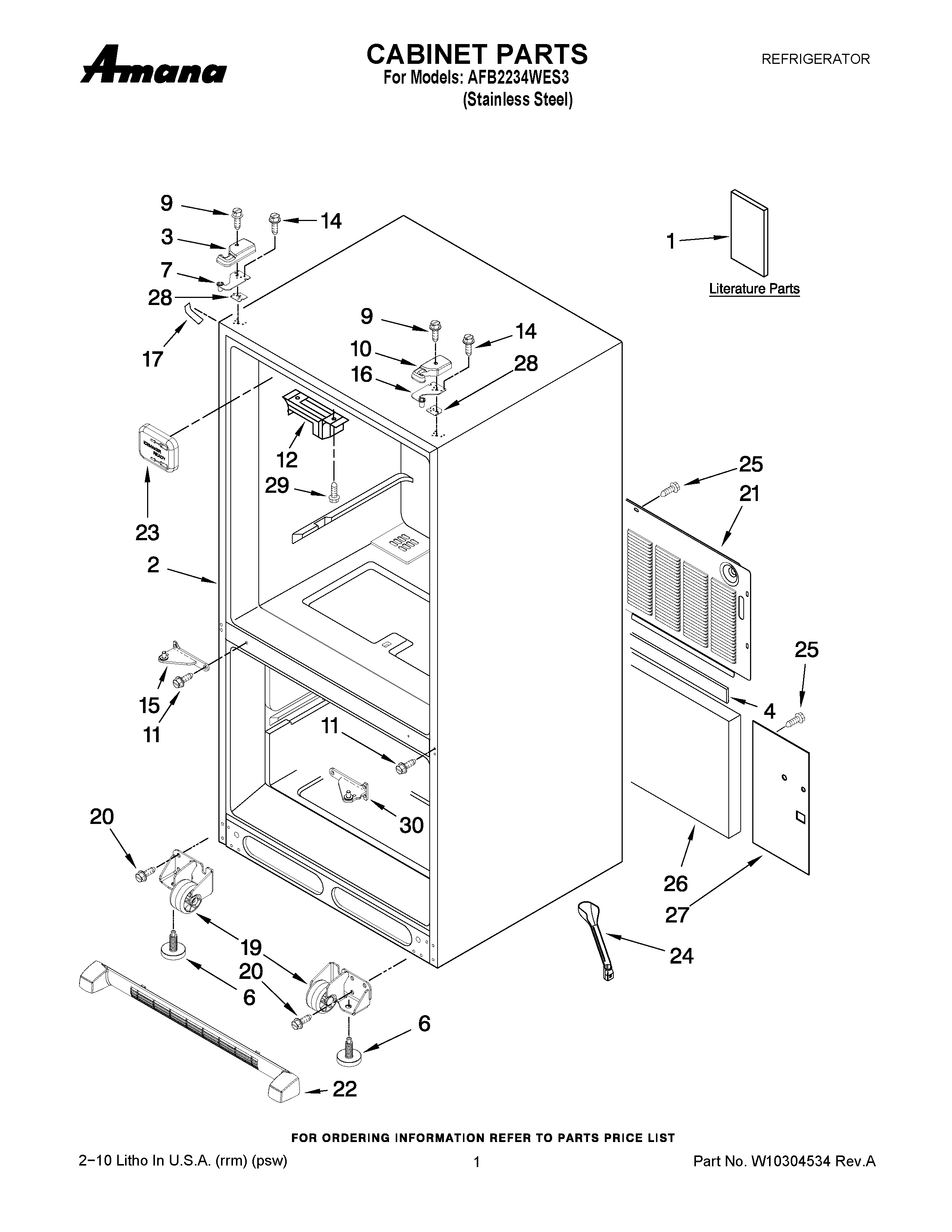

AFB2234WES3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10260550
1MAY W10175445
1MAY W10279337
2LINER (NOT A SERVICEABLE PART)
3MAY 12962301B
4MAY B5759655
6Brake, Foot
7MAY 12963204ED
9MAY 12992602
10MAY 12962302B
11MAY 12990101
12Block, Pivot
14SCREW (6)
15HINGE, CENTER (BLACK, LEFT)
16MAY 12963205ED
17COVER, CORNER (BLACK)
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY W10210979
22MAY W10236196
23COVER-FILL TUBE
24MAY W10210988
25SCREW (10)
26Insulation, Sound
27MAY W10217701
28MAY 12999502
28MAY 12999501
29SCREW (2)
30HINGE, CENTER (BLACK, RIGHT )
