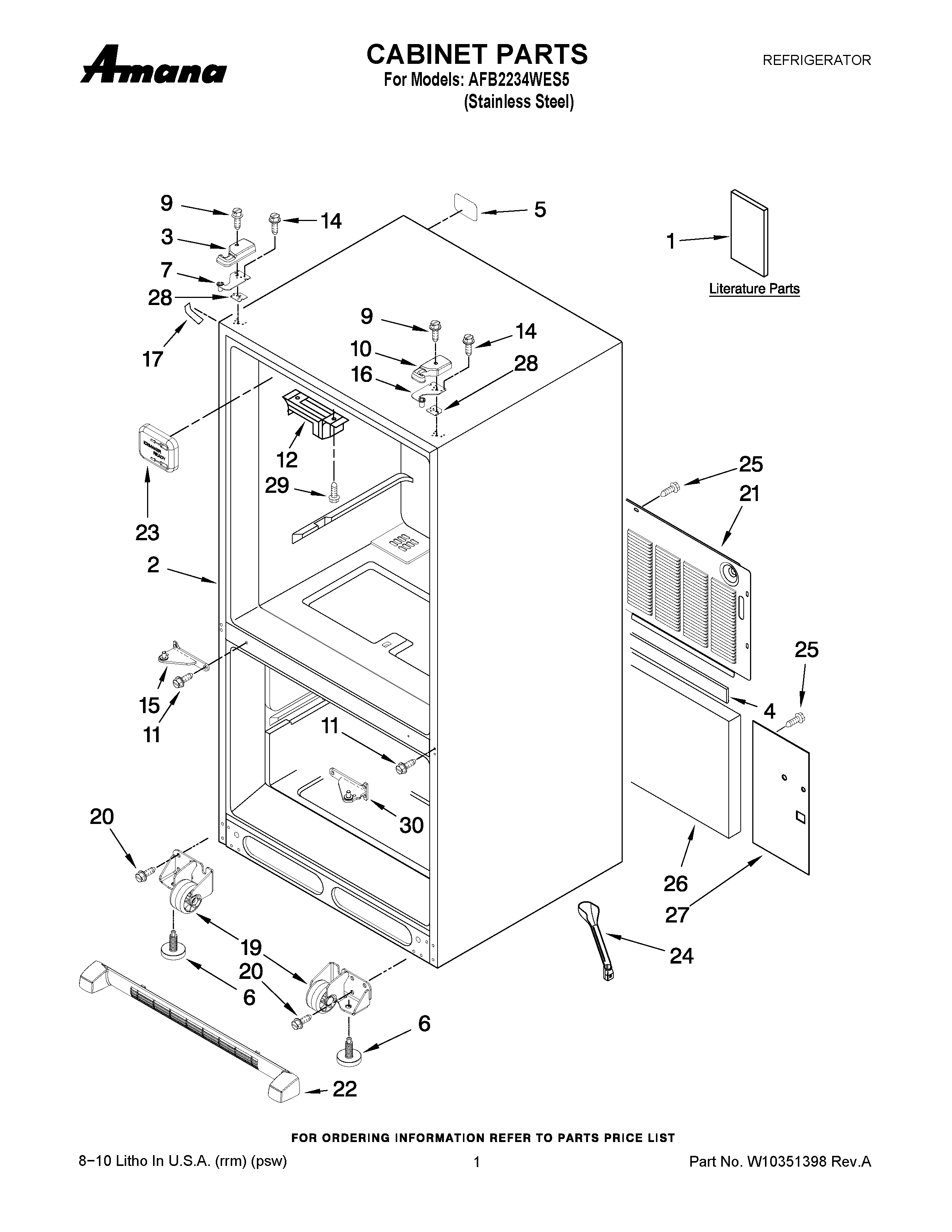

AFB2234WES5 01 – CABINET PARTS

AFB2234WES5 01 – CABINET PARTS

Written by

in

AFB2234WES5 01 – CABINET PARTS

Products

PositionProduct
1MAY W10260550
1MAY W10322959
1MAY W10208785
2LINER (NOT A SERVICEABLE PART)
3COVER, TOP HINGE (LEFT) (BLACK)
4MAY B5759655
5LABEL-FILL TUBE
6Brake, Foot
7MAY 12963204ED
9MAY 12992602
10MAY 12962302B
11MAY 12990101
12Block, Pivot
14SCREW (6)
15HINGE, CENTER (BLACK, LEFT)
16MAY 12963205ED
17COVER, CORNER (BLACK)
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY W10210979
22MAY W10236196
23COVER-FILL TUBE
24MAY W10210988
25SCREW (10)
26Insulation, Sound
27MAY W10217701
28MAY 12999502
28MAY 12999501
29SCREW
30HINGE, CENTER (BLACK, RIGHT )
