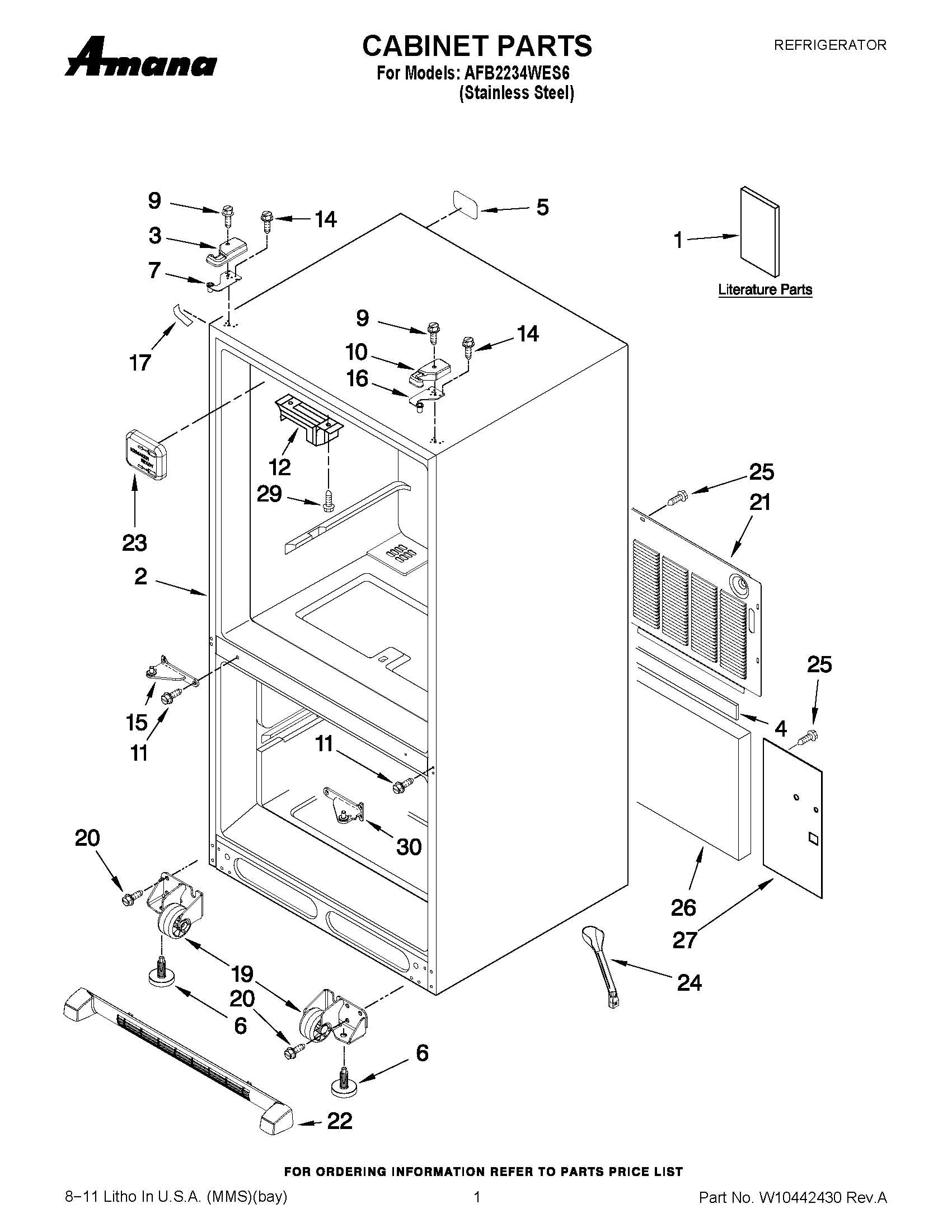

AFB2234WES6 01 – CABINET PARTS

Products

PositionProduct
1MAY W10260550
1MAY W10366212
1MAY W10322959
2LINER (NOT A SERVICEABLE PART)
3MAY 12962301B
4MAY B5759655
5LABEL-FILL TUBE
6Brake, Foot
7MAY 12963204ED
9MAY 12992602
10MAY 12962302B
11MAY 12990101
12Block, Pivot
14SCREW (6)
15HINGE, CENTER (BLACK, LEFT)
16MAY 12963205ED
17COVER, CORNER (BLACK)
19ROLLER ASSY. (FRONT) (RIGHT)
19ROLLER ASSY. (FRONT) (LEFT)
20Screw (8)
21MAY W10210979
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23COVER-FILL TUBE
24MAY W10210988
25SCREW (10)
26Insulation, Sound
27MAY W10217701
29SCREW
30HINGE, CENTER (BLACK, RIGHT )
