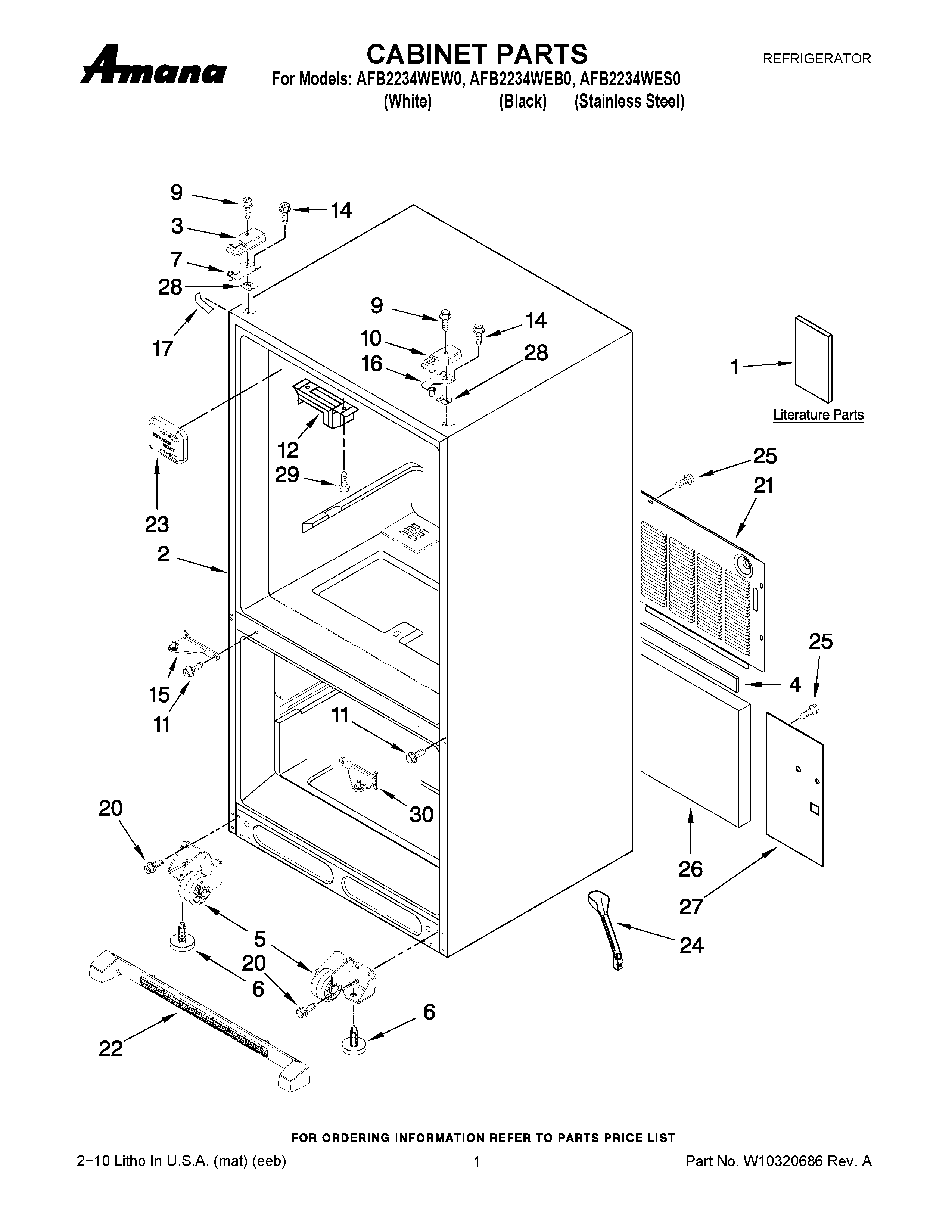

AFB2234WEW0 01 – CABINET PARTSadmin2025-04-26T09:22:21+00:00AFB2234WEW0 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10260550 |
| 1 | MAY W10175445 |
| 1 | MAY W10279337 |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3 | COVER, TOP HINGE (LEFT) (BLACK) |
| 3 | Cover, Left Hinge (White) |
| 4 | MAY B5759655 |
| 5 | ROLLER ASSY. (FRONT) (RIGHT) |
| 5 | ROLLER ASSY. (FRONT) (LEFT) |
| 6 | Brake, Foot |
| 7 | MAY 12963204ED |
| 9 | MAY 12992602 |
| 10 | MAY 12962302B |
| 10 | MAY 12962302W |
| 11 | MAY 12990101 |
| 12 | Block, Pivot |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER (BLACK, LEFT) |
| 15 | Hinge, Center (LT) (White) |
| 16 | MAY 12963205ED |
| 17 | Cover, Corner (2) (White) |
| 17 | COVER, CORNER (BLACK) |
| 20 | Screw (8) |
| 21 | MAY W10210979 |
| 22 | MAY W10236196 |
| 22 | MAY W10236195 |
| 23 | COVER-FILL TUBE |
| 24 | MAY W10210988 |
| 25 | SCREW (10) |
| 26 | Insulation, Sound |
| 27 | MAY W10217701 |
| 28 | MAY 12999502 |
| 28 | MAY 12999501 |
| 29 | SCREW (2) |
| 30 | HINGE, CENTER (BLACK, RIGHT ) |
| 30 | Hinge, Center (RT) (White) |
