AFB2234WEW2 01 – CABINET PARTS – Aparts

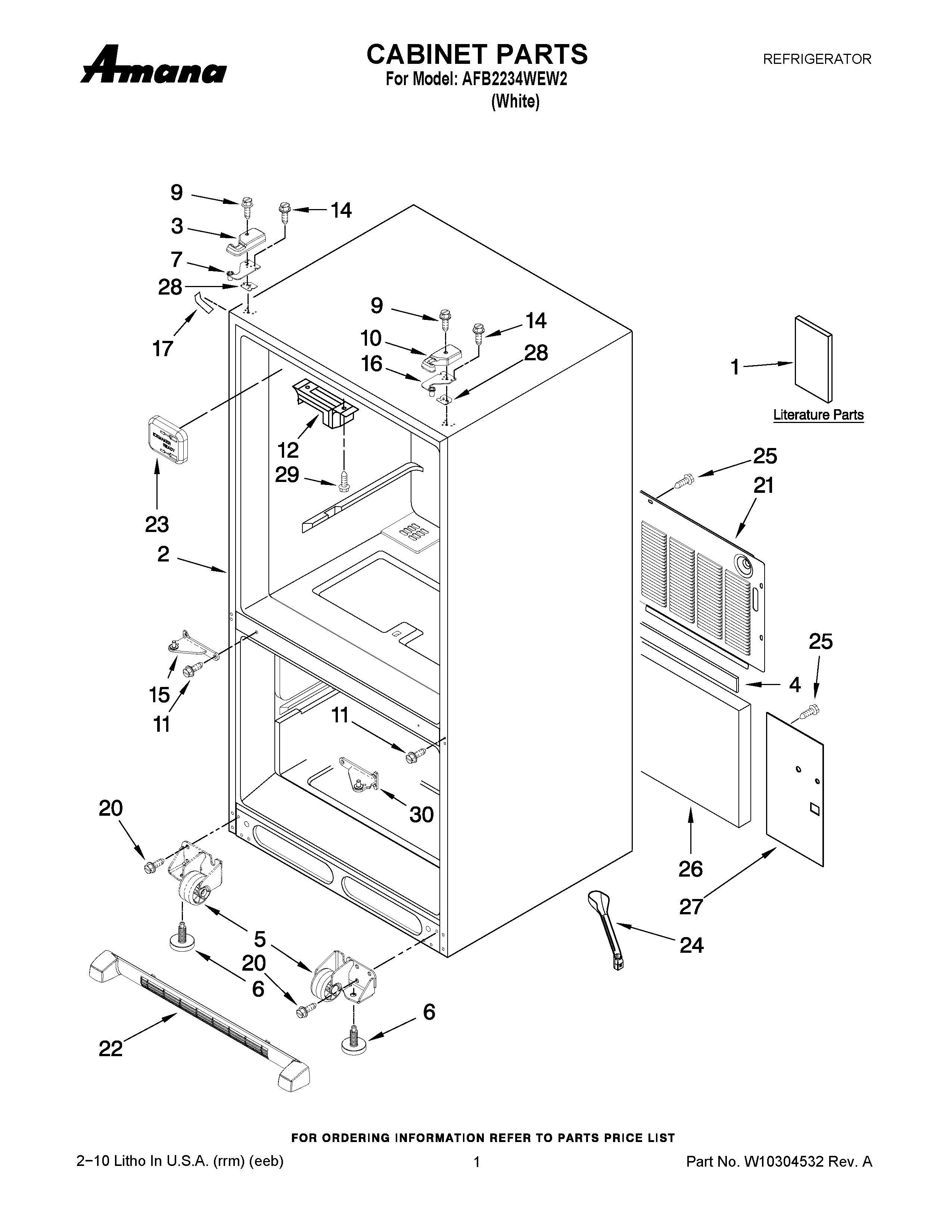

AFB2234WEW2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10260550
1	MAY W10175445
1	MAY W10279337
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12962301W
4	MAY B5759655
5	ROLLER ASSY. (FRONT) (LEFT)
5	ROLLER ASSY. (FRONT) (RIGHT)
6	Brake, Foot
7	MAY 12963204ED
9	MAY 12992602
10	MAY 12962302W
11	MAY 12990101
12	Block, Pivot
14	SCREW (6)
15	Hinge, Center (LT) (White)
16	MAY 12963205ED
17	Cover, Corner (2) (White)
20	Screw (8)
21	MAY W10210979
22	MAY W10236195
23	COVER-FILL TUBE
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
28	MAY 12999501
28	MAY 12999502
29	SCREW (2)
30	Hinge, Center (RT) (White)
