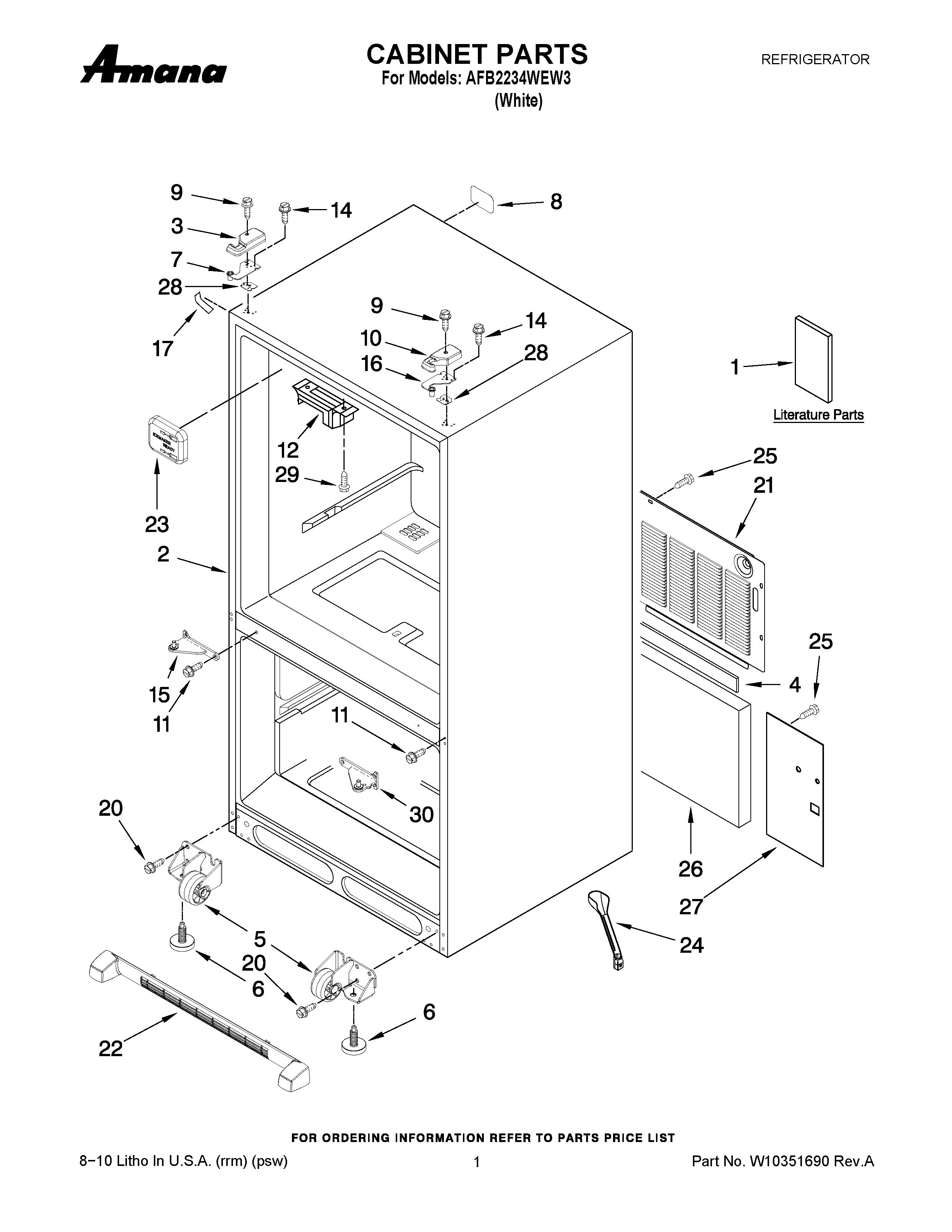

AFB2234WEW3 01 – CABINET PARTS

AFB2234WEW3 01 – CABINET PARTS

Written by

in

AFB2234WEW3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10260550
1MAY W10208785
1MAY W10322959
2LINER (NOT A SERVICEABLE PART)
3MAY 12962301W
4MAY B5759655
5ROLLER ASSY. (FRONT) (LEFT)
5ROLLER ASSY. (FRONT) (RIGHT)
6Brake, Foot
7MAY 12963204ED
8LABEL-FILL TUBE
9MAY 12992602
10MAY 12962302W
11MAY 12990101
12Block, Pivot
14SCREW (6)
15Hinge, Center (LT) (White)
16MAY 12963205ED
17Cover, Corner (2) (White)
20Screw (8)
21MAY W10210979
22MAY W10236195
23COVER-FILL TUBE
24MAY W10210988
25SCREW (10)
26Insulation, Sound
27MAY W10217701
28MAY 12999502
28MAY 12999501
29SCREW
30Hinge, Center (RT) (White)
