AFB2234WEW3 07 – SHELF PARTS – Aparts

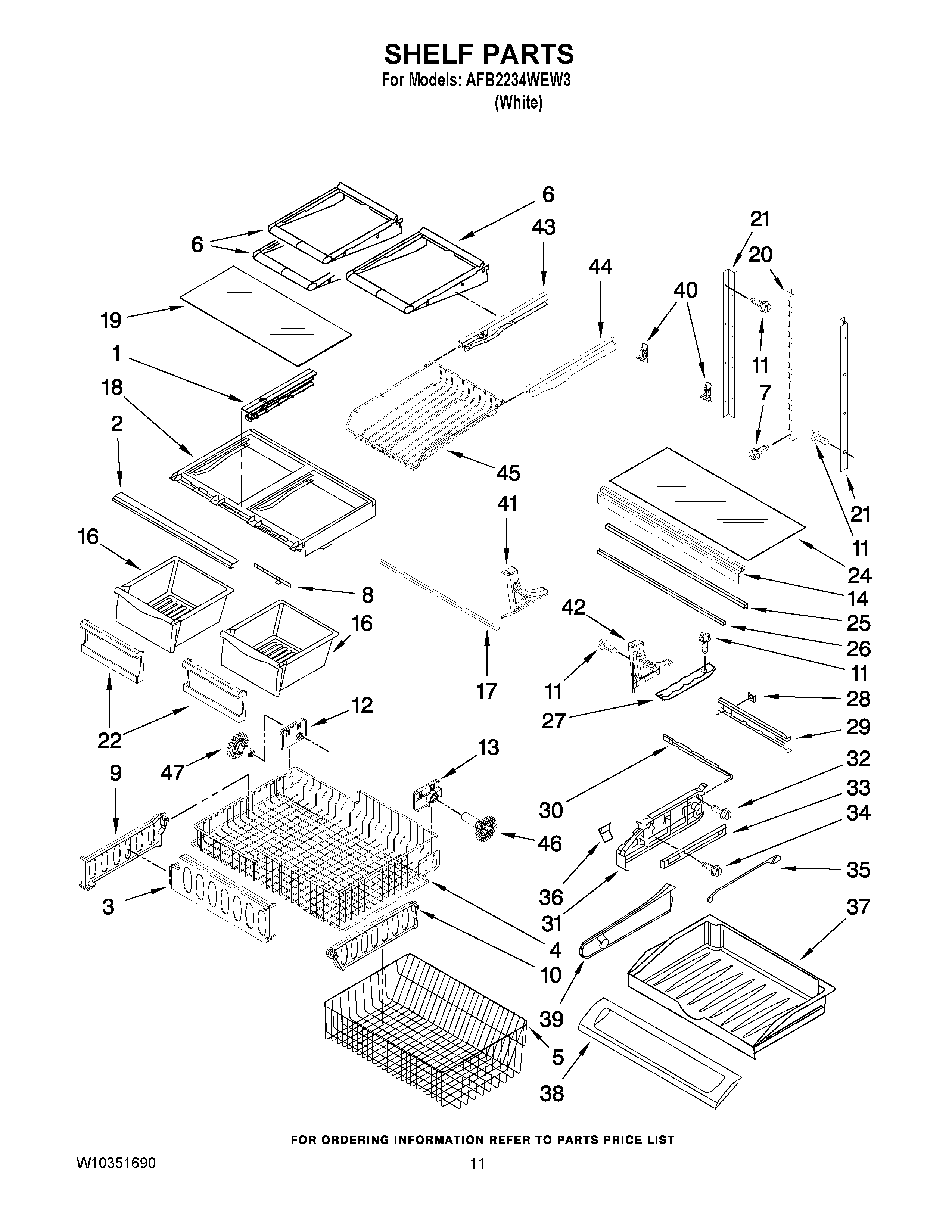

AFB2234WEW3 07 – SHELF PARTS

Products

Position	Product
1	MAY 12530701N
2	MAY W10231343N
3	DIVIDER, UPPER
4	MAY W10169950
5	MAY W10150038
6	MAY 12463509
7	MAY W10215666
8	MAY 12530805SP
9	Divider, Upper Basket
10	MAY W10205416
11	MAY 12990513
12	MAY W10233898
13	MAY W10233899
14	MAY 13048801
16	MAY 12530505SP
17	BRACE, CRISPER FRAME
18	FRAME, CRISPER
19	MAY 12204822N
20	MAY W10273463
21	MAY W10251969
22	FRONT, CRISPER
24	MAY 12204820
25	MAY 12655903
26	MAY 12227301WD
27	TRACK, PANTRY
28	MAY 12656902
29	MAY 13048301
30	MAY 13048401
31	MAY 13047801
31	MAY 13047701
32	MAY 12990504
33	MAY W10235370
34	SCREW (2)
35	MAY 13048201
36	MAY 12655204V
37	MAY 13048501SP
38	MAY 12656820
39	MAY 13048601SP
40	HOOK-LADDER (2)
41	SUPPORT-LEFT
42	SUPPORT-RIGHT
43	GLIDE, LEFT
44	GLIDE, RIGHT
45	RACK-CAN
46	MAY W10146446
47	MAY W10158749
