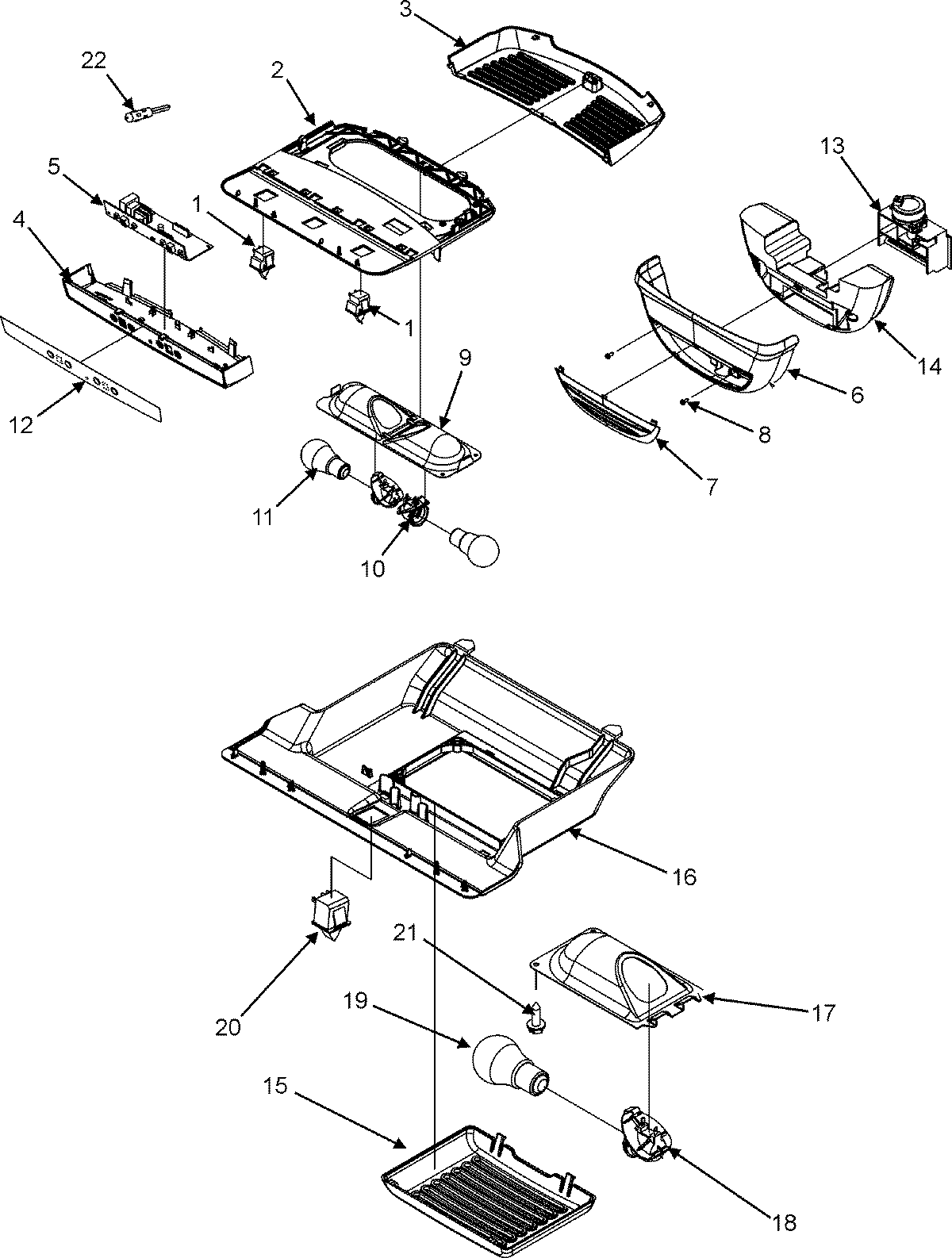

AFB2534DEB 03 – CONTROLS

Products

Position	Product
NI	MAY 67003908
NI	WP12868601 Whirlpool Refrigerator Wire Harness
1	Switch, Light (2)
2	MAY 67004078
3	W11284721 Whirlpool Refrigerator Cover
4	MODULE, REF CONTROL
5	WPW10503278 Whirlpool Refrigerator Electronic Control Board
6	WP12806701 Whirlpool Refrigerator Box Cover
7	67003900 Whirlpool Refrigerator Insert Damper Cover
8	MAY M0213132
9	12806601 Whirlpool Refrigerator Light Housing
12	W11478401 Whirlpool Refrigerator Housing
12	MAY 67004695
13	WP67003903 Whirlpool Refrigerator Damper Control
14	WP67003904 Whirlpool Refrigerator Insulation
15	MAY 67003905
16	67003906 Whirlpool Refrigerator Control Module
17	MAY 67001035
18	Socket, Light (2)
19	RANGE ONLY 40W 120V APPL BULB
20	MAY 12466101
21	MAY M0226528
22	12002355 Whirlpool Refrigerator Thermistor Kit
