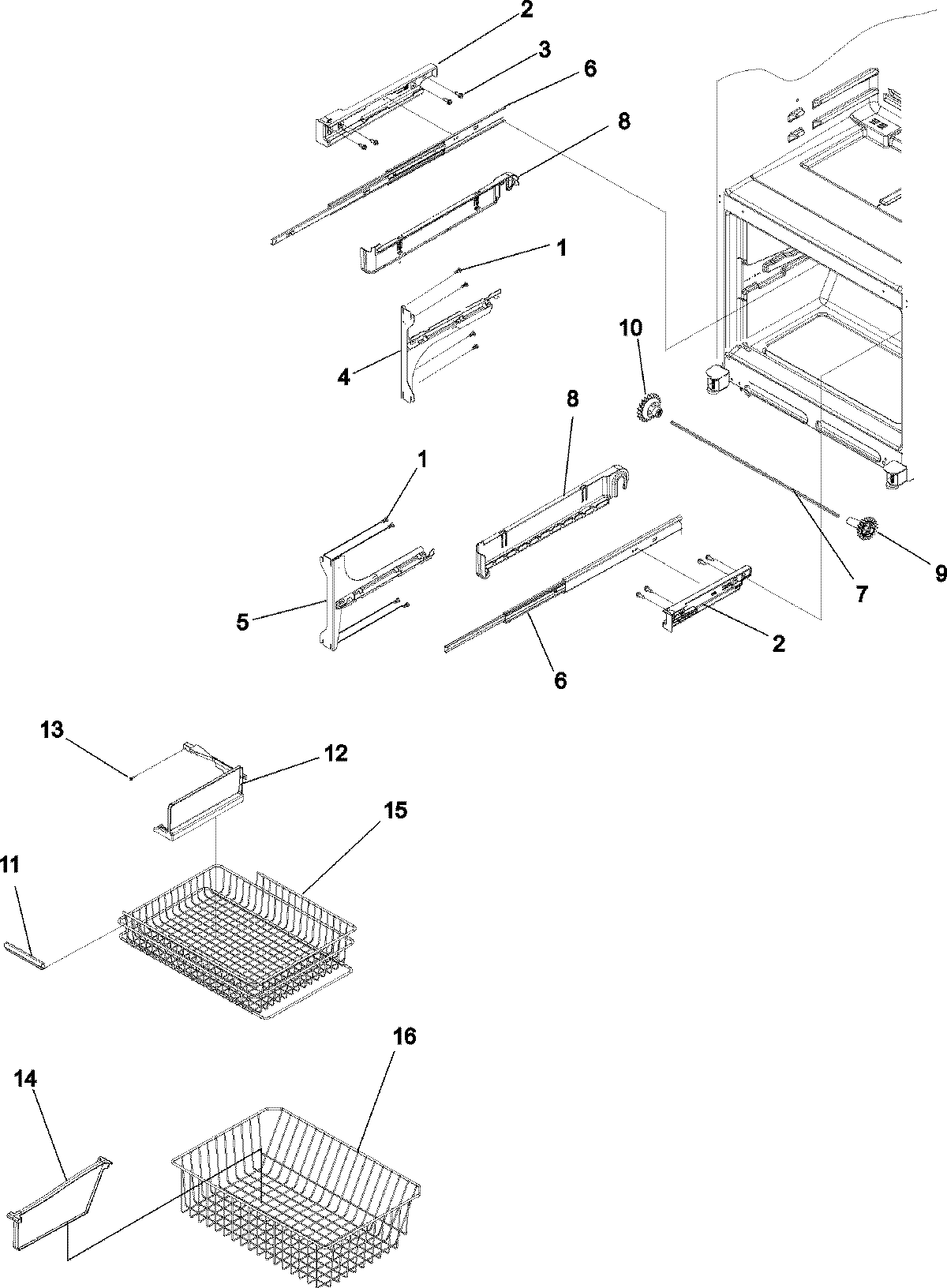

AFB2534DEB 06 – FREEZER SHELVING

Products

Position	Product
1	MAY M0211018
2	ADAPTER, SIDE (LT)
2	ADAPTER, SIDE (RT)
3	SCREW, SM
4	BRACKET, DRAWER SLIDE (LT)
5	BRACKET, DRAWER SLIDE (RT)
6	MAY 67004065
7	W11028221 Whirlpool Refrigerator Shaft
8	WPW10280608 Whirlpool Refrigerator Bracket
8	WPW10280613 Whirlpool Refrigerator Bracket
9	GEAR (LT)
10	GEAR (RT)
11	HANDLE, BASKET/SHELF
12	Divider, Upper Basket
13	MAY 67001310
14	MAY 67004064
15	MAY 67002765
16	WPW10503184 Whirlpool Refrigerator Freezer Basket
