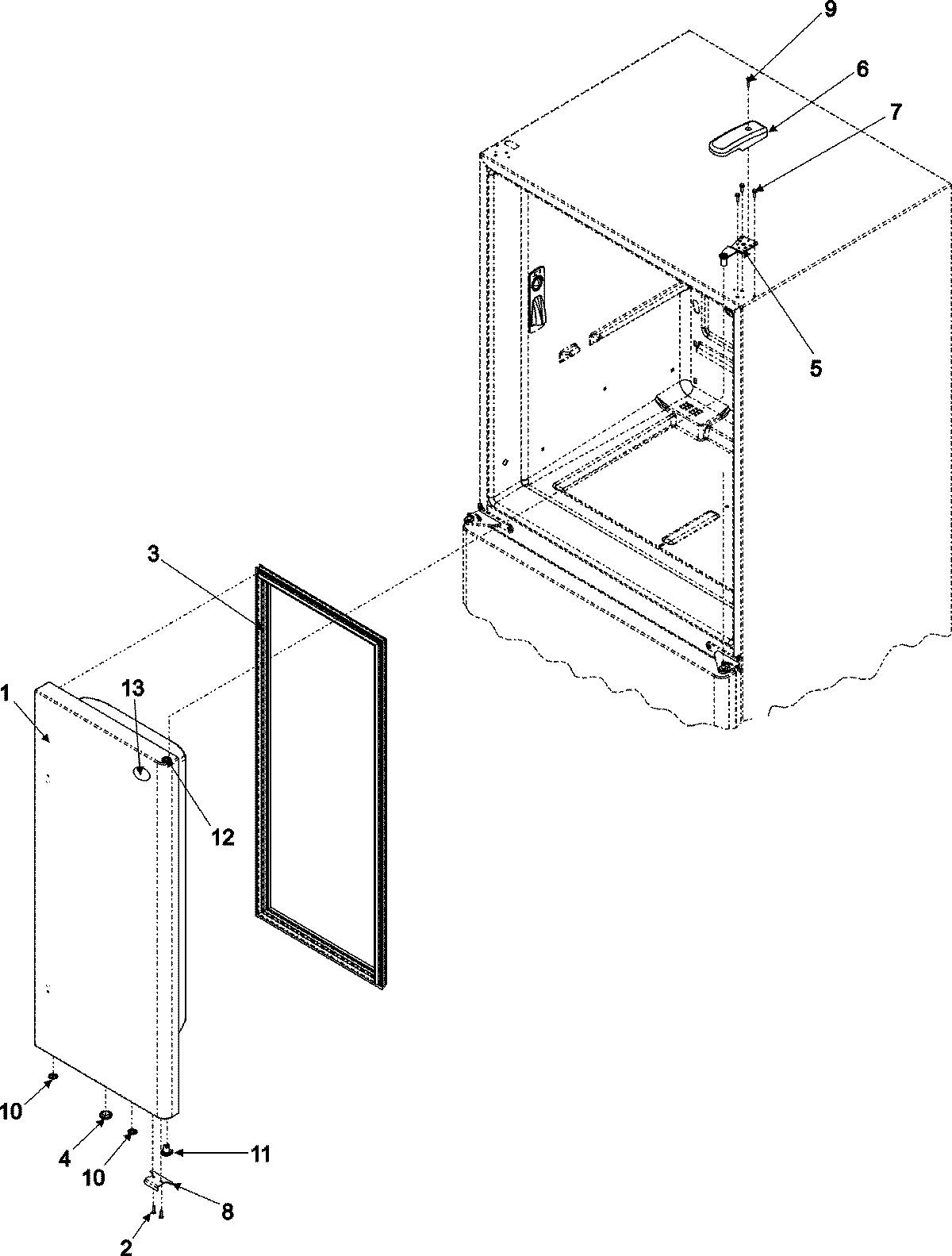

AFB2534DEB 13 – RIGHT REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67002724
2MAY M0211533
3GASKET-FIP
4MAY A3080001
5MAY 12579702
5WP12566606ED Whirlpool Refrigerator Door Hinge
6MAY 12684202B
7MAY M0238731
8W11708403 Whirlpool Door Stop
9WP8281196 Whirlpool Screw
1067004838 Whirlpool Refrigerator Button Vent Plug
11WP67003639 Whirlpool Refrigerator Closer
1267004978 Whirlpool Refrigerator Black Door Bushing
13Y12528501 Whirlpool Refrigerator Nameplate
