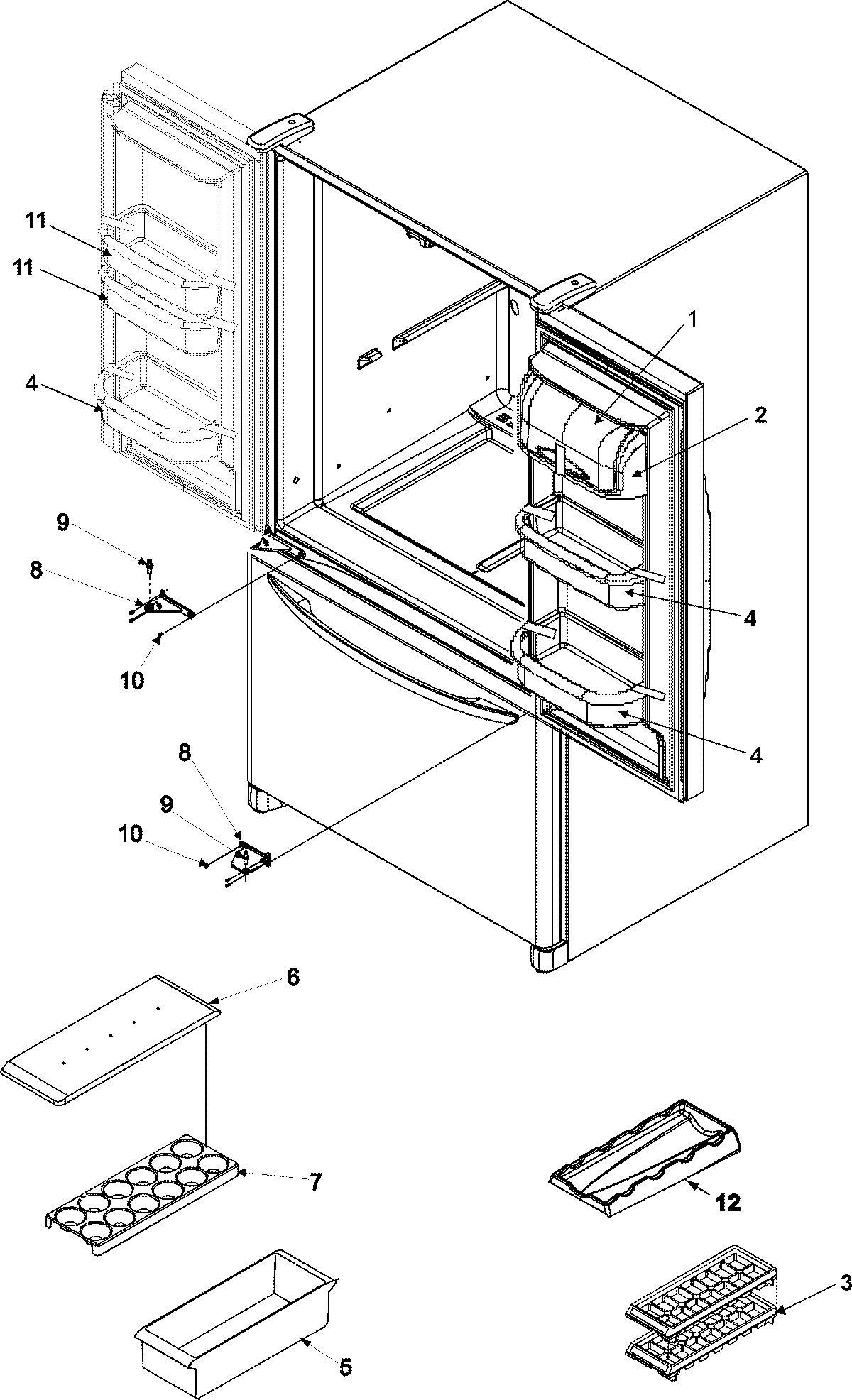

AFB2534DEQ 11 – REF DR STORAGE & CENTER HINGES

AFB2534DEQ 11 – REF DR STORAGE & CENTER HINGES

Written by

in

AFB2534DEQ 11 – REF DR STORAGE & CENTER HINGES

Products

PositionProduct
1WP12744905 Whirlpool Refrigerator Compressor Door
2WP67001279 Whirlpool Refrigerator Dairy Tray
3MAY 67001205
4WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
4GRIPPER, BUCKET
5MAY 10423131
6MAY 10436404
7MAY 10436506
8WP12607103WD Whirlpool Refrigerator Center Hinge
9WP67006642 Whirlpool Refrigerator Pin
10MAY M0226233
11WPW10371193 Whirlpool Refrigerator Door Bin
11GRIPPER, BKT FRENCH DOOR GAL
1267001656 Whirlpool Refrigerator Bottle Trivet
