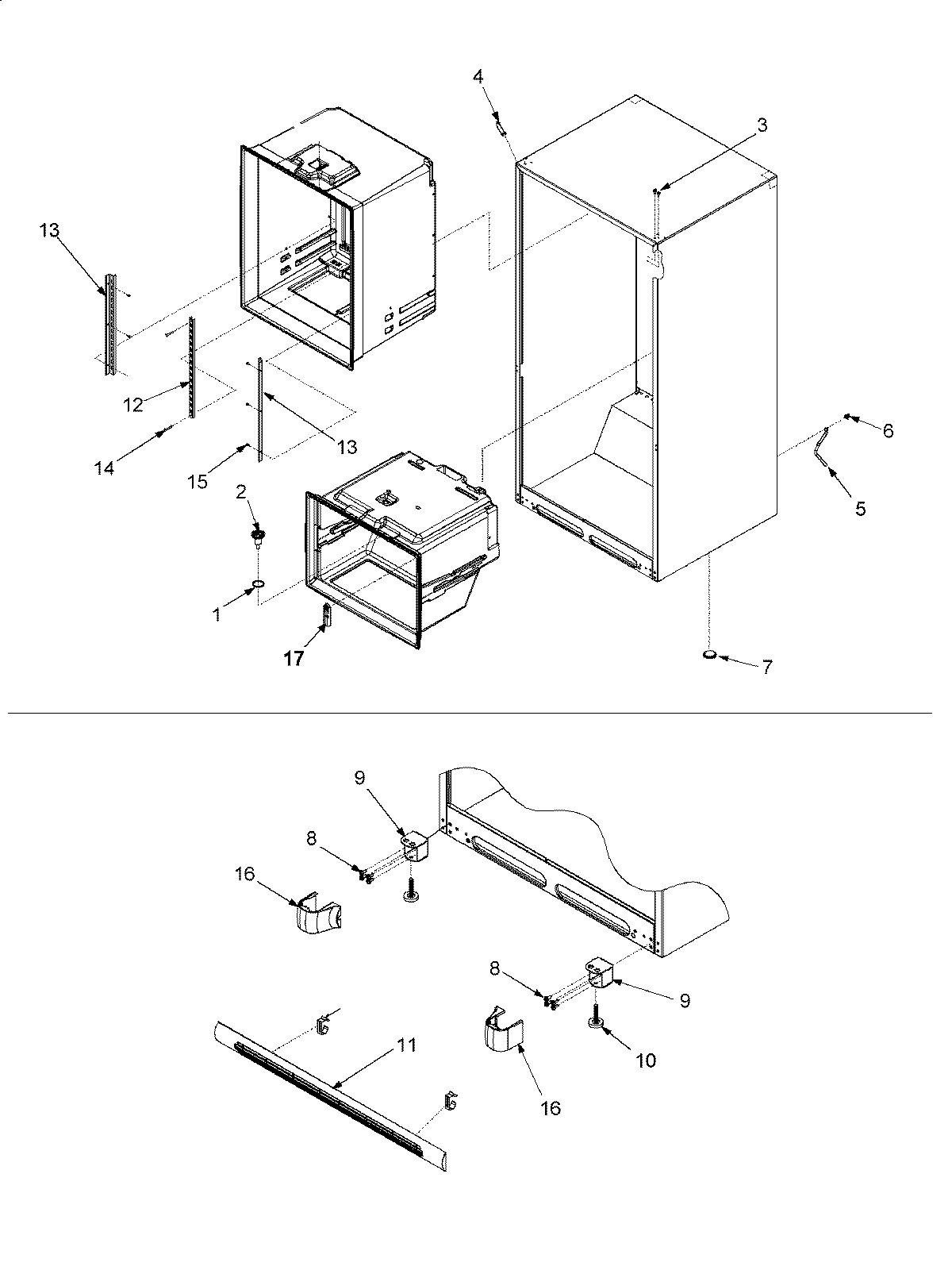

AFB2534DES 09 – INTERIOR CABINET

Products

Position	Product
1	Gasket
1	MAY M0500703
2	MAY D7753903
3	MAY A4539607
4	67003485 Whirlpool Refrigerator Corner Cover (Black)
5	MAY 67001066
6	67001067 Whirlpool Refrigerator Drain Tube Clip
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 67003858
9	HINGE, BOTTOM E-CT (BLK)
10	W11177593 Whirlpool Leveling Feet
11	WP67002224 Whirlpool Refrigerator Grille Assembly
12	67001073 Whirlpool Refrigerator Center Ladder
13	67002489 Whirlpool Refrigerator Ladder L/R Side
14	MAY M0231425
15	SCREW, SM
16	Cover, Lw Hinge (Black)
17	WP67003924 Whirlpool Refrigerator Cover
