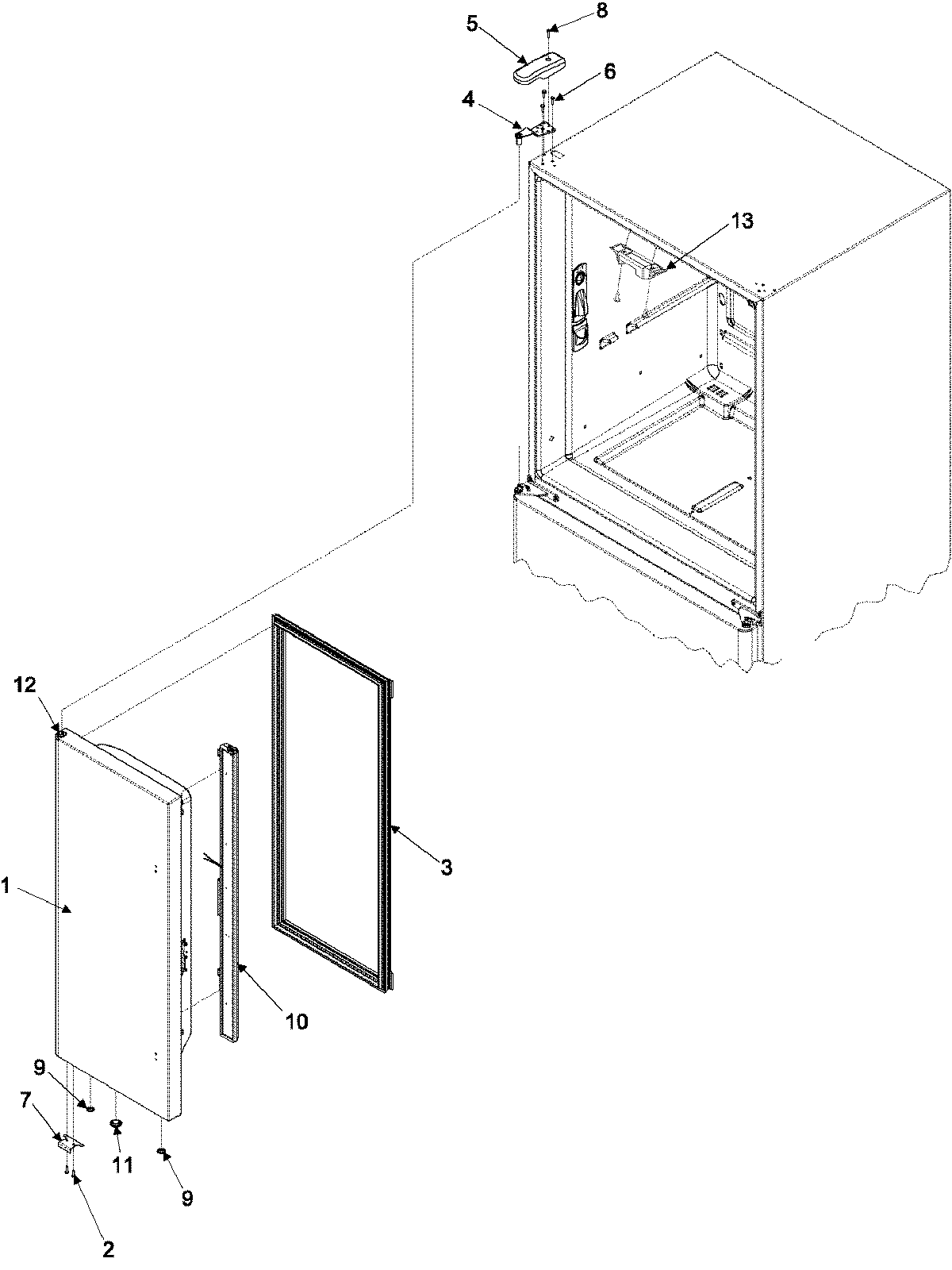

AFB2534DES 10 – LEFT REFRIGERATOR DOOR

AFB2534DES 10 – LEFT REFRIGERATOR DOOR

Written by

in

AFB2534DES 10 – LEFT REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67004001
2MAY M0211533
3GASKET-FIP
4MAY 12579702
4WP12566607ED Whirlpool Refrigerator Door Hinge
5MAY 12684201B
6MAY M0238731
7W11708403 Whirlpool Door Stop
8WP8281196 Whirlpool Screw
967004838 Whirlpool Refrigerator Button Vent Plug
10WP12722803B Whirlpool Door Guide
11MAY A3080001
1267004978 Whirlpool Refrigerator Black Door Bushing
13MAY M0214931
13WP67003405 Whirlpool Pivot Block
