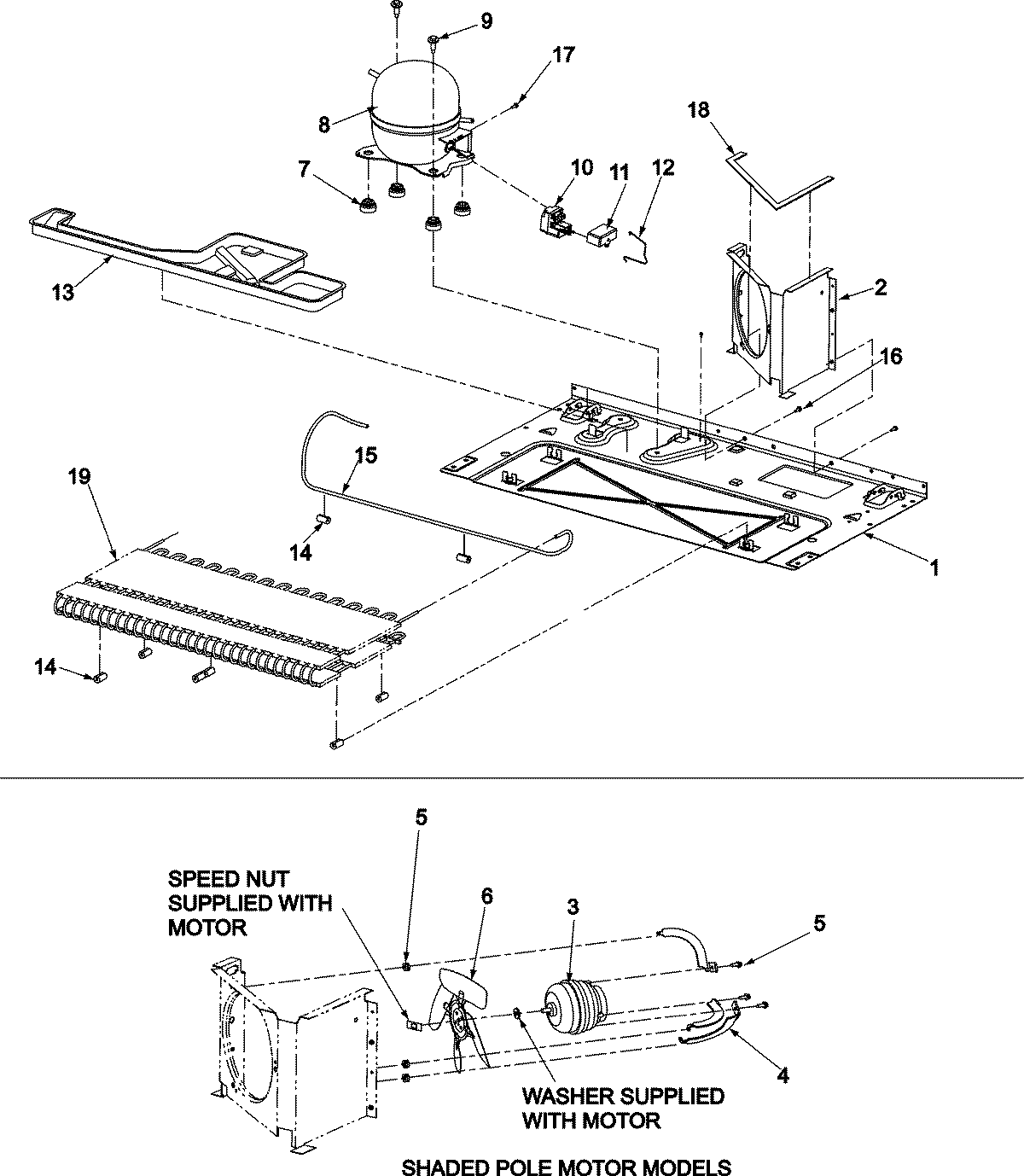

AFB2534DEW 02 – COMPRESSOR

Products

Position	Product
1	MAY 67001512
2	SHROUD, CONDENSER FAN
3	MAY 67004432
4	MAY 67004953
5	WP486692 Whirlpool Refrigerator Nut
6	W10156818 Whirlpool Refrigerator Fan Blade
7	67003493 Whirlpool Refrigerator Compressor Grommet
8	W10160407 Whirlpool Refrigerator Compressor
9	MAY M0221523
10	W10613606 Whirlpool Refrigerator Start Device Relay Overload
11	CAPACITOR
12	MAY 12576801
13	WP12579803 Whirlpool Refrigerator Drain Pan
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004700
16	MAY M0238616
17	MAY M0231604
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	WP67006131 Whirlpool Refrigerator Condenser
