AFB2534DEW 09 – INTERIOR CABINET

Products

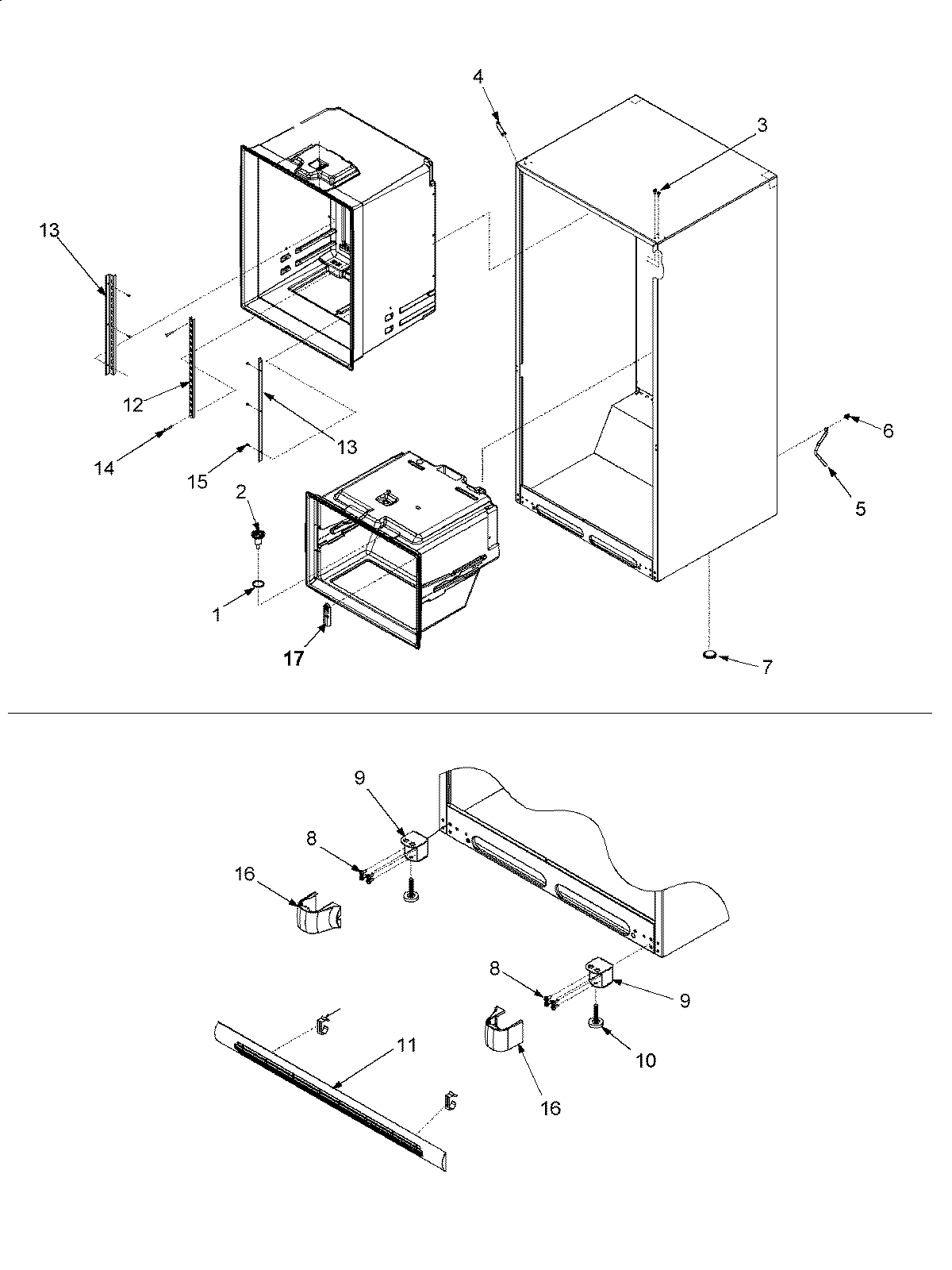

PositionProduct
1Gasket
1MAY M0500703
2MAY D7753903
3MAY A4539607
467003484 Whirlpool Refrigerator White Corner Cover
5MAY 67001066
667001067 Whirlpool Refrigerator Drain Tube Clip
7A3076901 Whirlpool Refrigerator Plug
8MAY 67003858
9HINGE, BOTTOM E-CT (WHT)
10W11177593 Whirlpool Leveling Feet
11TOE GRILLE ASSY (WHT)
1267001073 Whirlpool Refrigerator Center Ladder
1367002489 Whirlpool Refrigerator Ladder L/R Side
14MAY M0231425
15SCREW, SM
16MAY 12561901W
17WP67003924 Whirlpool Refrigerator Cover
