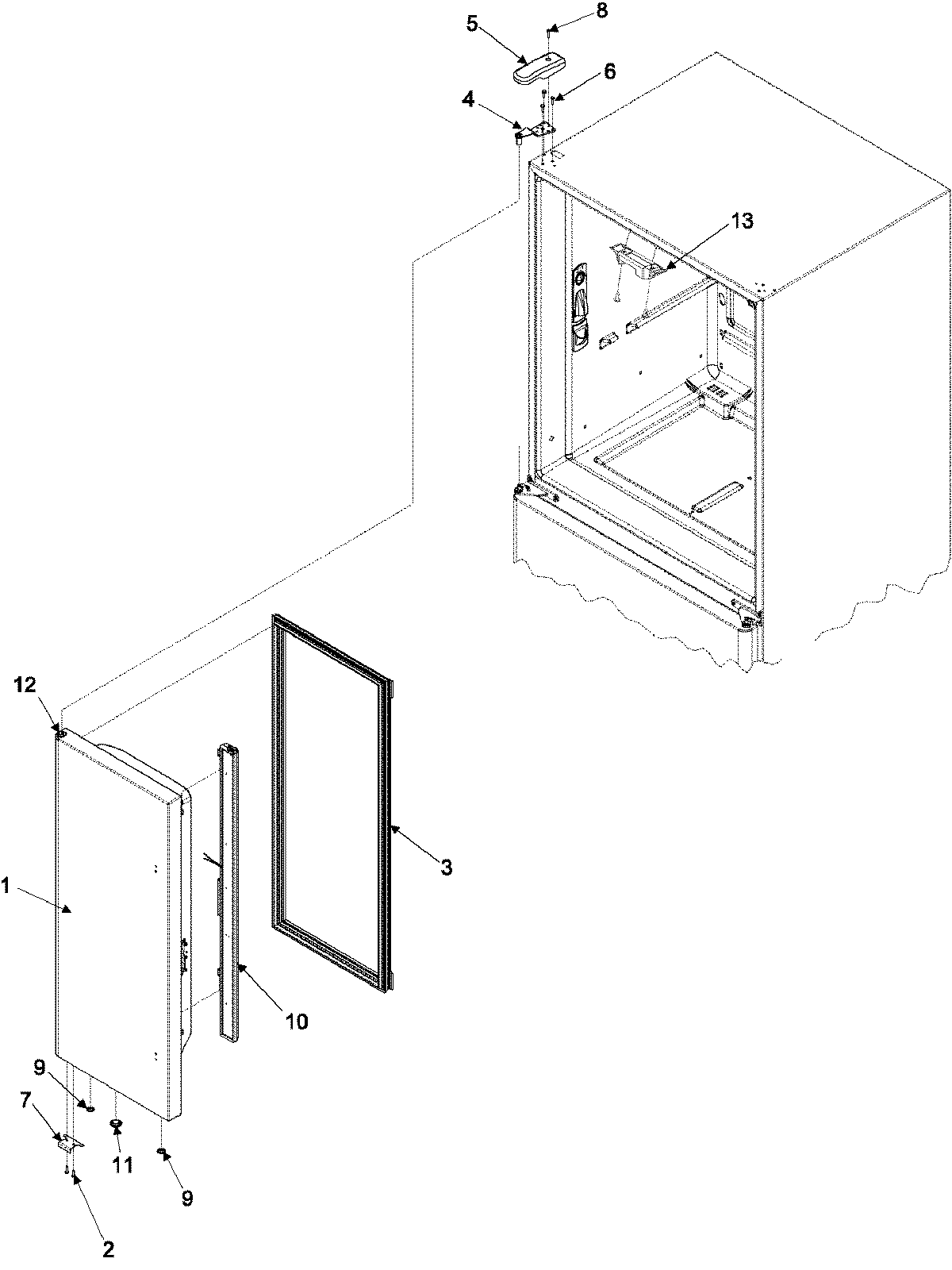

AFB2534DEW 10 – LEFT REFRIGERATOR DOOR

AFB2534DEW 10 – LEFT REFRIGERATOR DOOR

Written by

in

AFB2534DEW 10 – LEFT REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67002713
2MAY M0211533
3W10830189 Whirlpool Refrigerator Door Gasket
4WP12566607ED Whirlpool Refrigerator Door Hinge
4MAY 12579702
5MAY 12684201W
6MAY M0238731
712968202W Whirlpool Refrigerator Door Stop
8WP8281196 Whirlpool Screw
910712401 Whirlpool Refrigerator Vent Plug (White)
10RAIL-MULLN WHITE
11MAY A3080002
1267002722 Whirlpool Refrigerator White Door Bushing
13MAY M0214931
13WP67003405 Whirlpool Pivot Block
