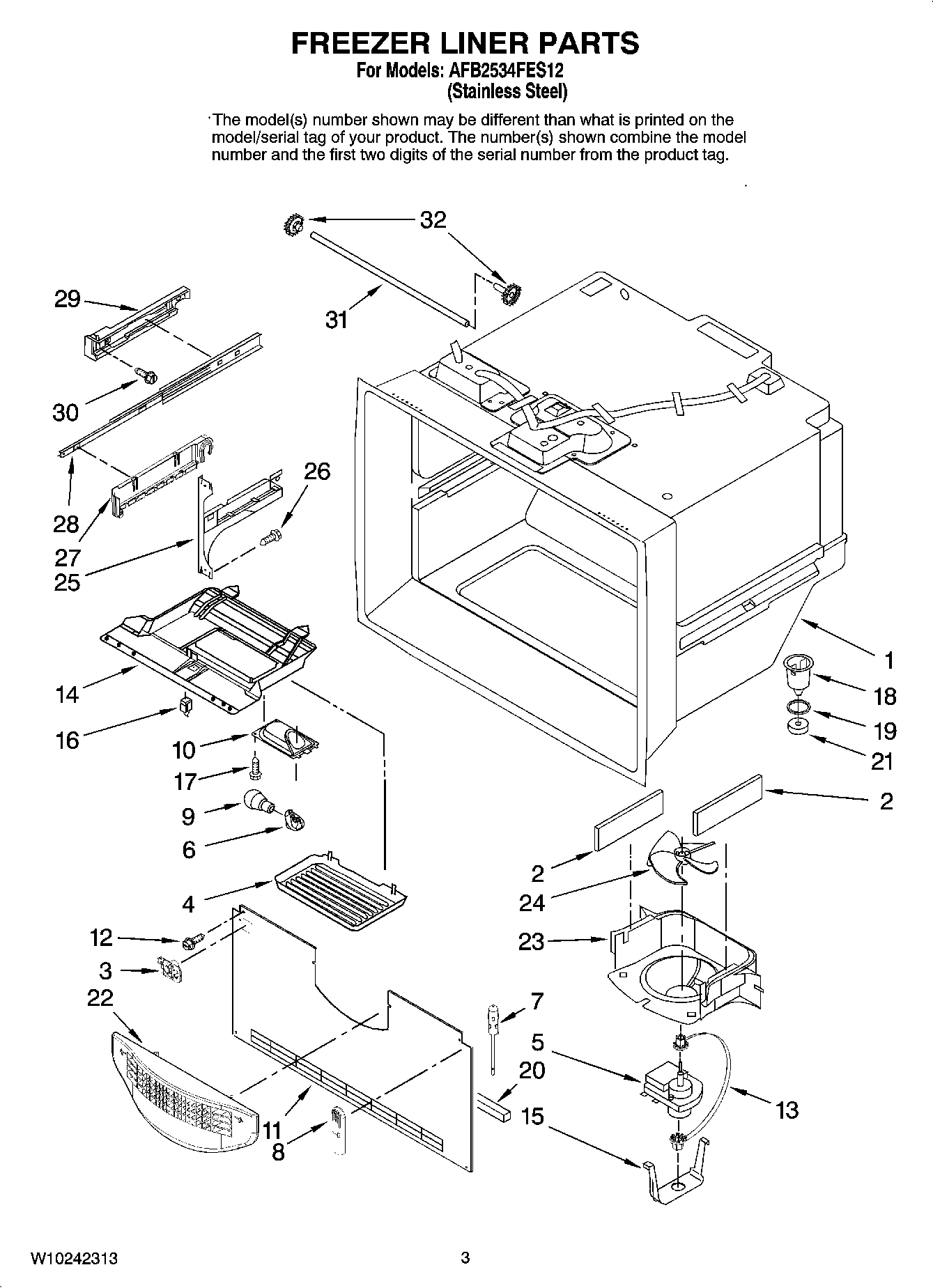

AFB2534FES12 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 67006095
2	W10856123 Whirlpool Refrigerator Gasket
3	MAY 67005874
4	MAY 67003905
5	WPW10128551 Whirlpool Evaporator Fan Motor
6	Socket, Light (2)
7	12002355 Whirlpool Refrigerator Thermistor Kit
8	WP67003924 Whirlpool Refrigerator Cover
9	RANGE ONLY 40W 120V APPL BULB
10	MAY 67001035
11	MAY 67005873
12	Screw (10)
13	MAY W10121318
14	67003906 Whirlpool Refrigerator Control Module
15	Clip, Motor
16	MAY 67005653
17	MAY 67006530
18	MAY D7753903
19	MAY M0500703
20	W11159728 Whirlpool Refrigerator Gasket
21	Gasket
22	MAY W10175909
23	SHROUD, EVAP FAN
24	Blade, Fan (Evaporator)
25	BRACKET, DOOR (LEFT)
25	BRACKET, DOOR (RIGHT)
26	Screw (8)
27	WPW10280613 Whirlpool Refrigerator Bracket
27	WPW10280608 Whirlpool Refrigerator Bracket
28	MAY W10120018
29	MAY W10128119
29	MAY W10128118
30	Screw (6)
31	W11028221 Whirlpool Refrigerator Shaft
32	12002497 Whirlpool Refrigerator Drawer Gear Kit
