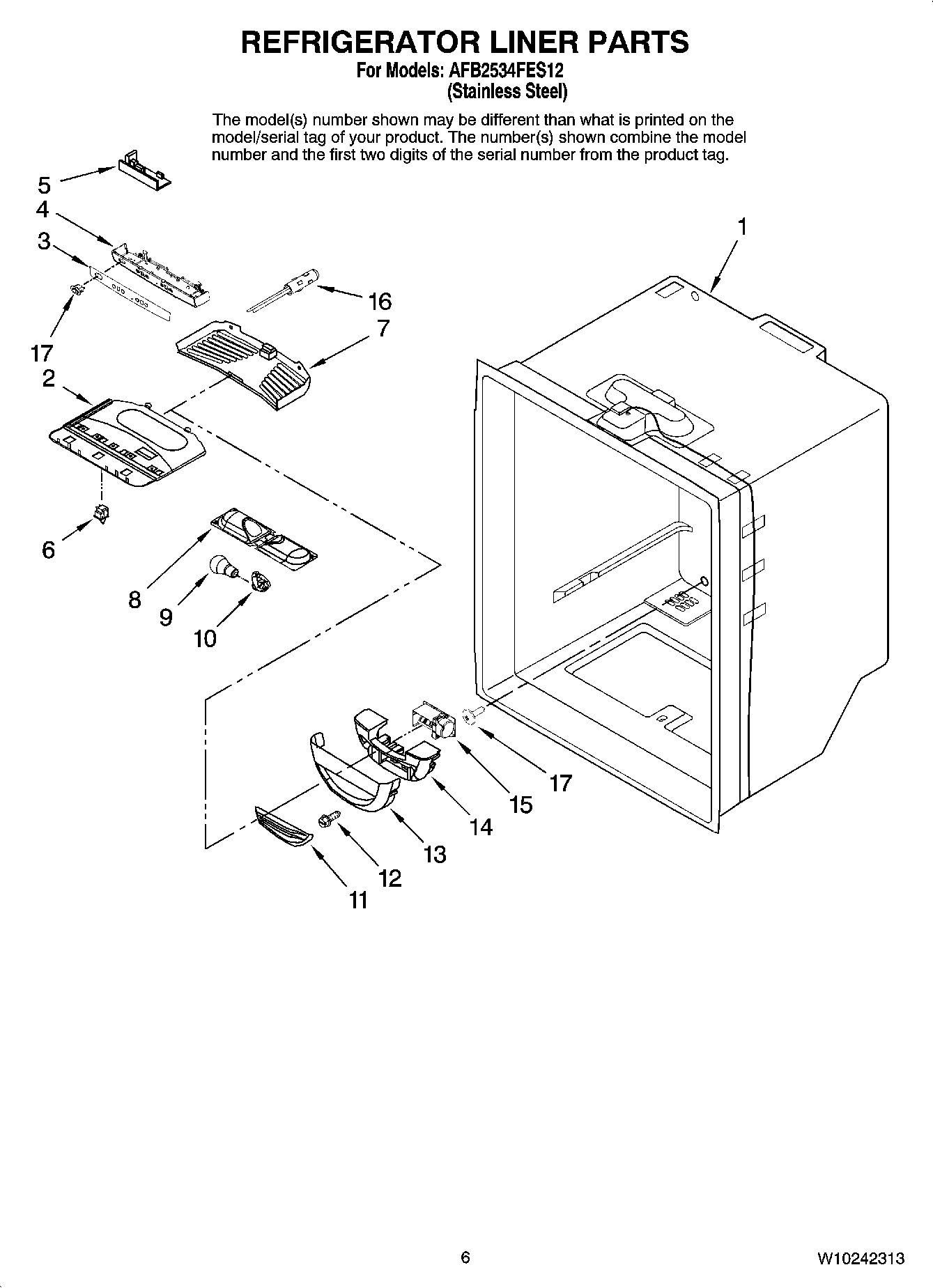

AFB2534FES12 04 – REFRIGERATOR LINER PARTS

AFB2534FES12 04 – REFRIGERATOR LINER PARTS

Written by

in

AFB2534FES12 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIWP12868601 Whirlpool Refrigerator Wire Harness
2MAY 67004078
3MAY 67004695
4MODULE, REF CONTROL
5Board, Control
6Switch, Light (2)
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9RANGE ONLY 40W 120V APPL BULB
10Socket, Light (2)
1167003900 Whirlpool Refrigerator Insert Damper Cover
12MAY 67006602
13WP12806701 Whirlpool Refrigerator Box Cover
14MAY 67006604
15Control, Damper
1612002355 Whirlpool Refrigerator Thermistor Kit
17W11478401 Whirlpool Refrigerator Housing
