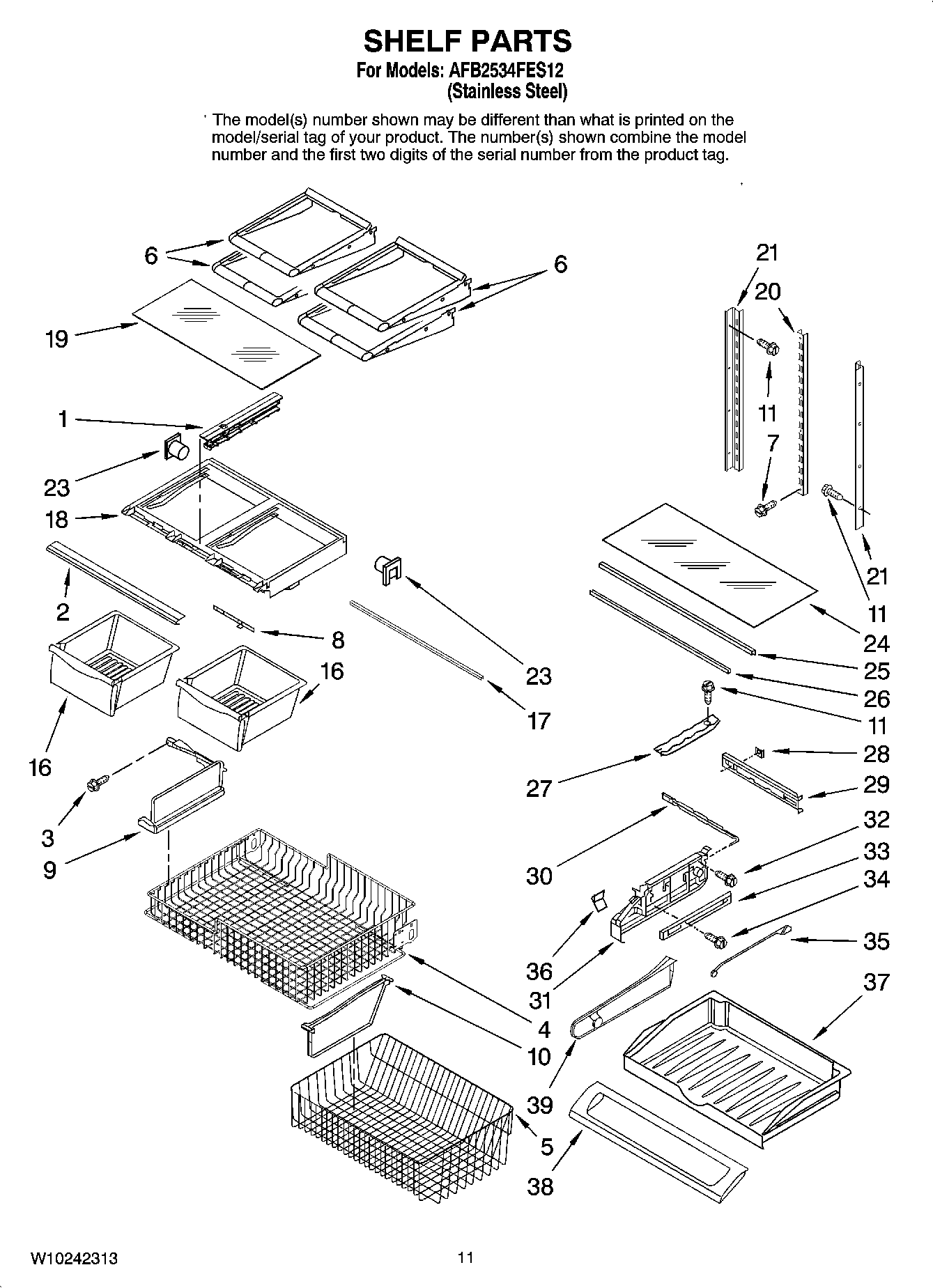

AFB2534FES12 07 – SHELF PARTS

AFB2534FES12 07 – SHELF PARTS

Written by

in

AFB2534FES12 07 – SHELF PARTS

Products

PositionProduct
1WPW10326469 Whirlpool Drawer Slide Rail
2EXTR, CRISPER FRONT
3MAY 67006608
467004987 Whirlpool Refrigerator Upper Basket
5WPW10503184 Whirlpool Refrigerator Freezer Basket
6MAY 67004637
7W10709795 Whirlpool Refrigerator Screw
8MAY 67005864
9Divider, Upper Basket
10Divider, Lower Basket
11MAY 67006400
16WP67004515 Whirlpool Crisper Drawer
17WP12642303WD Whirlpool Refrigerator Drawer Support
18WP67003854 Whirlpool Shelf Frame
19WP67006704 Whirlpool Glass Crisper Cover
2067001073 Whirlpool Refrigerator Center Ladder
2167002489 Whirlpool Refrigerator Ladder L/R Side
23WP12603701 Whirlpool Refrigerator Support
24MAY 67002761
25WP67006010 Whirlpool Refrigerator Shelf Trim
26WP12227305WD Whirlpool Drawer Support
27WP67001719 Whirlpool Refrigerator Track
2867002329 Whirlpool Refrigerator Pantry Gasket
29MAY 67005625
30MAY 67003793
31W10874836 Whirlpool Endcap Assembly Left Hand and Right
32WP98165 Whirlpool Screw
33Glide, Drawer(2)
34Screw (2)
35WP67003795 Whirlpool Refrigerator Temperature Control Bar
36W11498983 Whirlpool Refrigerator Knob
37WP67003531 Whirlpool Drawer Assembly
38W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
39WP67002759 Whirlpool Refrigerator Divider
