AFC12DRW1 2 – Aparts

AFC12DRW1 2

Products

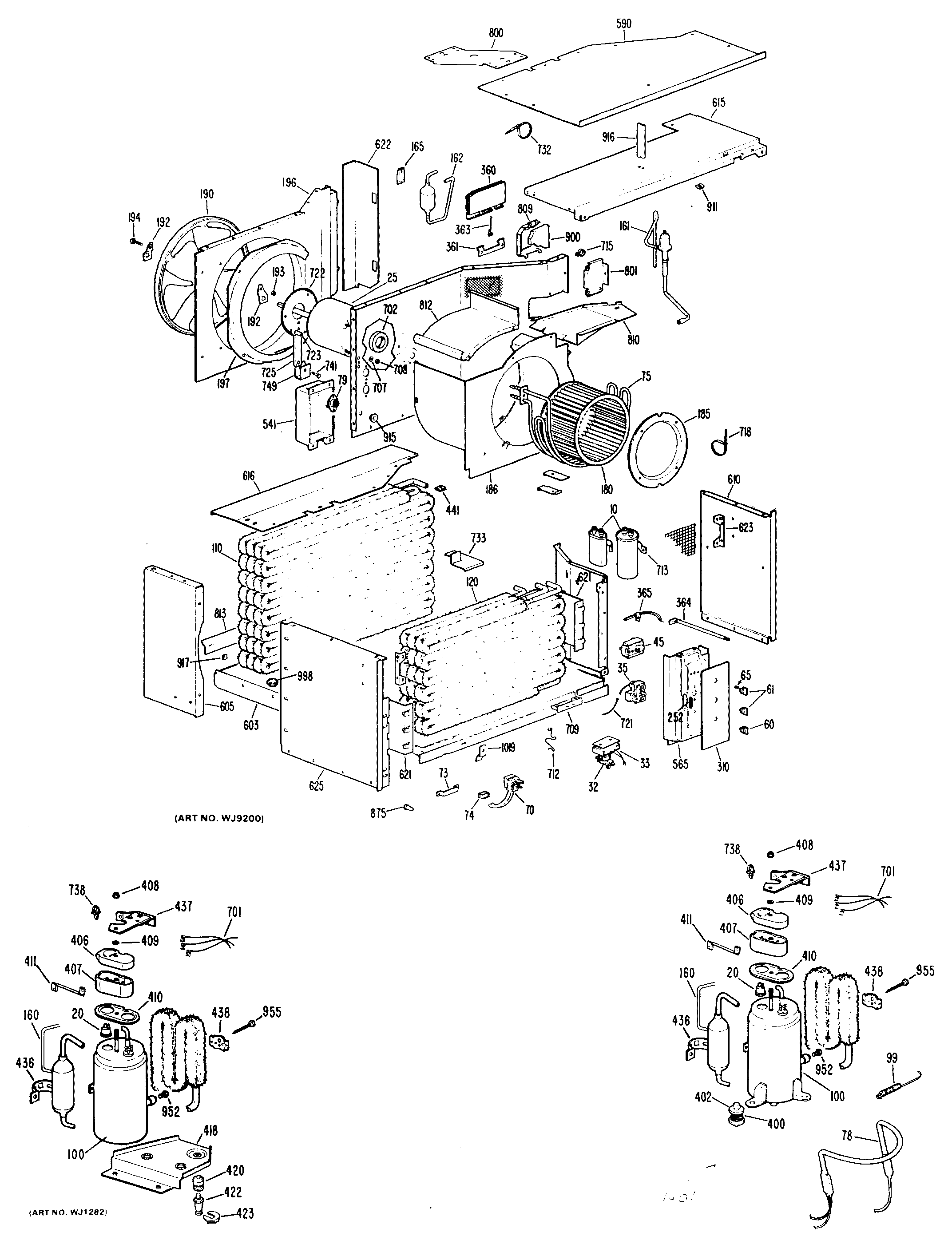

Position	Product
10	CAPACITOR FAN AND RUN
20	GEN WJ23X0088
25	GEN WJ94X0513
35	GEN WJ28X0512
45	GEN WJ26X0219
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	GEN WJ35X0102
73	CLAMP POWER CORD
74	GROMMET CORD POWER
160	CAPILLARY .049 CUT-25"
160	CAPILLARY .036 CUT TO 14
165	GEN WJ56X0051
165	GEN WJ56X0037
180	INDOOR BLOWER
186	GEN WJ76X0231
190	GEN WJ73X0147
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0236
197	BAFFLE
310	GEN WJ07X0616
360	GEN WJ70X0283
360	GEN WJ70X0166
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	GEN WJ14X0096
365	GEN WJ14X0095
406	TERMINAL CAP
407	GEN WJ79X0409
408	GEN WJ01X0292
410	GEN WJ43X0333
418	GEN WJ66X0305
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
437	GEN WJ66X0426
438	GEN WJ03X0143
565	GEN WJ79X0356
590	GEN WJ79X0232
603	GEN WJ89X0087
610	GEN WJ82X0142
615	GEN WJ79X0348
616	GEN WJ79X0370
621	GEN WJ81X0068
622	GEN WJ82X0149
625	GEN WJ82X0144
701	GEN WJ36X0016
702	GEN WJ43X0351
708	GEN WJ01X0445
709	SINK HEAT
713	GEN WJ03X0294
715	GEN WJ02X0411
715	GEN WJ02X0410
718	GEN WJ02X0416
721	SLEEVE CAPILLARY THERM
738	GEN WJ02X0420
800	GEN WJ65X0321
801	PLATE
809	TUBE SEAL CLAMP
810	COVER EVAPORATOR
813	GEN WJ70X0152
900	GEN WJ60X0018
916	SPACER
917	GEN WJ02X0263
952	SCREW 10-16 X 5/8" HEX
955	GEN WZ04X0268
998	GEN WJ01X0402
998	PLUG 30FR HOLD DOWN BOLT
1019	CLIP CHASSIS TO CABINET
