AFC12DSW1 2

AFC12DSW1 2

Written by

in

AFC12DSW1 2

Products

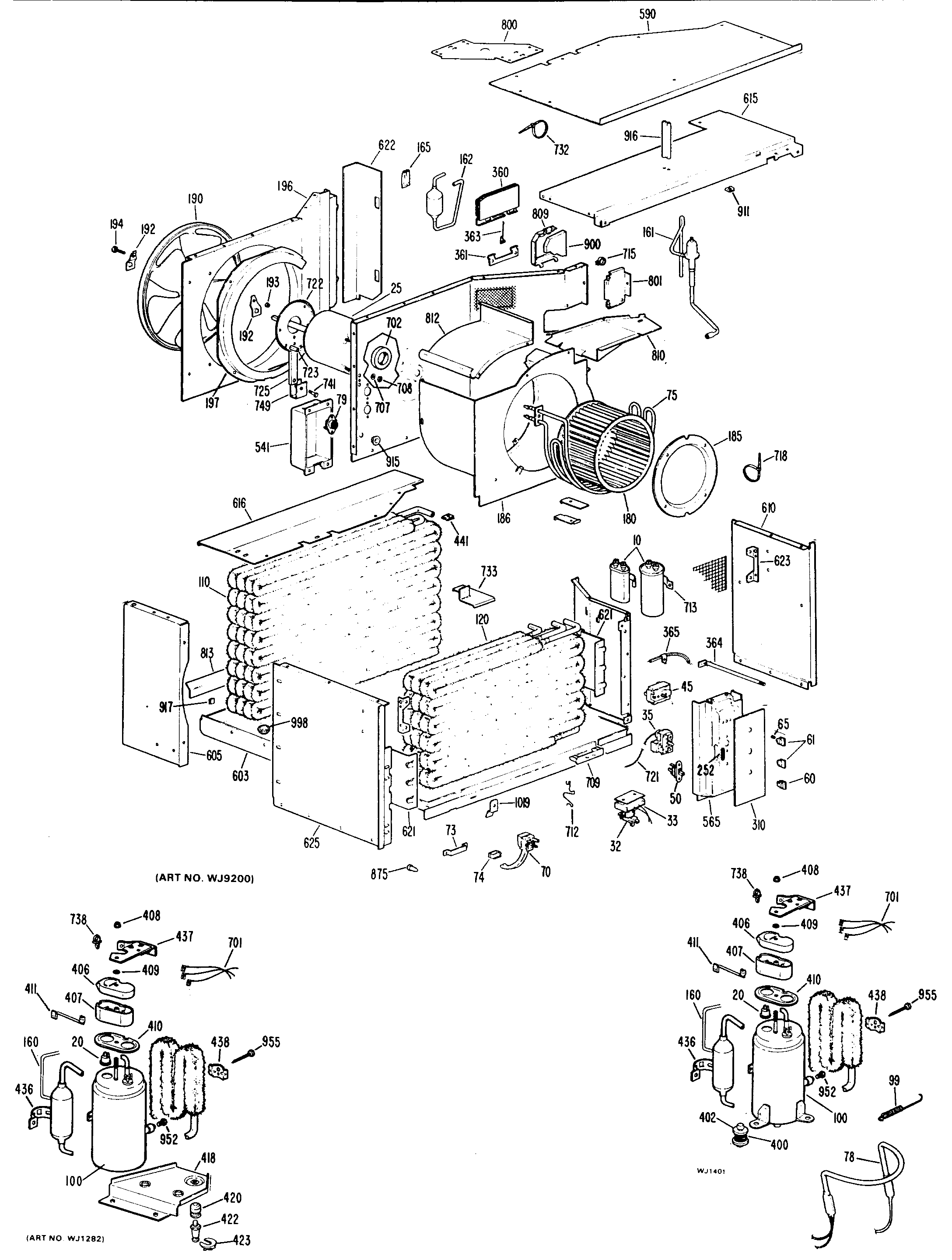

Position	Product
10	GEN WJ20X0599
10	GEN WJ20X0546
20	GEN WJ23X0088
25	GEN WJ94X0513
32	GEN WJ28X0230
33	GEN WJ70X0273
35	GEN WJ28X0512
45	MAIN SWITCH 7 POS ROTARY
50	GEN WJ26X0167
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	GEN WJ35X0102
73	CLAMP POWER CORD
74	GROMMET CORD POWER
160	CAPILLARY .036 CUT TO 14
160	CAPILLARY .049 CUT-25"
165	GEN WJ56X0037
165	GEN WJ56X0051
180	INDOOR BLOWER
186	GEN WJ76X0231
190	GEN WJ73X0147
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0236
197	BAFFLE
310	GEN WJ07X0657
360	GEN WJ70X0283
360	GEN WJ70X0166
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	GEN WJ14X0096
365	GEN WJ14X0095
406	TERMINAL CAP
407	GEN WJ79X0409
408	GEN WJ01X0292
410	GEN WJ43X0333
411	CONDUCTOR TERMINAL CAP
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
437	GEN WJ66X0426
438	GEN WJ03X0143
565	GEN WJ79X0358
590	GEN WJ79X0232
603	GEN WJ89X0087
610	GEN WJ82X0142
615	GEN WJ79X0348
616	GEN WJ79X0374
621	GEN WJ81X0068
622	GEN WJ82X0149
625	GEN WJ82X0144
701	GEN WJ36X0016
702	GEN WJ43X0351
708	GEN WJ01X0445
709	SINK HEAT
713	GEN WJ03X0317
713	GEN WJ03X0279
715	GEN WJ02X0410
718	GEN WJ02X0416
721	SLEEVE CAPILLARY THERM
732	WIRE STRAP
738	GEN WJ02X0420
800	GEN WJ65X0321
801	PLATE
809	TUBE SEAL CLAMP
810	COVER EVAPORATOR
813	GEN WJ70X0152
900	GEN WJ60X0018
916	SPACER
917	GEN WJ02X0263
952	SCREW 10-16 X 5/8" HEX
955	GEN WZ04X0268
998	PLUG 30FR HOLD DOWN BOLT
998	GEN WJ01X0402
1019	CLIP CHASSIS TO CABINET
