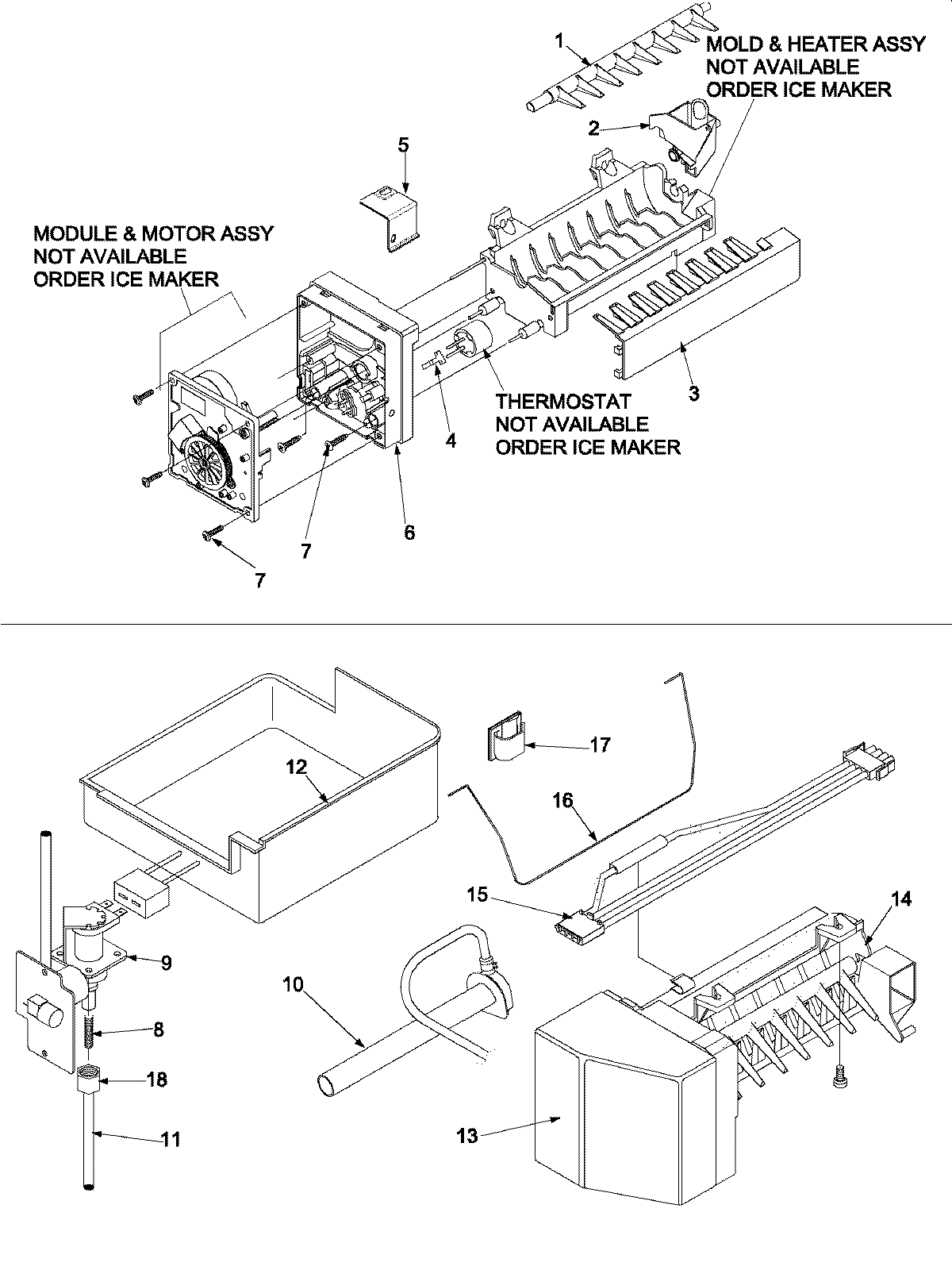

AFC2033DRB 09 – OPTIONAL ICE MAKER KIT IC11B P1328003W

Products

Position	Product
NI	MAY 67001264
NI	681390 Whirlpool Refrigerator Screw
NI	MAY 95108-1
NI	Clip
NI	W10833902 Whirlpool Refrigerator Clamp
NI	W11033771 Whirlpool Refrigerator Coupling
NI	MAY A3223101
NI	MAY M0211018
NI	MAY 10549601
NI	MAY 67001258
NI	MAY 10526701
NI	8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
1	WP627843 Whirlpool Refrigerator Ejector Arm
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP2182124 Whirlpool Refrigerator Stripper Arm
4	WP2315522 Whirlpool Refrigerator Clip
5	BRACKET, MODULE & HEATER
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	SCREW
8	SPRING, ANTI KINK
9	WP67003753 Whirlpool Refrigerator Inlet Valve
10	ELBOW, FILL TUBE
11	MAY B5705323
12	WP67001255 Whirlpool Ice Bucket
13	WPW10289690 Whirlpool Ice Maker Cover
14	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	ARM-SHUT
17	WPM0104106 Whirlpool Refrigerator Clip
18	NUT, SLEEVE
