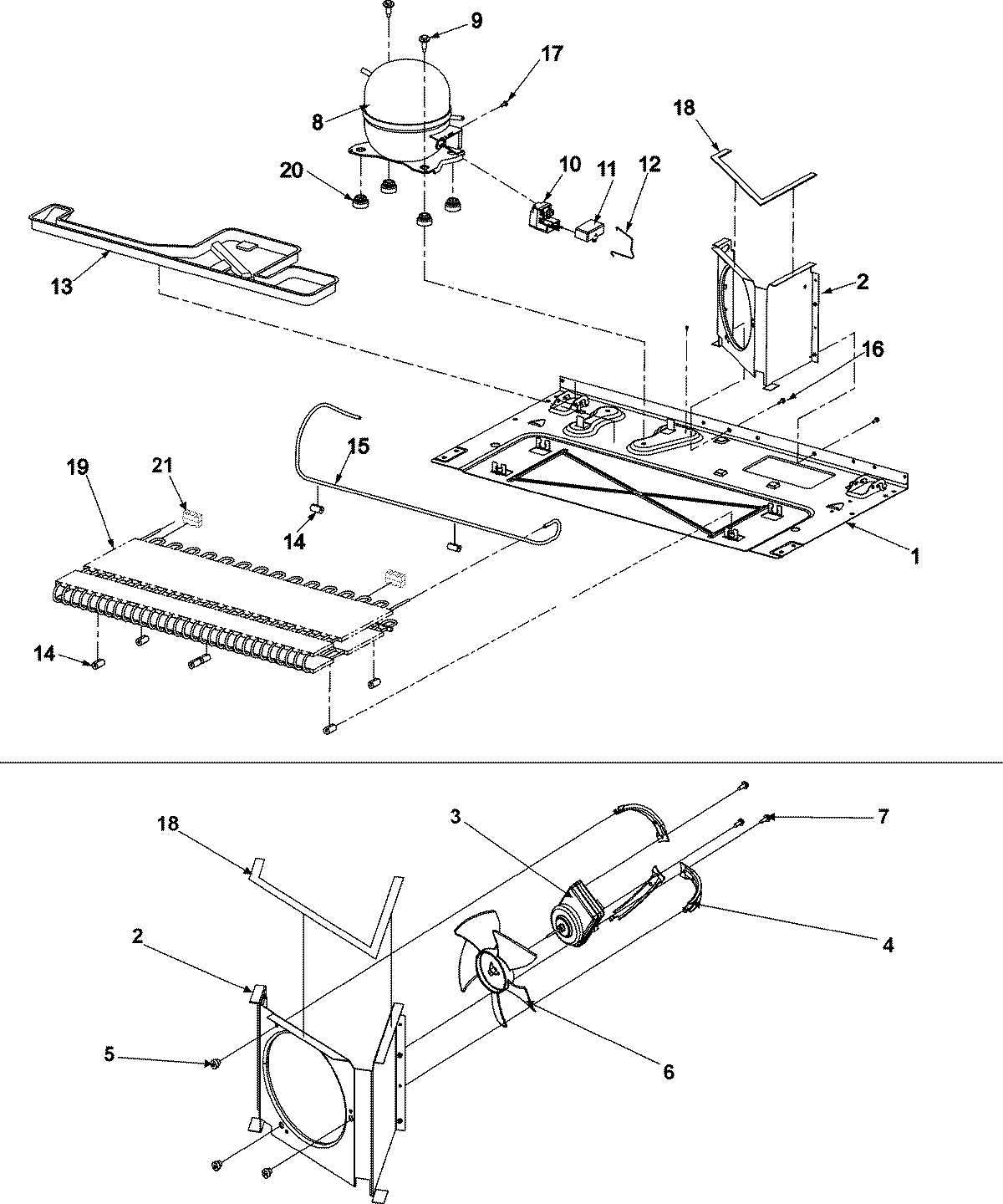

AFC2033DRQ 02 – COMPRESSOR

Products

Position	Product
NI	67004955 Whirlpool Refrigerator MC Harness
1	MAY 67005889
2	SHROUD, CONDENSER FAN
3	MAY 67004432
4	MAY 67004953
5	GROMMET, BRACKET
6	W10156818 Whirlpool Refrigerator Fan Blade
6	WP12587601 Whirlpool Refrigerator Condenser Blade
7	WP67004954 Whirlpool Refrigerator Screw
8	W10160407 Whirlpool Refrigerator Compressor
9	MAY 67003790
10	OVERLOAD/RELAY W/CAPACITOR
11	Capacitor
12	MAY 12576801
13	MAY 67004744
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004700
16	MAY M0238616
17	MAY M0231604
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	WP67006131 Whirlpool Refrigerator Condenser
20	67003493 Whirlpool Refrigerator Compressor Grommet
