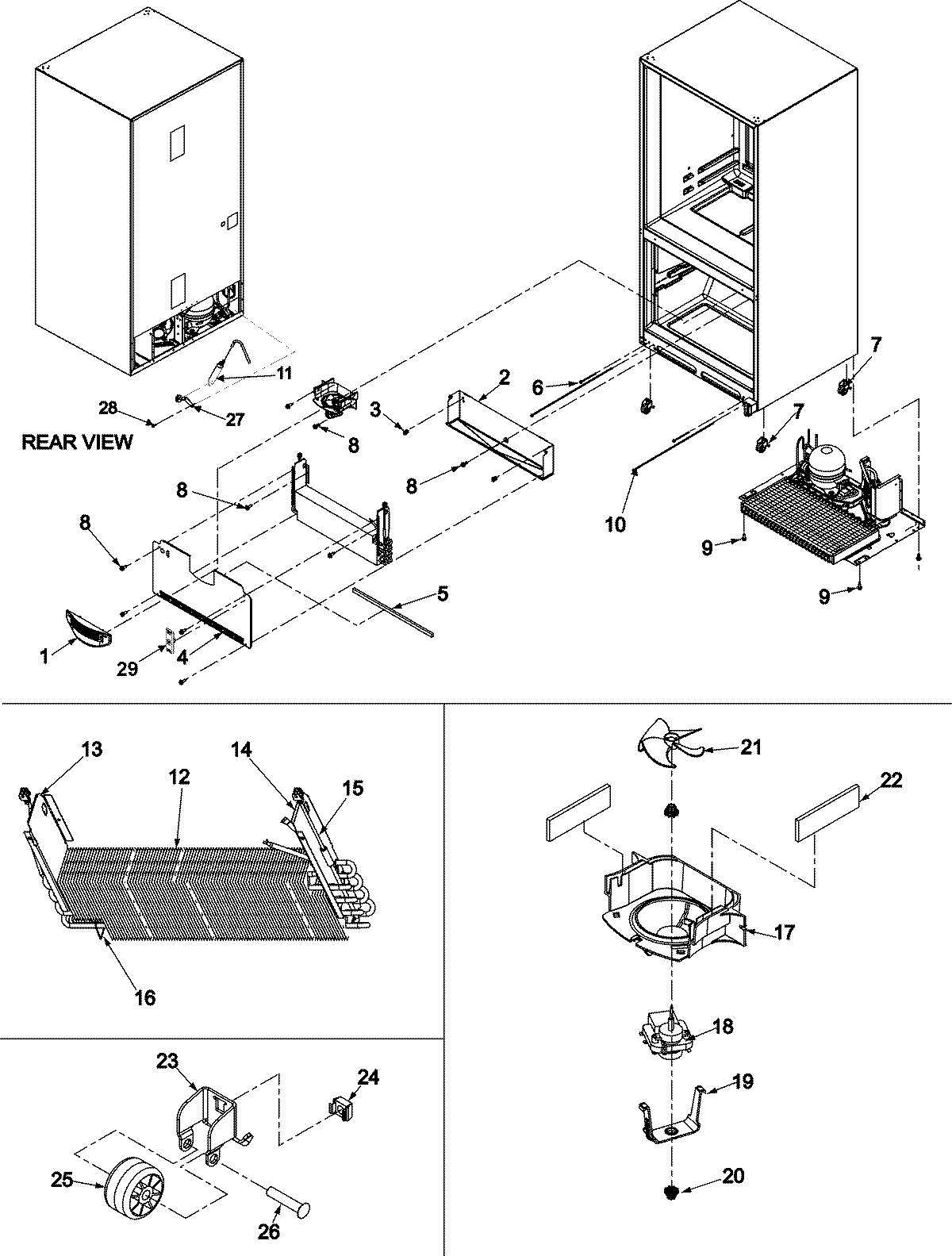

AFC2033DRQ 04 – EVAPORATOR AREA & ROLLERS

Products

Position	Product
NI	MAY 67003931
NI	12001937 Whirlpool Refrigerator 42-Degree Defrost Thermostat
1	WPW10175909 Whirlpool Grille Assembly
2	MAY 67002490
3	MAY 10623002
4	MAY 67004018
5	W11159728 Whirlpool Refrigerator Gasket
6	71003131 Whirlpool Oven Screw
7	ROLLER BRACKET ASSY
8	MAY M0238616
9	MAY M0260242
10	MAY 67004685
11	DRIER
12	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
13	MAY 67001083
14	MAY 67001084
15	WP67002493 Whirlpool Refrigerator Defrost Heater
16	W11673433 Whirlpool Clip
18	WPW10128551 Whirlpool Evaporator Fan Motor
19	MAY 67005633
20	WP67002780 Whirlpool Refrigerator Grommet
21	MAY 12217201
22	W10856123 Whirlpool Refrigerator Gasket
23	12456801V Whirlpool Refrigerator Bracket
24	MAY M0286708
25	WP10450603 Whirlpool Refrigerator Roller
26	MAY M1205302
27	MAY 10547002
28	MAY 67002525
29	WP67003924 Whirlpool Refrigerator Cover
