AFC2033DRQ 10 – REF DR STORAGE & CENTER HINGES

AFC2033DRQ 10 – REF DR STORAGE & CENTER HINGES

Written by

in

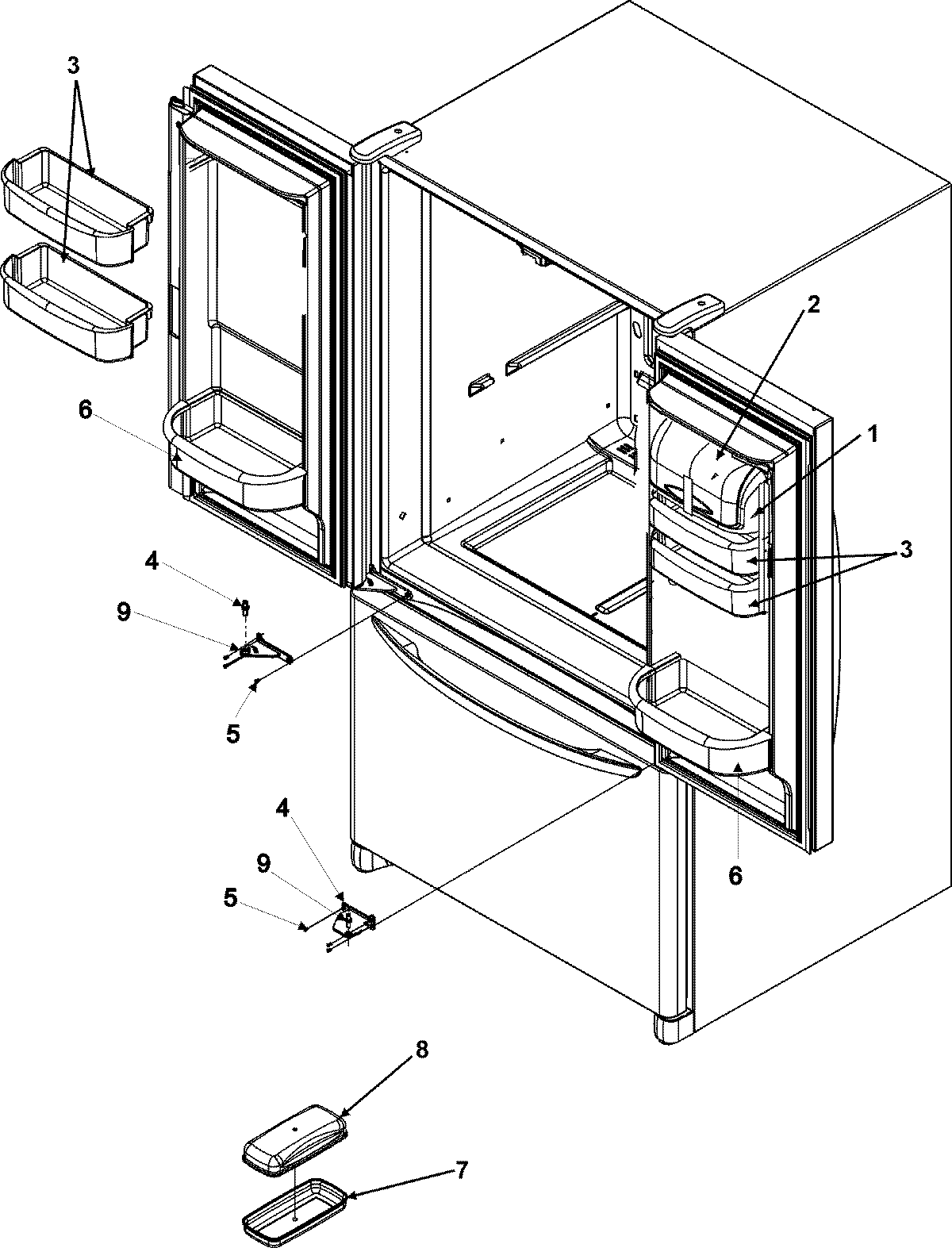

AFC2033DRQ 10 – REF DR STORAGE & CENTER HINGES

Products

PositionProduct
1WP67001279 Whirlpool Refrigerator Dairy Tray
2WP12744905 Whirlpool Refrigerator Compressor Door
3WPW10324005 Whirlpool Refrigerator Cantilever Bin
4WP67006642 Whirlpool Refrigerator Pin
5MAY M0226233
6WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
7MAY 67004404
8MAY 67004405
9WP12607103WD Whirlpool Refrigerator Center Hinge
