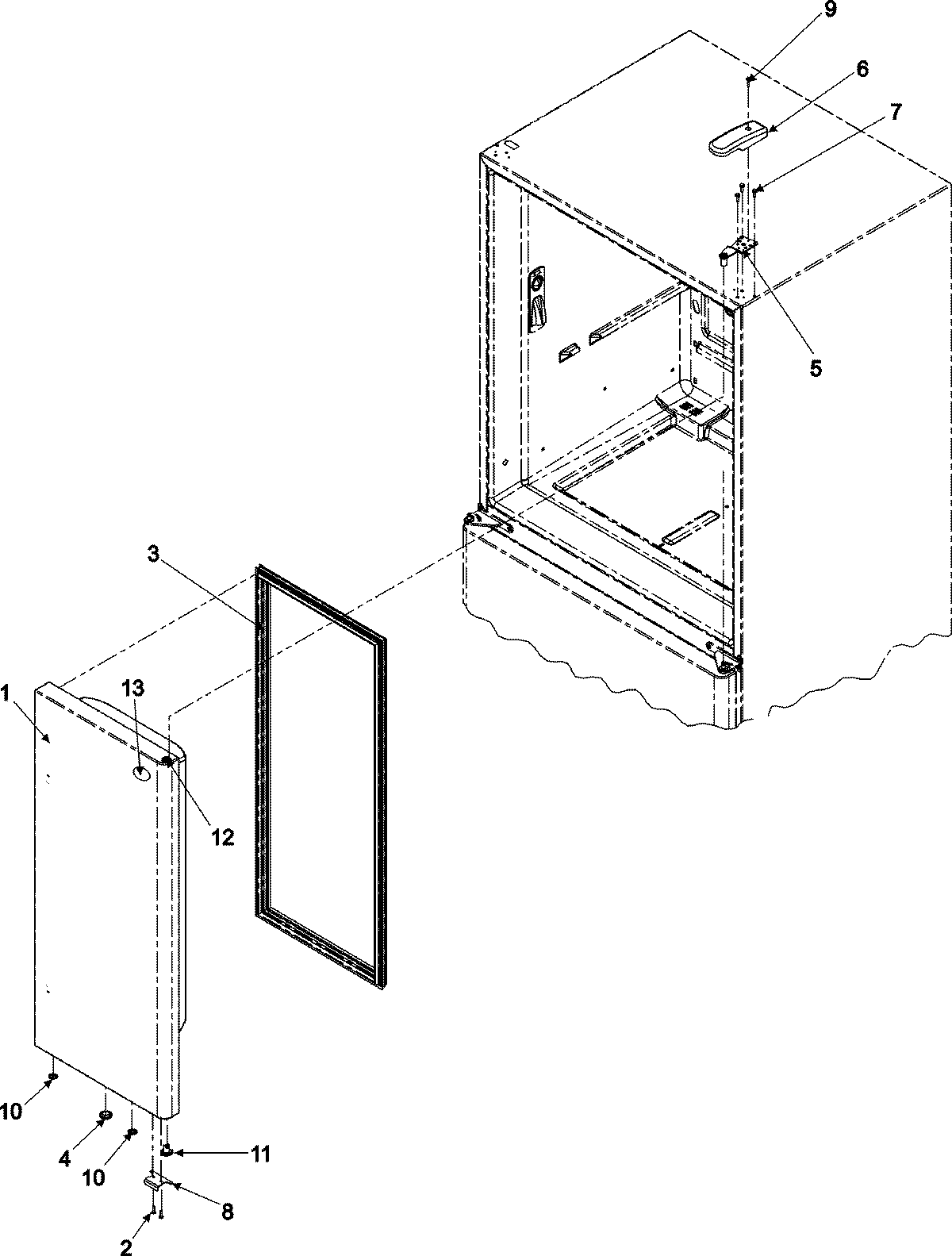

AFC2033DRQ 12 – RIGHT REFRIGERATOR DOOR

AFC2033DRQ 12 – RIGHT REFRIGERATOR DOOR

Written by

in

AFC2033DRQ 12 – RIGHT REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67002725
2MAY 67004822
3W10830189 Whirlpool Refrigerator Door Gasket
4MAY A3080002
5WP12566606ED Whirlpool Refrigerator Door Hinge
5MAY 12579702
6COVER, TOP HINGE (RT-BSQ)
7MAY M0238731
867003781 Whirlpool Refrigerator Door Stop (BSQ)
812968202W Whirlpool Refrigerator Door Stop
9WP8281196 Whirlpool Screw
1010712401 Whirlpool Refrigerator Vent Plug (White)
11WP67003638 Whirlpool Closing Cam
1212028601W Whirlpool Refrigerator Hinge Bushing
