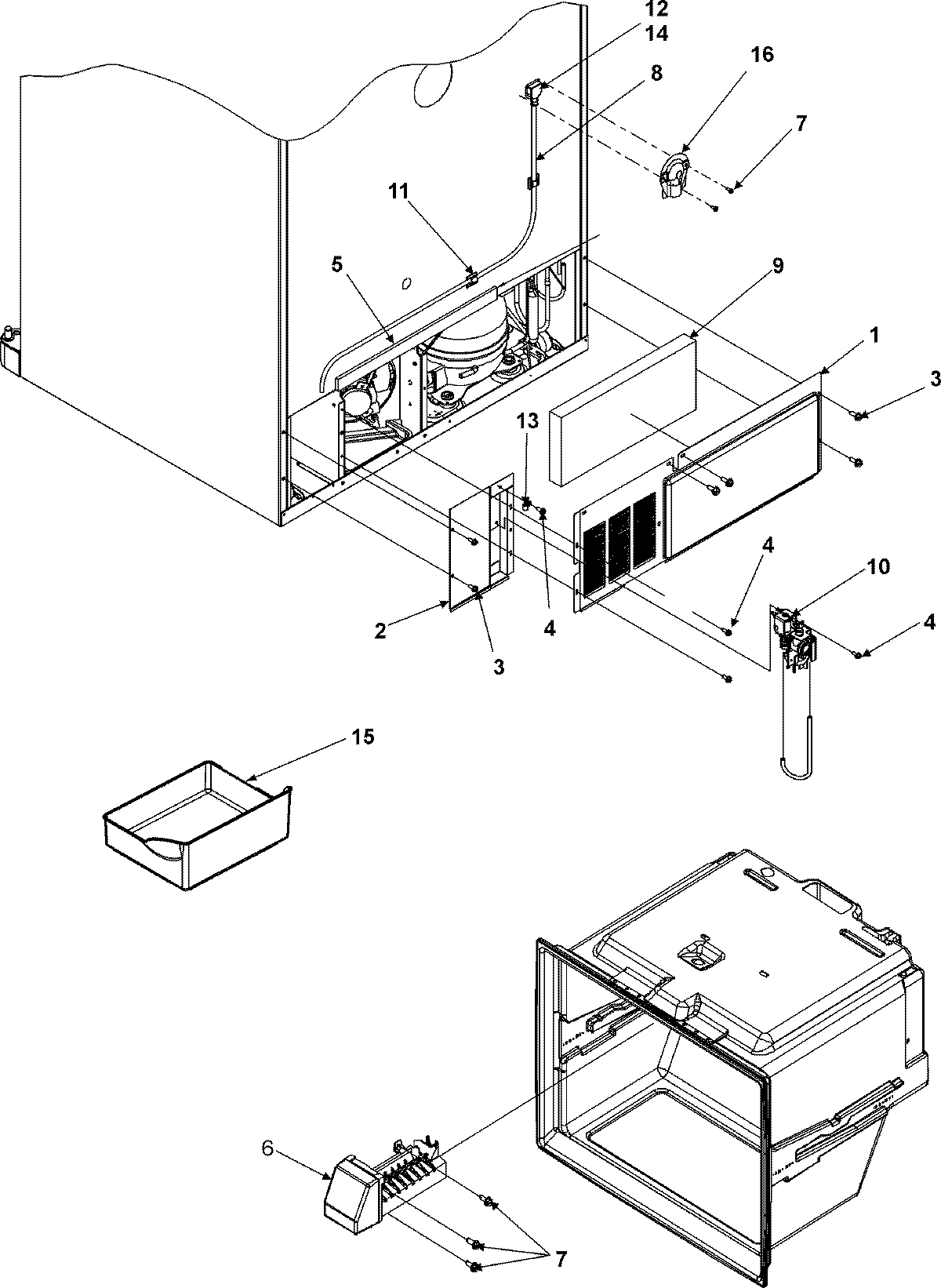

AFC2033DRS 01 – CABINET BACK

Products

Position	Product
1	BACK, MACH COMP
2	MAY 12479803
3	MAY M0238616
4	681390 Whirlpool Refrigerator Screw
5	Gasket
6	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
6	WPD7813010 Whirlpool Refrigerator Wire Harness
6	ARM-SHUT
6	WPW10289690 Whirlpool Ice Maker Cover
7	MAY 67004822
8	MAY A3223101
8	Tubing, Plastic
9	67003796 Whirlpool Refrigerator Fiber Acoustic
10	WP67003753 Whirlpool Refrigerator Inlet Valve
11	WPM0104106 Whirlpool Refrigerator Clip
12	Clip
13	W10833902 Whirlpool Refrigerator Clamp
14	W11181718 Whirlpool Refrigerator Water Tube
15	WP67001255 Whirlpool Ice Bucket
16	WP67006506 Whirlpool Refrigerator Power Cord
16	COVER, WATER LINE
