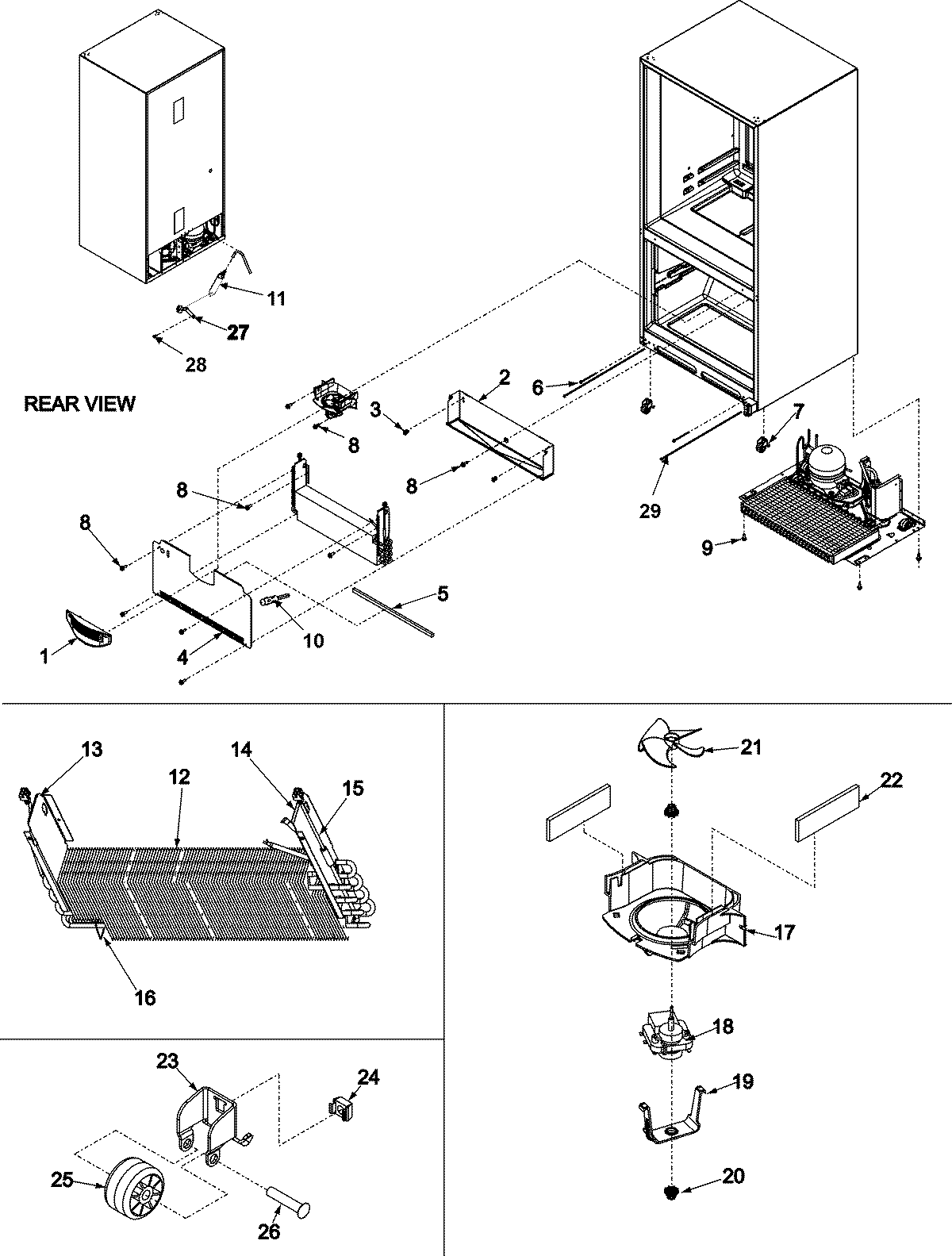

AFD2535DEB 04 – EVAPORATOR AREA & ROLLERS

Products

Position	Product
NI	HARNESS, EVAP HEATER
NI	WP67003426 Whirlpool Refrigerator Thermostat
1	WPW10175909 Whirlpool Grille Assembly
2	MAY 67002490
3	MAY 10623002
4	MAY 67004018
5	Gasket, Bottom
6	71003131 Whirlpool Oven Screw
7	ROLLER BRACKET ASSY
8	MAY M0238616
9	MAY M0260242
10	12002355 Whirlpool Refrigerator Thermistor Kit
11	DRIER
12	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
13	MAY 67001083
14	MAY 67001084
15	WP67002493 Whirlpool Refrigerator Defrost Heater
16	W11673433 Whirlpool Clip
18	12002744 Whirlpool Refrigerator Evaporator Fan Motor Kit
20	WP67002780 Whirlpool Refrigerator Grommet
21	MAY 12217201
22	W10856123 Whirlpool Refrigerator Gasket
23	12456801V Whirlpool Refrigerator Bracket
24	MAY M0286708
25	MAY 10450602
26	MAY M1205302
27	MAY 10547002
28	MAY M0211018
29	MAY 67002781
