AFD2535DEB 12 – REFRIGERATOR SHELVING

AFD2535DEB 12 – REFRIGERATOR SHELVING

Written by

in

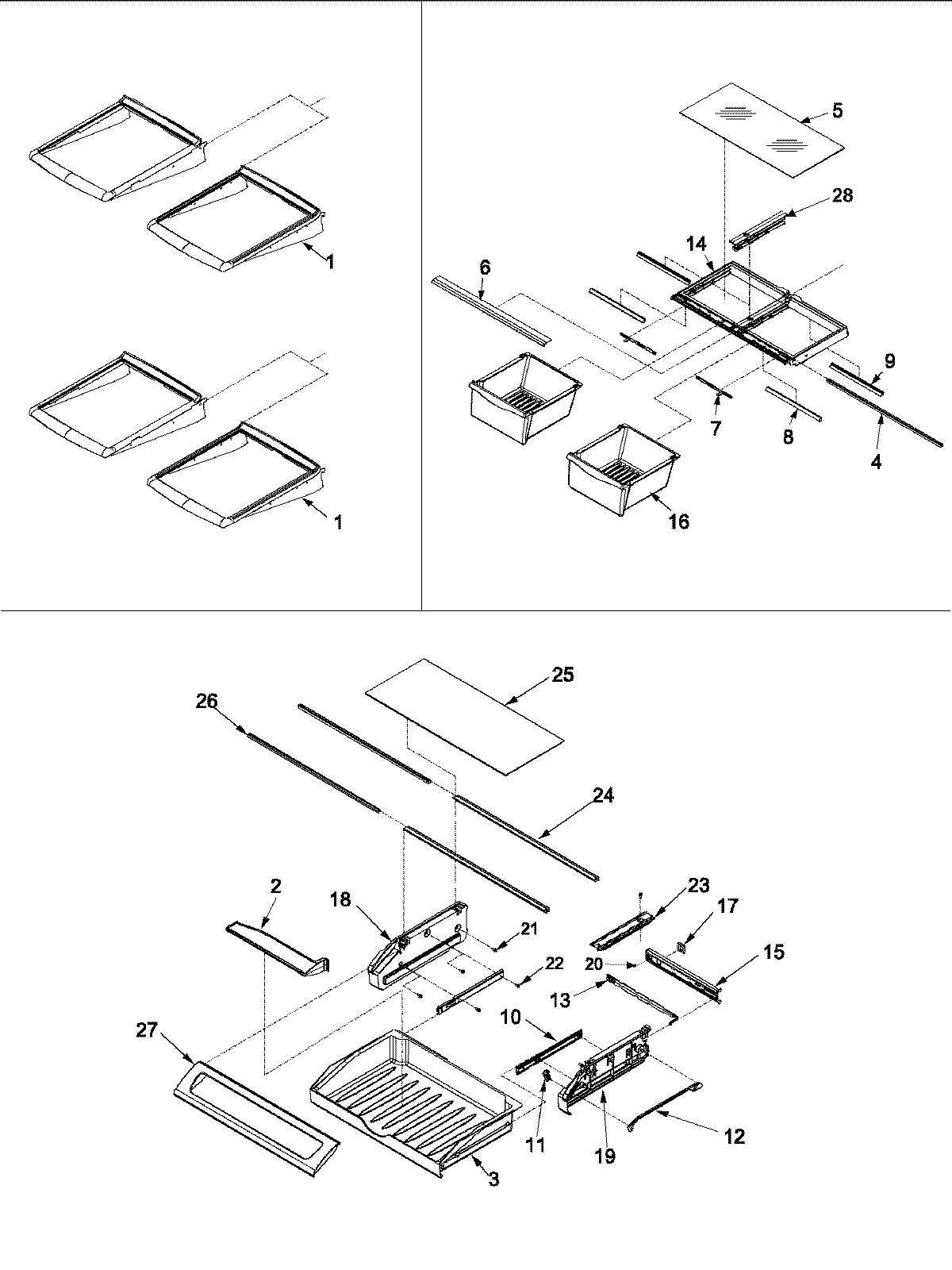

AFD2535DEB 12 – REFRIGERATOR SHELVING

Products

PositionProduct
1MAY 67004637
2WP67002759 Whirlpool Refrigerator Divider
3WP67003531 Whirlpool Drawer Assembly
4WP12642303WD Whirlpool Refrigerator Drawer Support
5WP67006704 Whirlpool Glass Crisper Cover
6EXTR, CRISPER FRONT
7SLIDE
8WP67003417 Whirlpool Refrigerator Front Seal
9WP67002513 Whirlpool Refrigerator Rear Crisper Seal
10WPW10235370 Whirlpool Refrigerator Glide
11W11498983 Whirlpool Refrigerator Knob
12WP67003795 Whirlpool Refrigerator Temperature Control Bar
13MAY 67003793
14WP12603701 Whirlpool Refrigerator Support
14WP67003854 Whirlpool Shelf Frame
15MAY 67002328
16MAY 67004697
1767002329 Whirlpool Refrigerator Pantry Gasket
18W10874836 Whirlpool Endcap Assembly Left Hand and Right
20SCREW, SM
21MAY M0238636
22MAY M0211533
23WP67001719 Whirlpool Refrigerator Track
24WP67006010 Whirlpool Refrigerator Shelf Trim
25MAY 67002761
26WP12227305WD Whirlpool Drawer Support
27W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
28WPW10326469 Whirlpool Drawer Slide Rail
