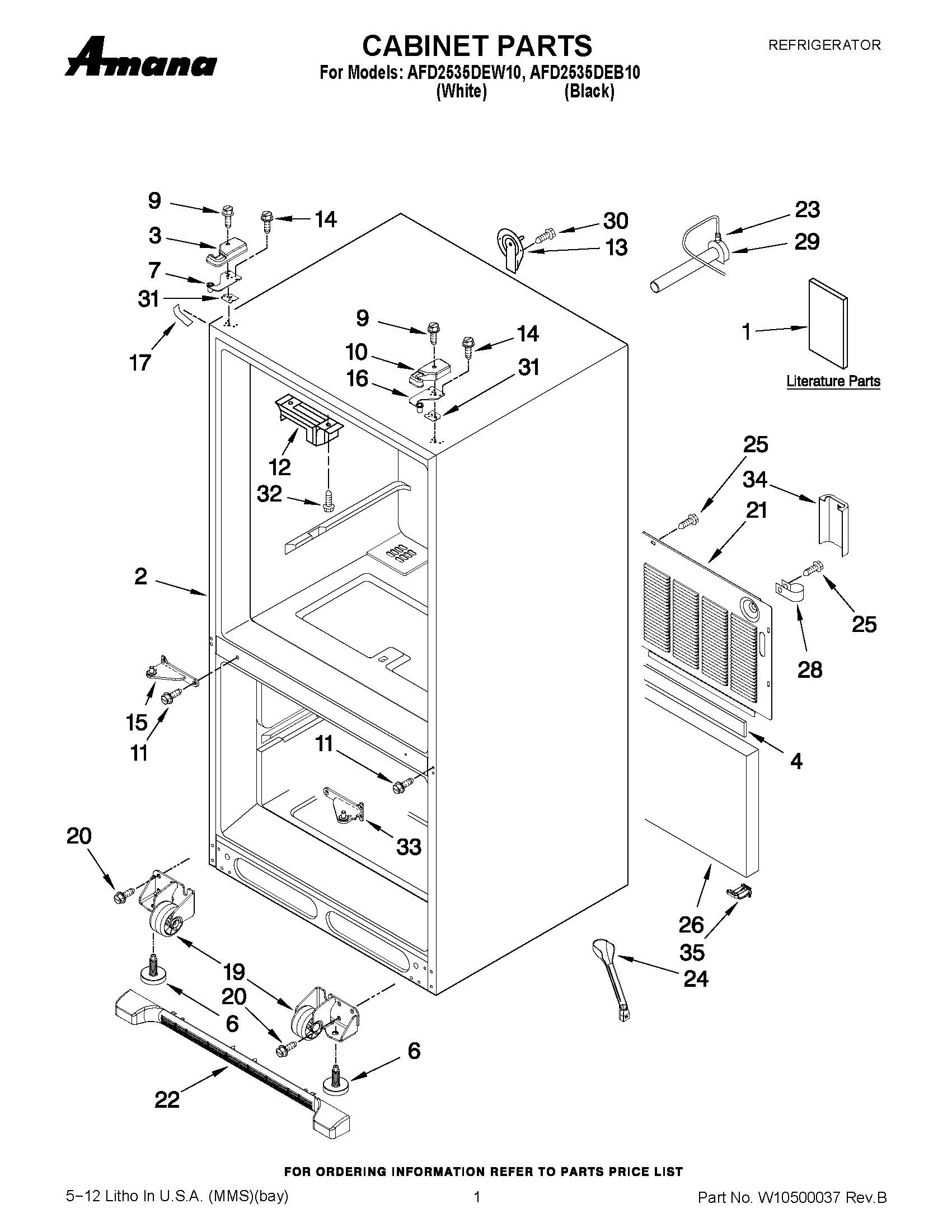

AFD2535DEB10 01 – CABINET PARTS

AFD2535DEB10 01 – CABINET PARTS

Written by

in

AFD2535DEB10 01 – CABINET PARTS

Products

Position	Product
1	MAY W10183263
1	MAY W10475389
1	MAY W10366212
2	LINER (NOT A SERVICEABLE PART)
3	MAY W10177766
3	COVER, LEFT HINGE
4	MAY B5759655
6	Brake, Foot
7	Hinge, Top Left
9	MAY 12992602
10	MAY 12684202B
10	MAY 12684202W
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	Hinge, Center (LT) (White)
15	HINGE, CENTER (BLACK, LEFT)
16	Hinge, Top
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY W10211855
22	MAY W10244561N
22	MAY W10244559N
23	Clip
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
28	CLAMP, TUBE
29	MAY W10137519
30	MAY 12990504
31	MAY 12579702
32	SCREW (2)
33	Hinge, Center (RT) (White)
33	HINGE, CENTER (BLACK, RIGHT )
34	GUARD-WATER VALVE
35	MAY 12831101
