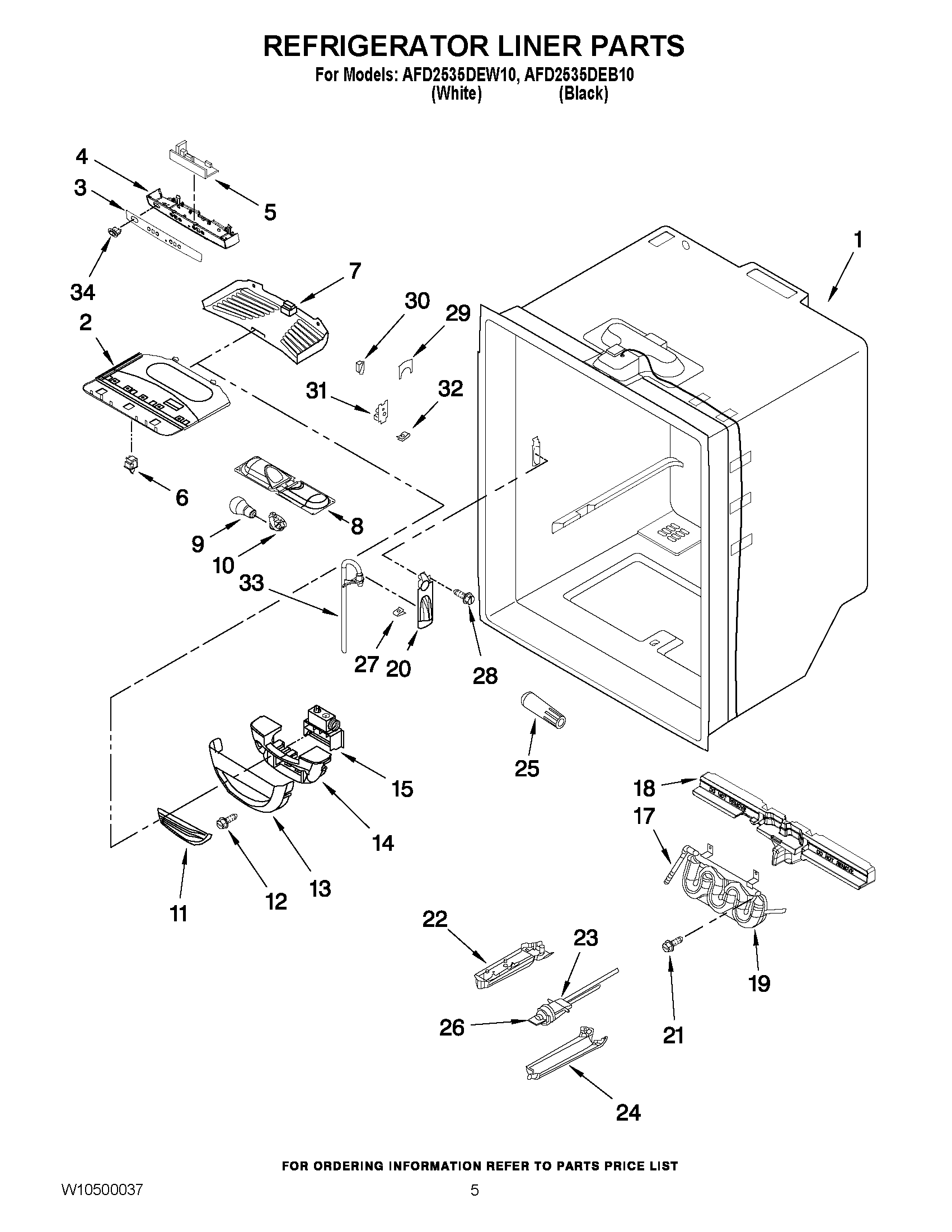

AFD2535DEB10 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES THERMISTOR)
1	LINER (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	MAY W10317181
4	MAY 12806407
5	MAY 12784415V
6	SWITCH, LIGHT (2)
7	MAY 12806501N
8	MAY W10443023
9	BULB, LIGHT
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	DAMPER, CONTROL
17	WP2300868 Whirlpool Refrigerator Fitting
18	MAY W10117358
19	MAY 12706112
20	MAY 12706909
21	MAY 12990513
22	PLATE
23	MAY 12590620
24	WP12568001 Whirlpool Filter Cover
25	MAY UKF8001
26	MAY 12664501SP
27	Clip, Facade (2)
28	SCREW (2)
29	FACADE, DISP (TOP)
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	MAY 12707303
32	MAY 12251001
33	MAY 12707206
34	MAY 12861601
