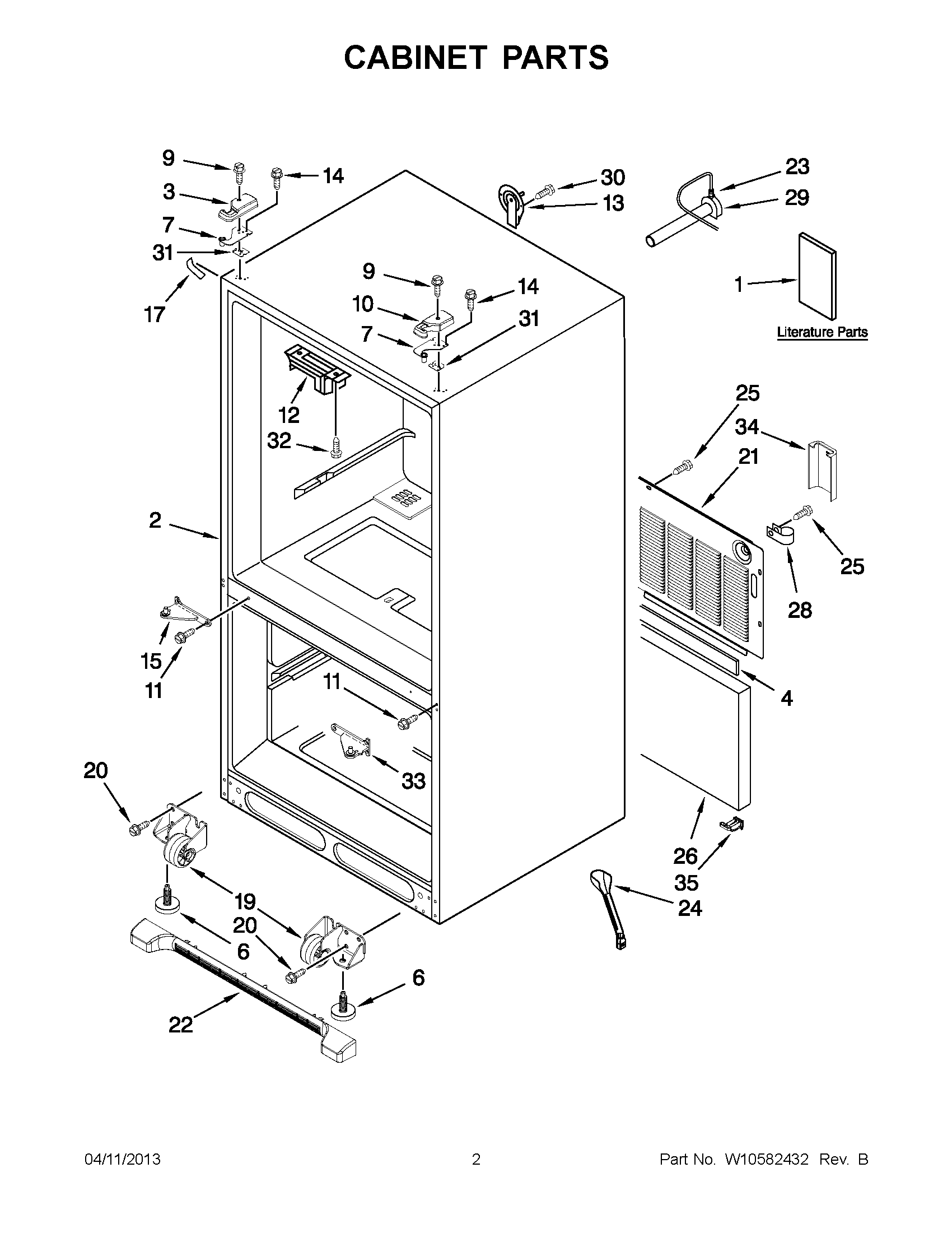

AFD2535DEB11 01 – CABINET PARTSadmin2025-04-26T09:22:30+00:00AFD2535DEB11 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10183263 |
| 1 | MAY W10517966 |
| 1 | MAY W10366212 |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3 | COVER, LEFT HINGE |
| 3 | MAY W10177766 |
| 4 | MAY B5759655 |
| 6 | Brake, Foot |
| 7 | MAY 12566607ED |
| 7 | MAY 12566606ED |
| 9 | MAY 12992602 |
| 10 | MAY 12684202B |
| 10 | MAY 12684202W |
| 11 | MAY 12990101 |
| 12 | Block, Pivot |
| 13 | MAY 12726003 |
| 14 | SCREW (6) |
| 15 | Hinge, Center (LT) (White) |
| 15 | HINGE, CENTER (BLACK, LEFT) |
| 17 | COVER, CORNER (BLACK) |
| 17 | Cover, Corner (2) (White) |
| 19 | ROLLER ASSEMBLY (RIGHT HAND) |
| 19 | ROLLER ASSEMBLY (LEFT HAND) |
| 20 | Screw (8) |
| 21 | MAY W10211855 |
| 22 | MAY W10534153N |
| 22 | MAY W10534154N |
| 23 | Clip |
| 24 | TUBE-DRAIN |
| 25 | SCREW (10) |
| 26 | Insulation, Sound |
| 28 | CLAMP, TUBE |
| 29 | MAY 10463203 |
| 30 | MAY 12990504 |
| 31 | MAY 12579702 |
| 32 | Screw (4) |
| 33 | Hinge, Center (RT) (White) |
| 33 | HINGE, CENTER (BLACK, RIGHT ) |
| 34 | GUARD-WATER VALVE |
| 35 | MAY W10528513 |
