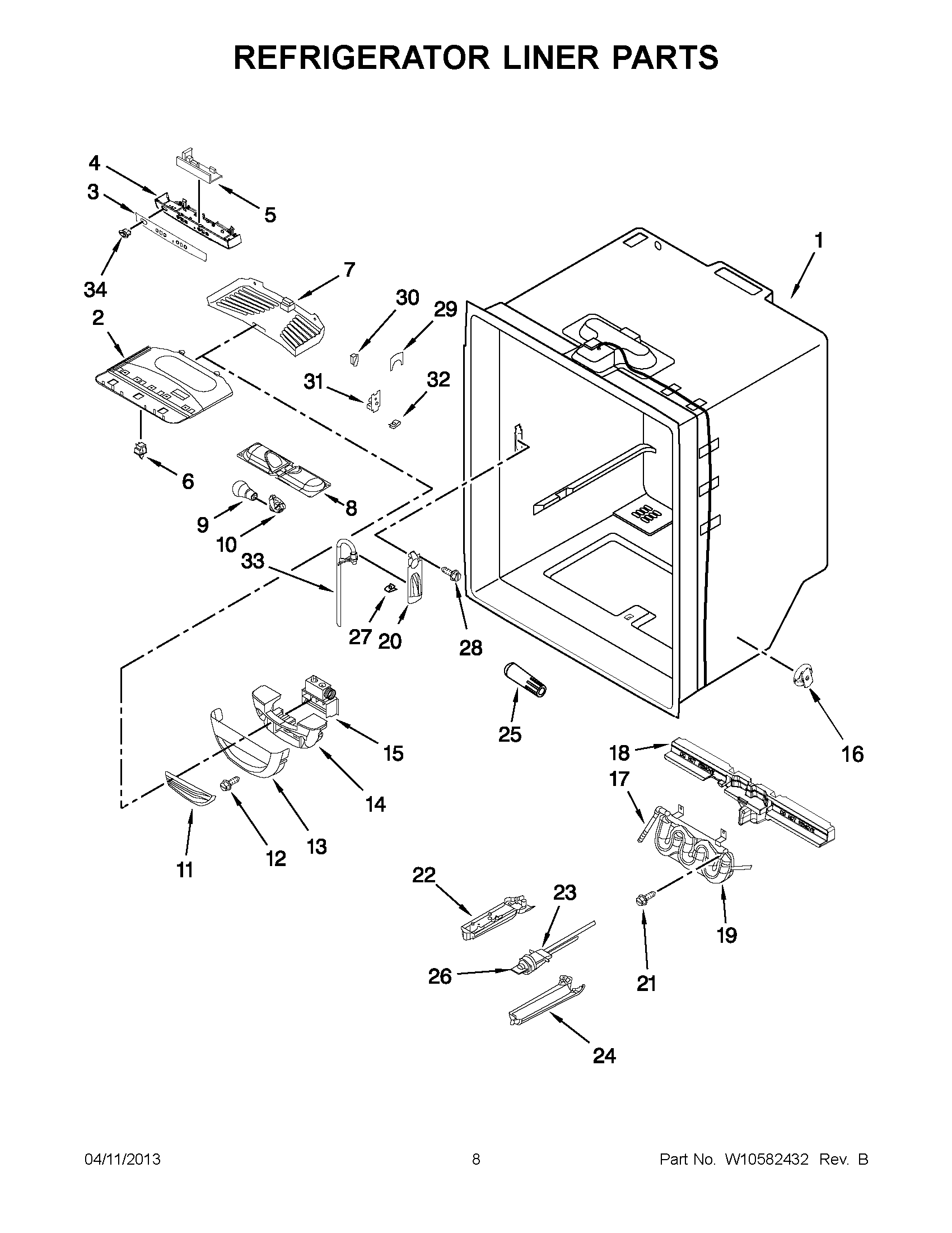

AFD2535DEB11 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	HARNESS, CONTROLS (REFRIGERATOR)
NI	LINER (NOT A SERVICEABLE PART)
2	MAY W10464764
3	MAY W10317181
4	MAY W10464775
5	MAY W10503278
6	SWITCH, LIGHT (2)
7	MAY 12806501N
8	MAY W10443023
9	BULB, LIGHT
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	DAMPER, CONTROL
16	MOUNT, CRISPER
17	WP2300868 Whirlpool Refrigerator Fitting
18	MAY W10117358
19	MAY 12706112
20	MAY W10585703
21	MAY 12990513
22	PLATE
23	MAY 12590620
24	WP12568001 Whirlpool Filter Cover
25	MAY W10336197
26	MAY 12664501SP
27	Clip, Facade (2)
28	SCREW (2)
29	FACADE, DISP (TOP)
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	MAY W10585699
32	MAY 12251001
33	MAY 12707206
34	MAY 12861601
