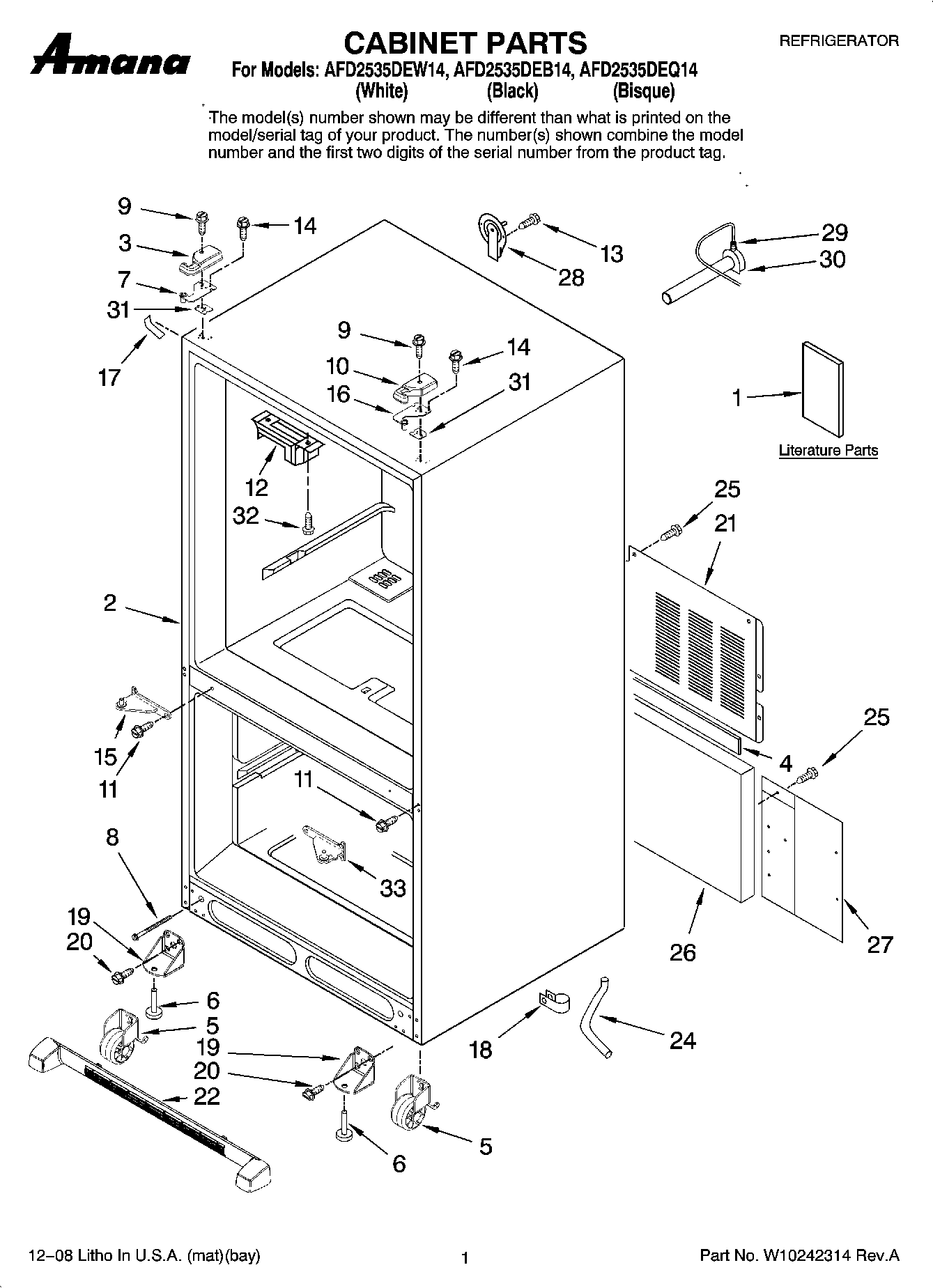

AFD2535DEB14 01 – CABINET PARTS

AFD2535DEB14 01 – CABINET PARTS

Written by

in

AFD2535DEB14 01 – CABINET PARTS

Products

PositionProduct
1MAY 12827952
1Use & Care Guide
1MAY W10123901
3MAY 12684201B
3COVER, TOP HINGE (LT-BSQ)
3MAY 12684201W
4Gasket
5Roller Assy.(Rear)
6W11177593 Whirlpool Leveling Feet
7Hinge, Top Left
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10MAY 12684202B
10COVER, TOP HINGE (RT-BSQ)
10MAY 12684202W
11MAY 67005822
12WP67003405 Whirlpool Pivot Block
13MAY 67006433
14WP489349 Whirlpool Refrigerator Screw
1567006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
15W10918113 Whirlpool Refrigerator Door Hinge
16Hinge, Top
1767003484 Whirlpool Refrigerator White Corner Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
17MAY 67003486
1867001067 Whirlpool Refrigerator Drain Tube Clip
1912906303WD Whirlpool Refrigerator Bracket
20MAY 67006564
21MAY 67006101
22WPW10534154 Whirlpool Refrigerator Front Grille
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22Grille Assembly (Includes Clips) (Bisque)
24MAY 67001066
25Screw (10)
2667003796 Whirlpool Refrigerator Fiber Acoustic
27MAY 12479803
28COVER, WATER LINE
29Clip
30MAY W10137519
31MAY 12579702
32WP7101P126-60 Whirlpool Screw
33MAY 67006379
33W10918168 Whirlpool Refrigerator Door Hinge
