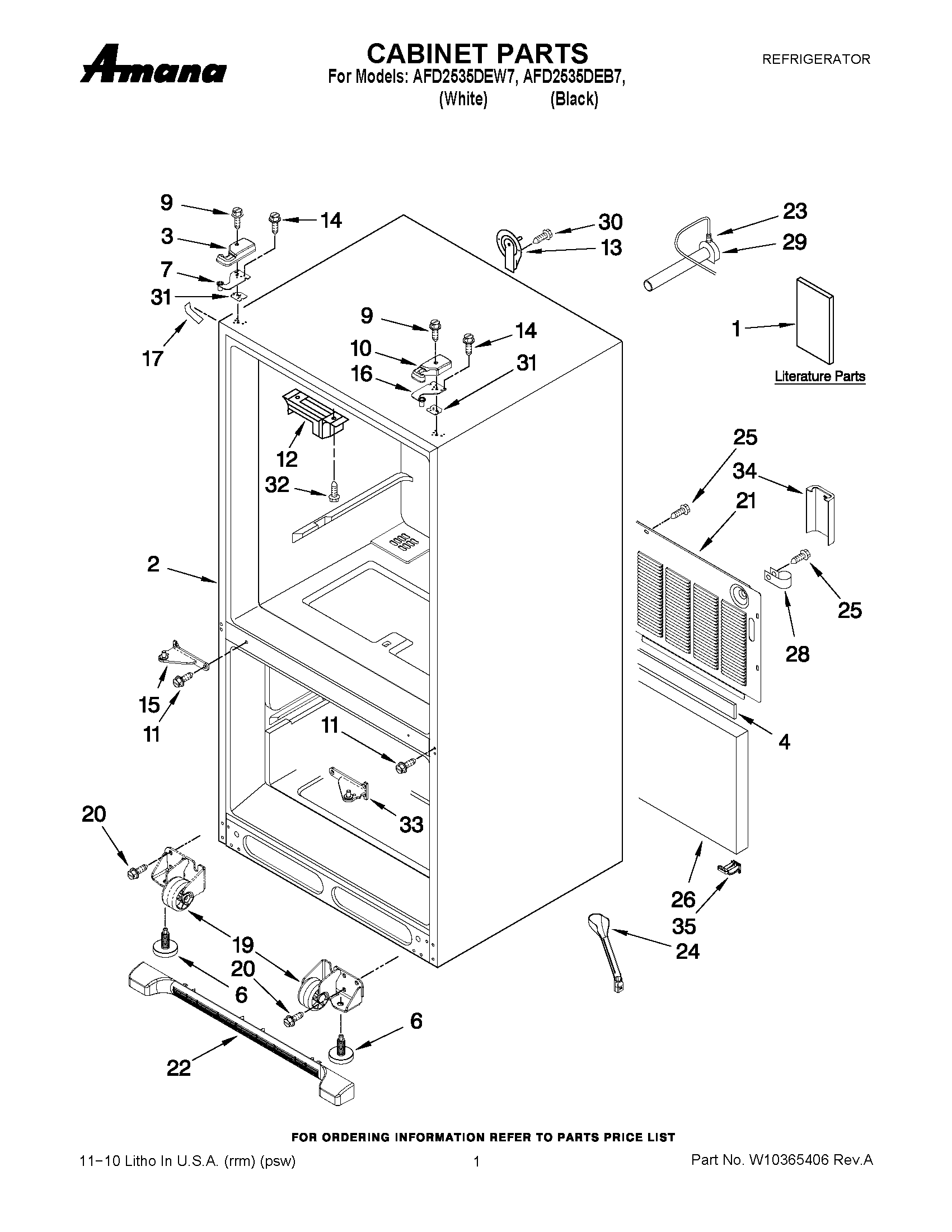

AFD2535DEB7 01 – CABINET PARTS

Products

Position	Product
1	MAY W10183263
1	TECH SHEET
1	MAY W10208785
2	LINER (NOT A SERVICEABLE PART)
3	MAY W10177766
3	COVER, LEFT HINGE
4	MAY B5759655
6	Brake, Foot
7	Hinge, Top Left
9	MAY 12992602
10	MAY 12684202B
10	MAY 12684202W
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	Hinge, Center (LT) (White)
15	HINGE, CENTER (BLACK, LEFT)
16	Hinge, Top
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY W10211855
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	MAY W10244559
23	CLIP
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
28	CLAMP, TUBE
29	MAY W10137519
30	MAY 12990504
31	MAY 12579702
32	SCREW (2)
33	Hinge, Center (RT) (White)
33	HINGE, CENTER (BLACK, RIGHT )
34	GUARD-WATER VALVE
35	MAY 12831101
