AFD2535DEB8 06 – SHELF PARTS
Written by
in

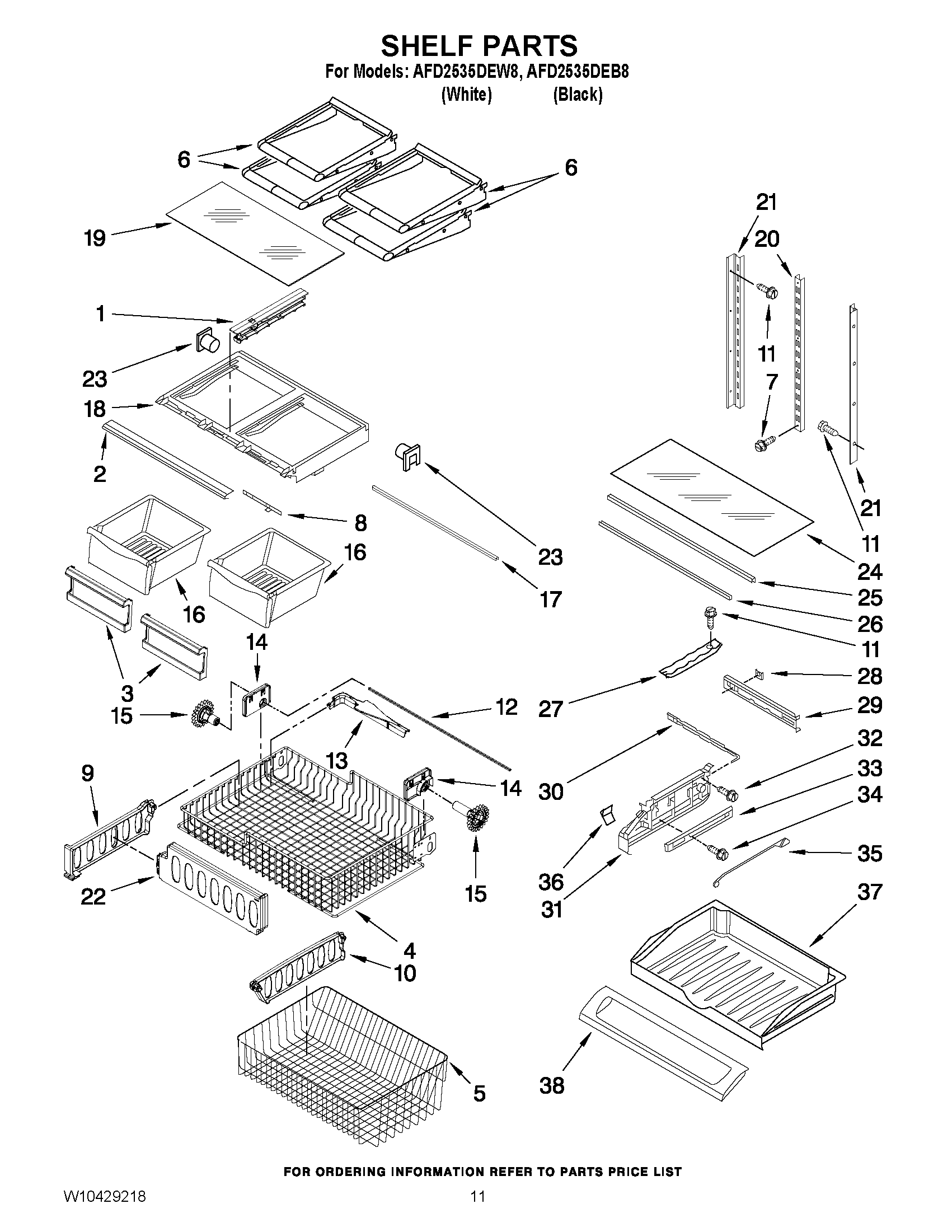

AFD2535DEB8 06 – SHELF PARTS
Products
Position
Product
1
RAIL, CENTER
2
MAY W10231344
3
FRONT-CRISPER PAN
4
MAY W10209706
5
Basket, Freezer (Lower)
6
SHELF, GLIDE (4)
7
MAY W10215666
8
MAY 12530805SP
9
Divider, Upper Basket
10
Divider, Lower Basket
11
MAY 12990513
12
MAY 12812904WD
13
MAY W10149389
14
MOUNT-GEAR (RIGHT HAND)
14
MOUNT-GEAR (LEFT HAND)
15
MAY W10146446
15
MAY W10158749
16
MAY 12804601SP
17
Brace, Crisper (2)
18
MAY W10329866
19
MAY 12204824
20
MAY W10273463
21
MAY W10251971
22
MAY W10171558
23
MAY 13062602
24
GLASS, PANTRY
25
MAY 12655902SP
26
MAY 12227305WH
27
TRACK, PANTRY
28
MAY 12656901
29
MAY 12656202
30
SLIDE, TEMPERATURE
31
ENDCAP, PANTRY (LEFT)
31
ENDCAP, PANTRY (RIGHT)
32
MAY 12990504
33
MAY W10235370
34
SCREW (2)
35
ROD, TEMPERATURE CONTROL
36
MAY 12655204V
37
MAY 12731302
38
LID, PANTRY
←
