AFD2535DEW 06 – FREEZER SHELVING

AFD2535DEW 06 – FREEZER SHELVING

Written by

in

AFD2535DEW 06 – FREEZER SHELVING

Products

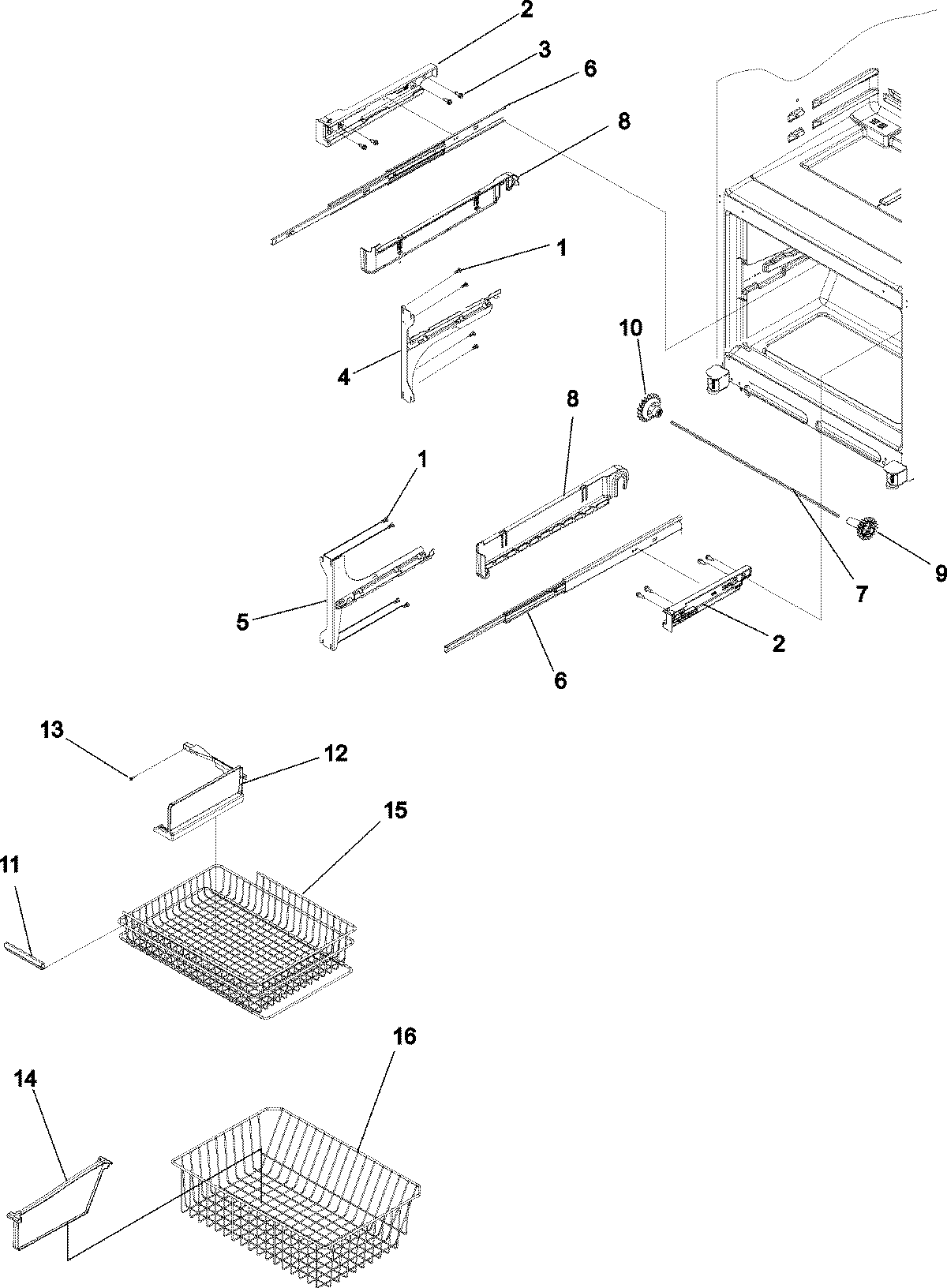

PositionProduct
1MAY M0211018
2MAY 67004218
2MAY 67004217
3SCREW 1“
4BRACKET, DRAWER SLIDE (LT)
5BRACKET, DRAWER SLIDE (RT)
6MAY 67004065
7W11028221 Whirlpool Refrigerator Shaft
8WPW10280608 Whirlpool Refrigerator Bracket
8WPW10280613 Whirlpool Refrigerator Bracket
9GEAR (LT)
10GEAR (RT)
11HANDLE, BASKET/SHELF
12Divider, Upper Basket
13MAY 67001310
14MAY 67004064
15MAY 67002765
16WPW10503184 Whirlpool Refrigerator Freezer Basket
