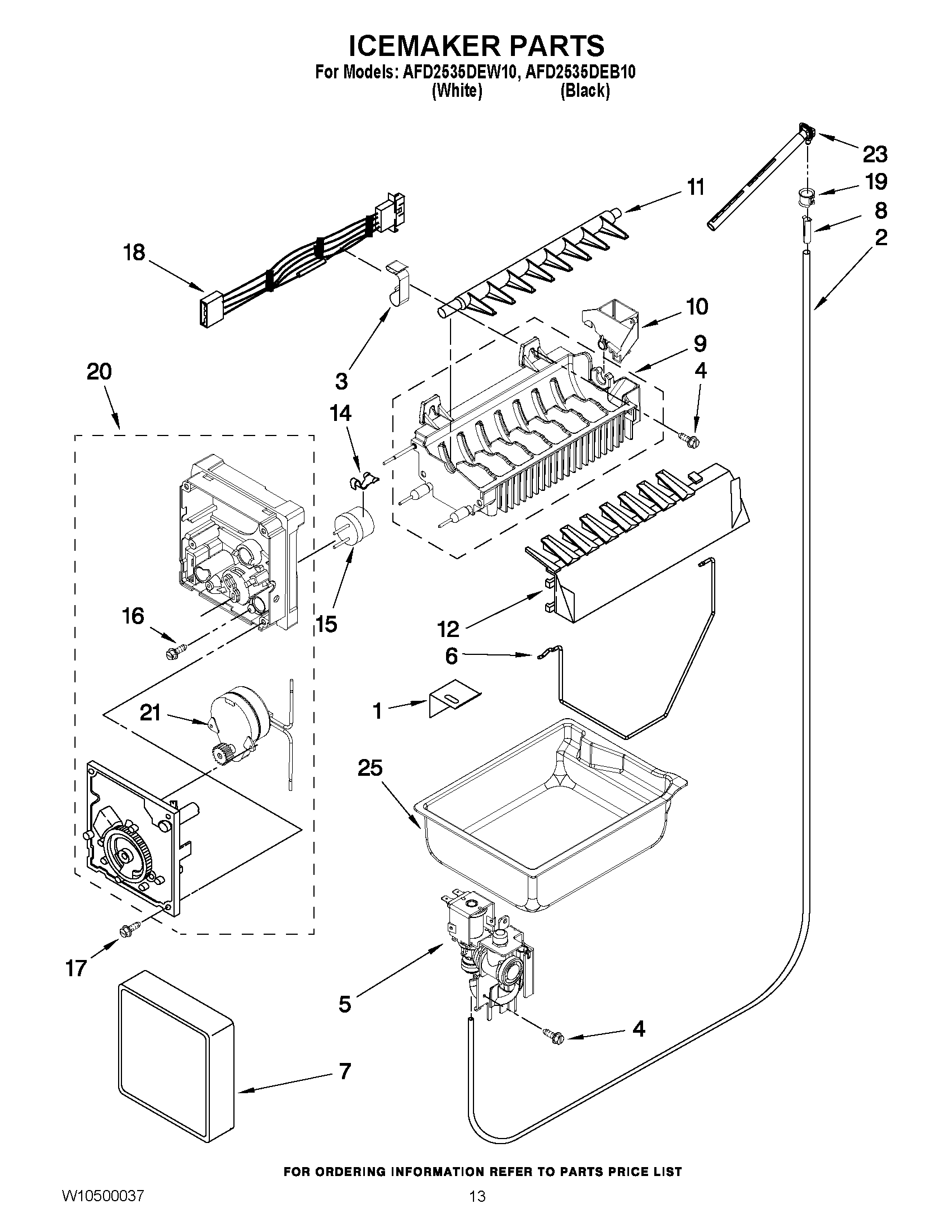

AFD2535DEW10 07 – ICEMAKER PARTSadmin2025-04-26T09:21:29+00:00AFD2535DEW10 07 – ICEMAKER PARTS ProductsPositionProduct1MAY 22560862MAY B57053333CLAMP, WIRE4Screw (3)5VALVE, WATER INLET6ARM-SHUT OFF7MAY W103771748MAY A32231019ASSEMBLY, MOLD AND HEATER10MAY W1041007311MAY W1031891412ICE STRIPPER14Clip15MAY W1029033616MAY 853391717Screw (3)18MAY W1040466119Clip20ASSEMBLY, MODULE AND MOTOR21LINER (NOT A SERVICEABLE PART)23MAY 1046320325MAY W10171529N100ASSEMBLY, ICEMAKER (COMPLETE)
