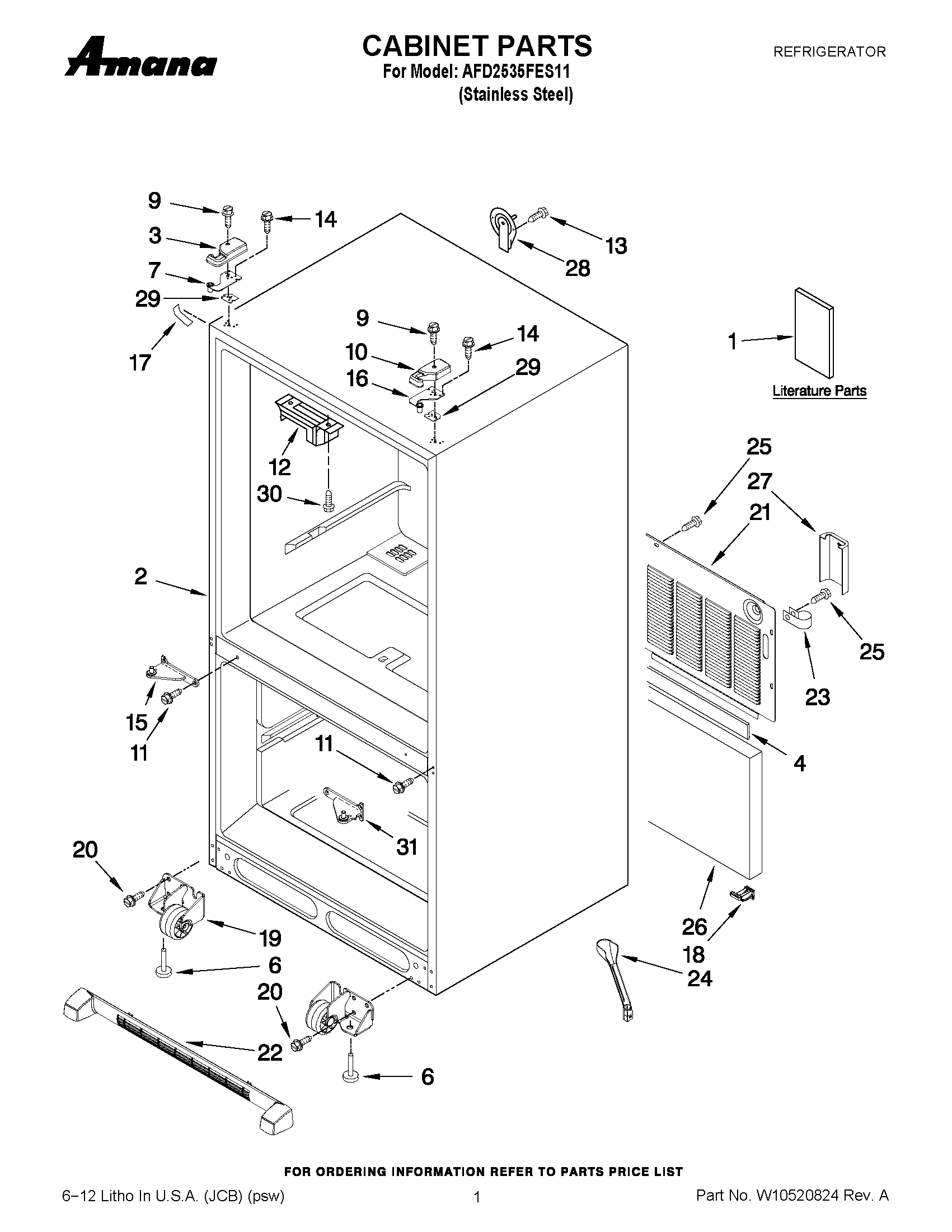

AFD2535FES11 01 – CABINET PARTS

AFD2535FES11 01 – CABINET PARTS

Written by

in

AFD2535FES11 01 – CABINET PARTS

Products

PositionProduct
1MAY W10183263
1MAY W10366212
1MAY W10475389
2LINER (NOT A SERVICEABLE PART)
3MAY 12684201B
4MAY B5759655
6Brake, Foot
7MAY 12566607ED
9MAY 12992602
10MAY 12684202B
11MAY 12990101
12Block, Pivot
13MAY 12992301
14SCREW (6)
15HINGE, CENTER (BLACK, LEFT)
16MAY 12566606ED
17COVER, CORNER (BLACK)
18MAY 12831101
19ROLLER ASSY. (FRONT) (RIGHT)
19ROLLER ASSY. (FRONT) (LEFT)
20Screw (8)
21MAY W10211855
22MAY W10244561N
23CLAMP, TUBE
24MAY W10210988
25SCREW (10)
26Insulation, Sound
27GUARD-WATER VALVE
28MAY 12726003
29MAY 12579702
30SCREW (2)
31HINGE, CENTER (BLACK, RIGHT )
