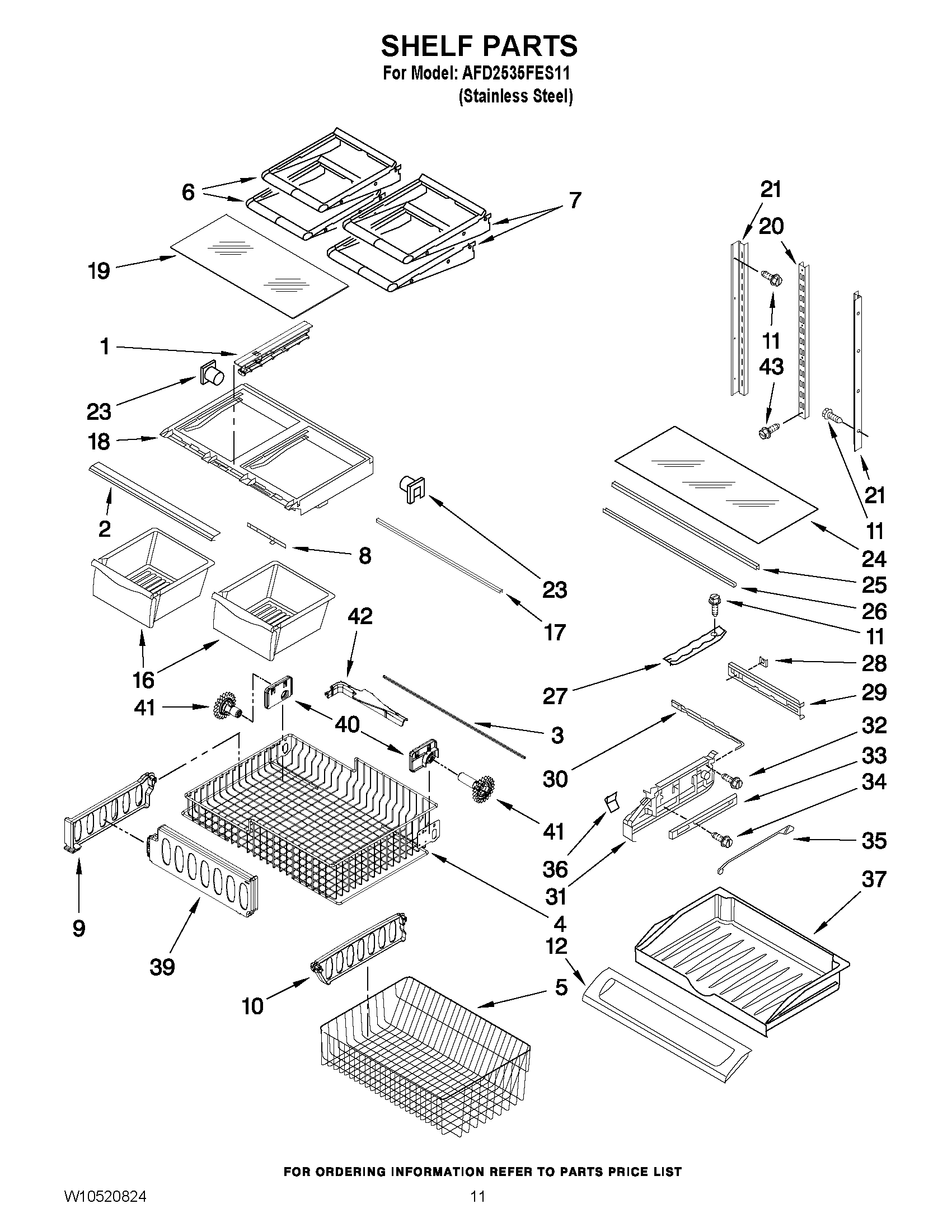

AFD2535FES11 06 – SHELF PARTS
Written by
in
AFD2535FES11 06 – SHELF PARTS
Products
Position
Product
1
RAIL, CENTER CRISPER FRAME
2
MAY W10231344N
3
MAY 12812904WD
4
MAY W10348246
5
MAY W10150039N
6
SHELF, GLIDE (4)
7
SHELF, STAT (2)
8
MAY 12530805SP
9
Divider, Upper Basket
10
DIVIDER, LOWER BASKET
11
MAY 12990513
12
LID, PANTRY
16
MAY 12724126N
17
Brace, Crisper (2)
18
MAY W10329866
19
GLASS, CRISPER COVER
20
MAY W10273463
21
MAY W10251971
23
MAY 13062602
24
GLASS, PANTRY
25
MAY 12655902SP
26
MAY 12227305WH
27
TRACK, PANTRY
28
MAY 12656901
29
MAY 12656202
30
SLIDE, TEMPERATURE
31
ENDCAP, PANTRY (LEFT)
31
ENDCAP, PANTRY (RIGHT)
32
MAY 12990504
33
MAY W10235370
34
SCREW (2)
35
ROD, TEMPERATURE CONTROL
36
KNOB, TEMP CONTROL
37
MAY 12731302
39
MAY W10171558
40
MOUNT-GEAR (RIGHT HAND)
40
MOUNT-GEAR (LEFT HAND)
41
MAY W10474716
41
MAY W10474715
42
MAY W10149389N
43
MAY W10215666
←
